FOOTREST

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

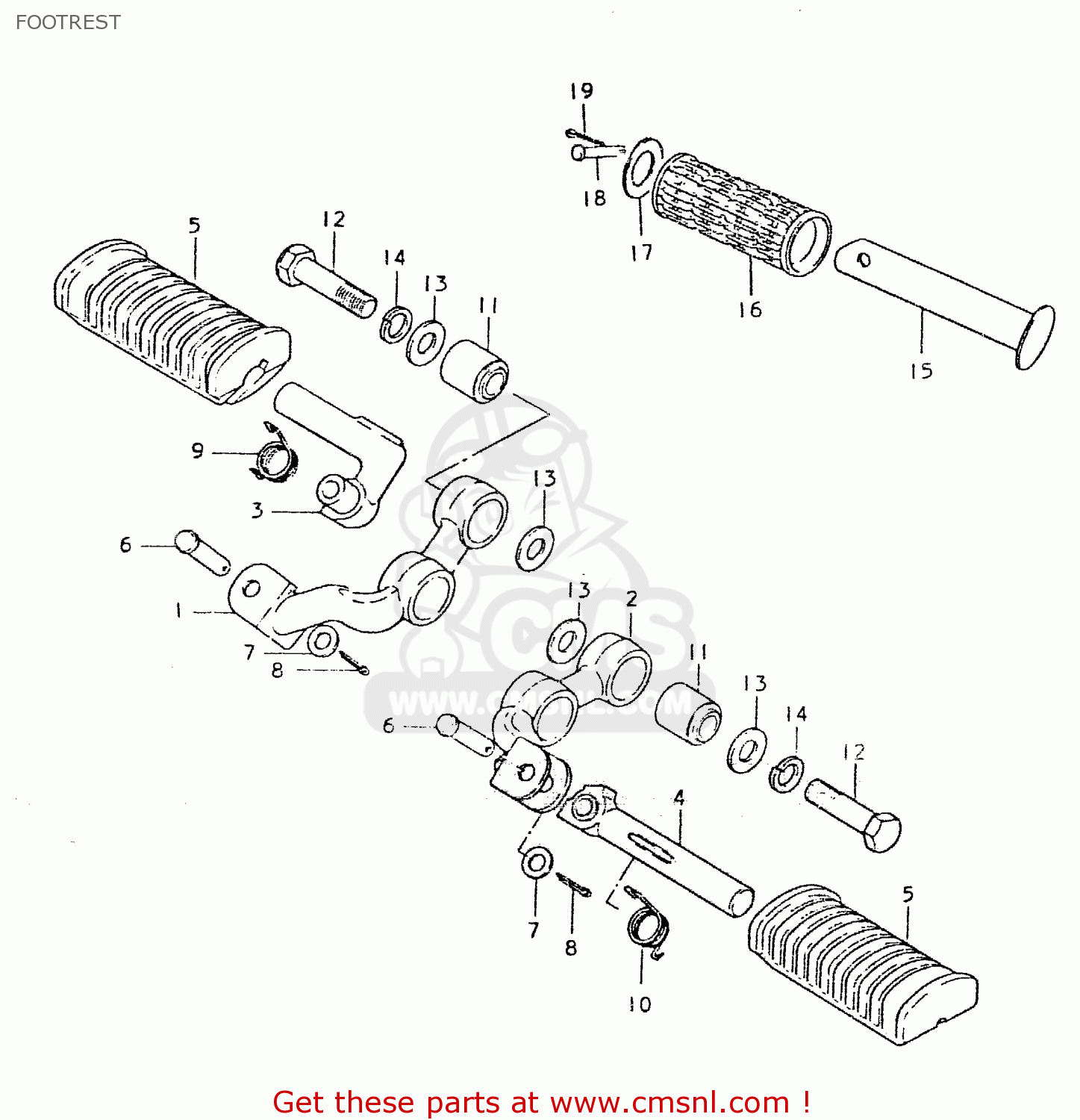

Footrest diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

4351047010019
ref: 1

BAR,FRONT FOOTREST,RIGHT

€ 28.00

4352047010019
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 24.50

4351645010
ref: 3

BAR,FRONT FOOTREST,RIGHT NO

€ 17.00

4352645010
ref: 4

BAR,FRONT FOOTREST,LEFT NO

€ 19.00

4355145010
ref: 5

RUBBER,FR FOOTREST

€ 41.50

0920008029
ref: 6

PIN

€ 3.50

0832211088
ref: 7

WASHER

€ 2.00

0411120158
ref: 8

PIN

€ 1.50

0944819010
ref: 9

SPRING

€ 3.00

0944819011
ref: 10

SPRING

€ 2.50

0931910008
ref: 11

BUSH

€ 8.00

0910410007
ref: 12

BOLT

€ 3.50

0916010013
ref: 13

WASHER (10.1X21X2.3)

€ 2.00

0832121108
ref: 14

LOCK WASHER

€ 2.00

4361044000
ref: 15

BAR,PILLION FOOTREST

€ 14.50

4361247000
ref: 16

RUBBER,REAR FOOTREST

€ 4.50

0916019006
ref: 17

WASHER (19.5X32X2)

€ 2.00

0920006010
ref: 18

PIN

€ 2.50

0411120158
ref: 19

PIN

€ 1.50
