FRONT MASTER CYLINDER

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

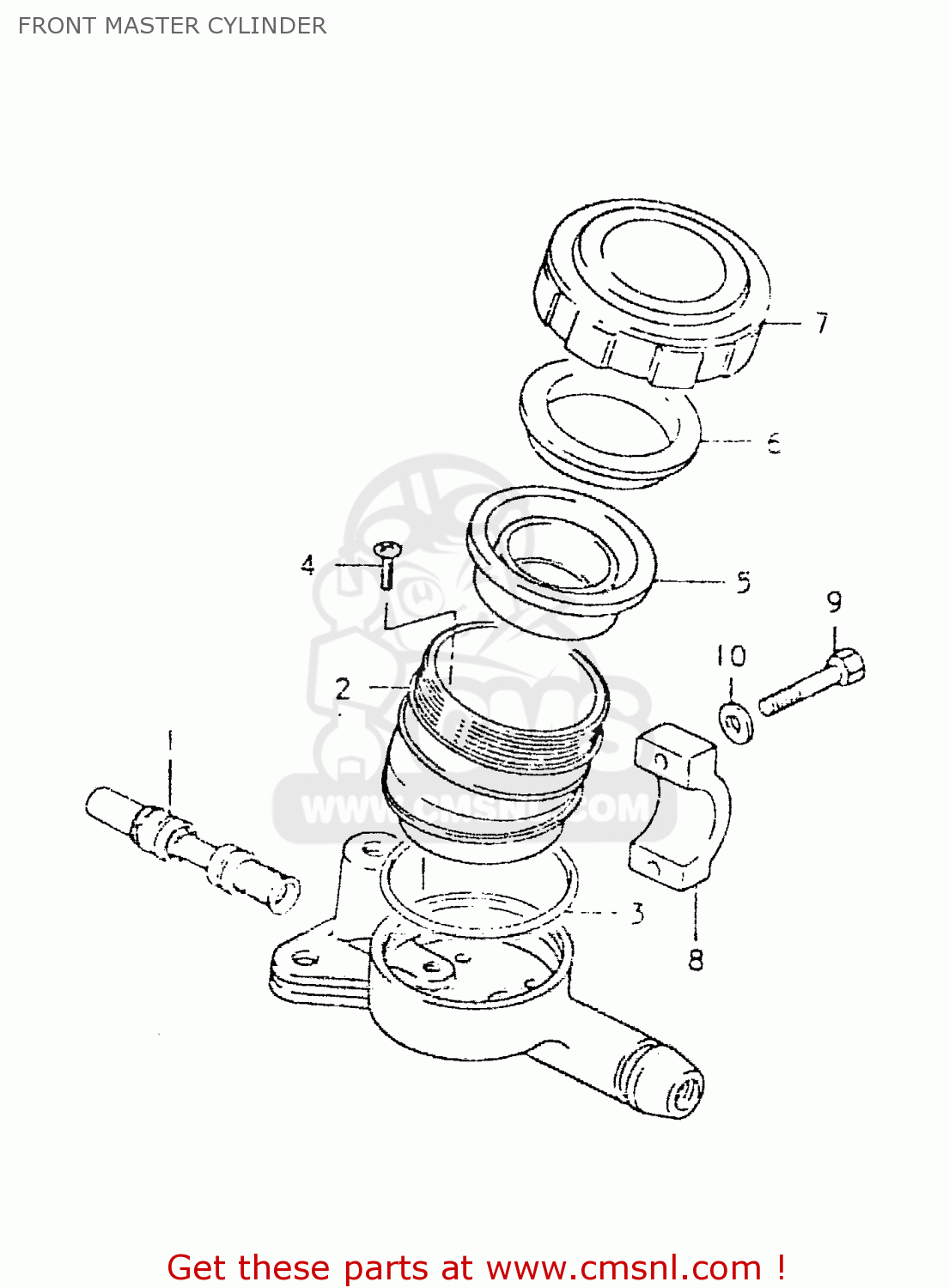

Front master cylinder diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

FRONT MASTER CYLINDER GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

FRONT MASTER CYLINDER GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

0

5960047051
ref: 0

CYLINDER ASSY, MASTER

€ 156.50

1

5960047810
ref: 1

PISTON & CUP SET

€ 33.00

2

5968747050
ref: 2

RESERVOIR

€ 22.00

3

5968633620
ref: 3

O RING

€ 6.00

4

5968833620
ref: 4

SCREW,MASTER CYLINDER

€ 1.50

5

5966733620
ref: 5

DIAPHRAGM

€ 25.00

6

5966833620
ref: 6

PLATE

€ 6.00

7

5966933621
ref: 7

CAP

€ 35.00

8

5967133620
ref: 8

HOLDER,MASTER CYLINDER

€ 5.50

9

0110706255
ref: 9

BOLT

€ 2.50

10

0832221065
ref: 10

WASHER

€ 2.00
