REAR BRAKE HOSE

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

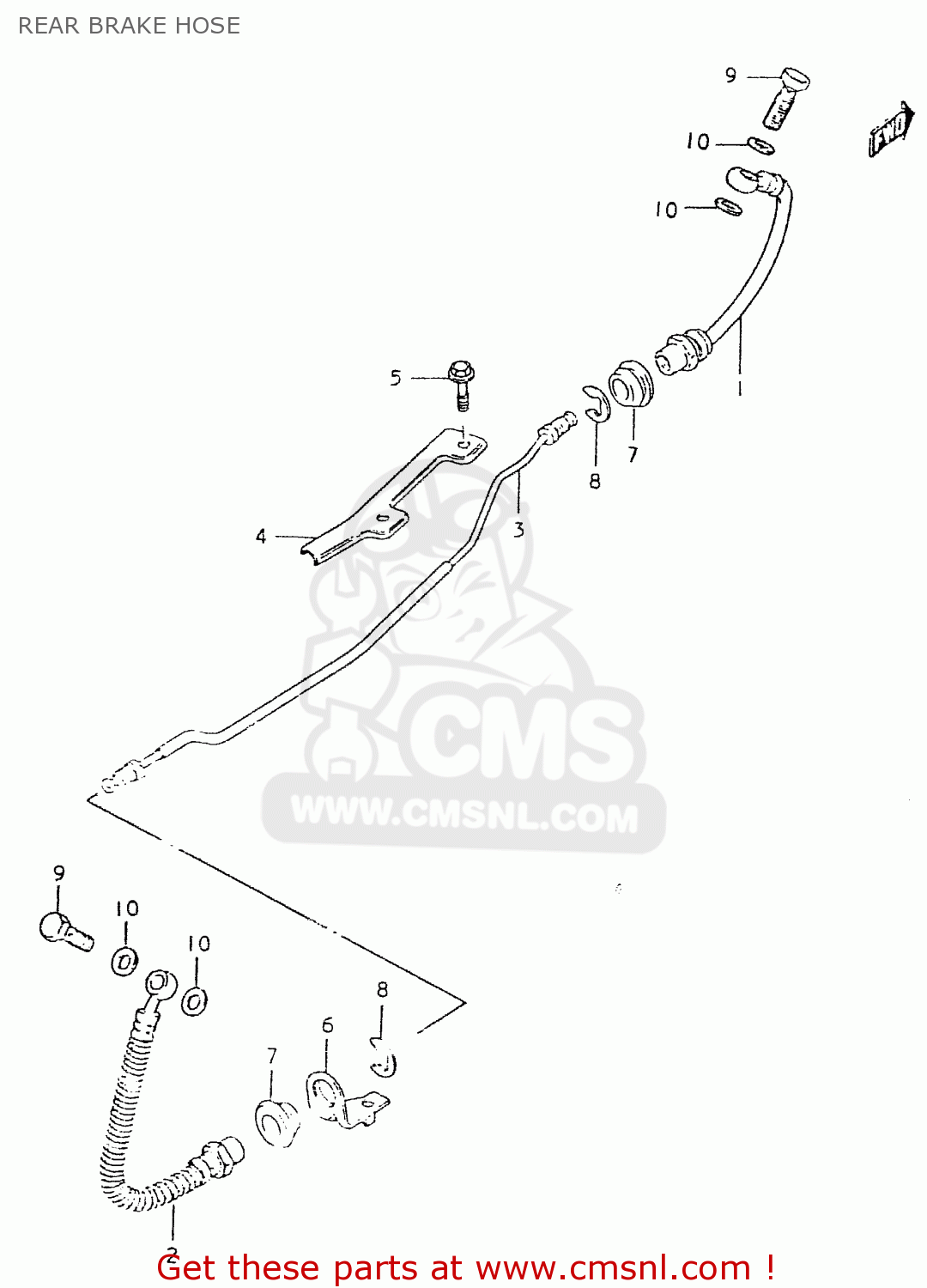

Rear brake hose diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

REAR BRAKE HOSE GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

REAR BRAKE HOSE GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

6948047001
ref: 1

HOSE,REAR BRAKE NO.1

€ 36.50

2

6924045000
ref: 2

HOSE,RR BRAKE NO.2

€ 47.00

3

6925047000
ref: 3

PIPE,REAR BRAKE

€ 19.00

4

6924545000
ref: 4

COVER,REAR BRAKE PIPE

€ 10.50

5

0151406085
ref: 5

BOLT

€ 0.00

6

6924347000
ref: 6

GUIDE,BRAKE HOSE

€ 5.50

7

5924436200
ref: 7

GROMMET,BRAKE HOSE GUIDE

€ 4.00

8

0833211098
ref: 8

E RING

€ 1.50

9

0936010007
ref: 9

BOLT,UNION

€ 6.50

10

0916110005
ref: 10

WASHER

€ 2.00
