STAND

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

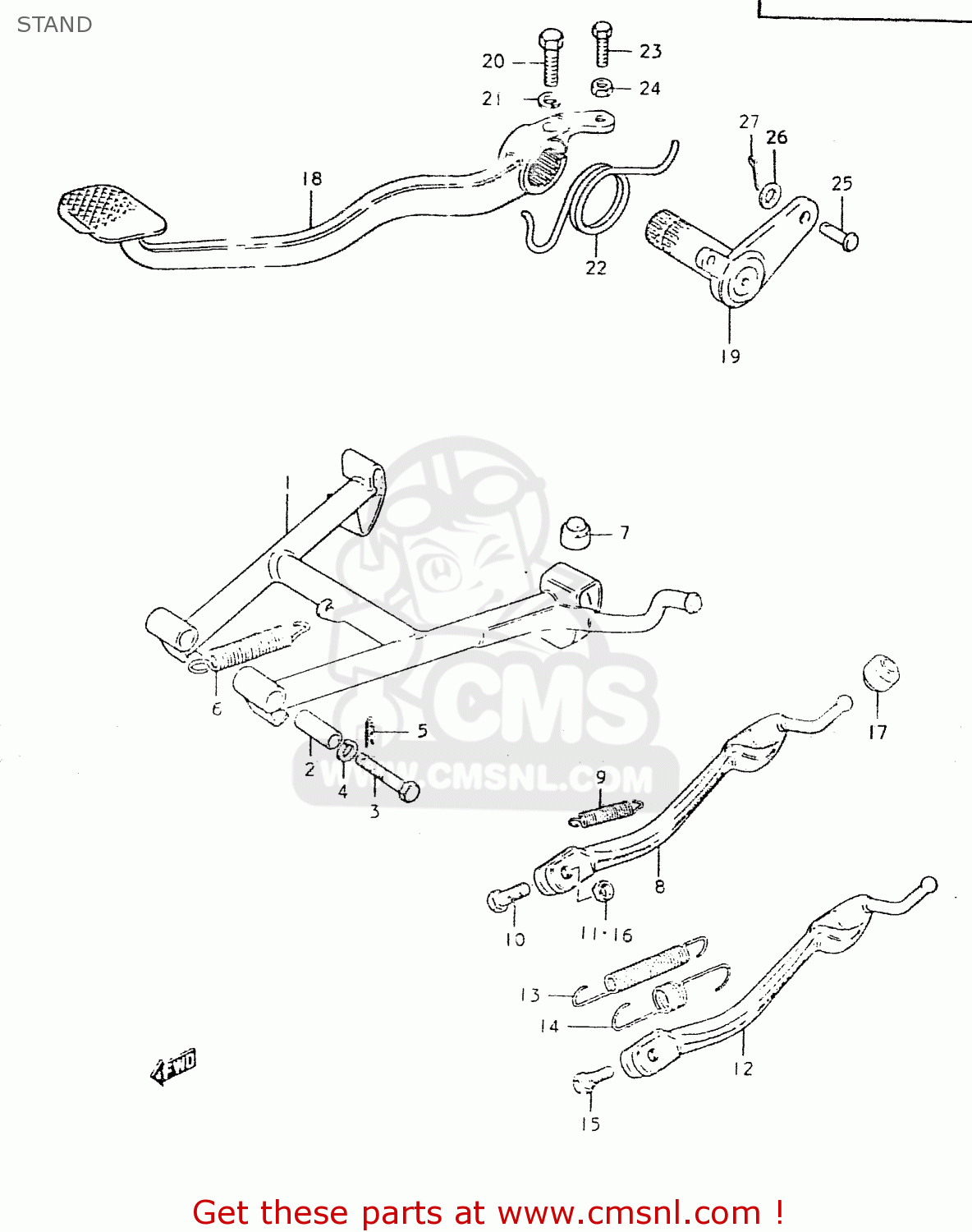

Stand diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

STAND GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
STAND GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
STAND GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
4210047200
ref: 1
STAND,CENTER
€ 0.00
1
4210047210
ref: 1
E22,E26
STAND, CENTER
€ 0.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
0918010040
€ 3.00
3
0910110018
ref: 3
BOLT
0910110018
€ 5.50
4
0832121108
ref: 4
LOCK WASHER
0832121108
€ 2.00
5
0938510001
ref: 5
CLIP
0938510001
€ 1.50
6
0944318003
ref: 6
SPRING
€ 5.50
7
0932110001
ref: 7
CUSHION
0932110001
€ 2.50
8
4231047200
ref: 8
STAND,SIDE
4231047200
€ 56.00
9
0944317005
ref: 9
SPRING
0944317005
€ 11.50
10
0910010067
ref: 10
BOLT(10X30)
0910010067
€ 3.50
11
0831022108
ref: 11
NUT
0831022108
€ 2.50
12
4231047210
ref: 12
E22,E26
STAND, PROP
4231047210
€ 66.50
13
0944311008
ref: 13
E22,E26
SPRING
0944311008
€ 5.50
14
0944319002
ref: 14
E22,E26
SPRING, OUTER
0944319002
€ 4.00
15
0911110013
ref: 15
E22,E26
BOLT
0911110013
€ 4.50
16
0831022108
ref: 16
E22,E26
NUT
0831022108
€ 2.50
17
0932007001
ref: 17
CUSHION
0932007001
€ 4.00
18
4311047000
ref: 18
PEDAL,BRAKE
4311047000
€ 60.50
19
4312047600
ref: 19
ARM,BRAKE PEDAL ROD
4312047600
€ 31.00
20
0110708258
ref: 20
BOLT
0110708258
€ 2.50
21
0832121088
ref: 21
LOCK WASHER
0832121088
€ 2.00
22
0944837002
ref: 22
SPRING
0944837002
€ 5.50
23
0110706208
ref: 23
BOLT
0110706208
€ 2.00
24
0831011068
ref: 24
NUT
0831011068
€ 2.50
25
0920006029
ref: 25
PIN
0920006029
€ 1.50
26
0832221068
ref: 26
WASHER
0832221068
€ 2.00
27
0411120158
ref: 27
PIN
0411120158
€ 1.50
