MUFFLER

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

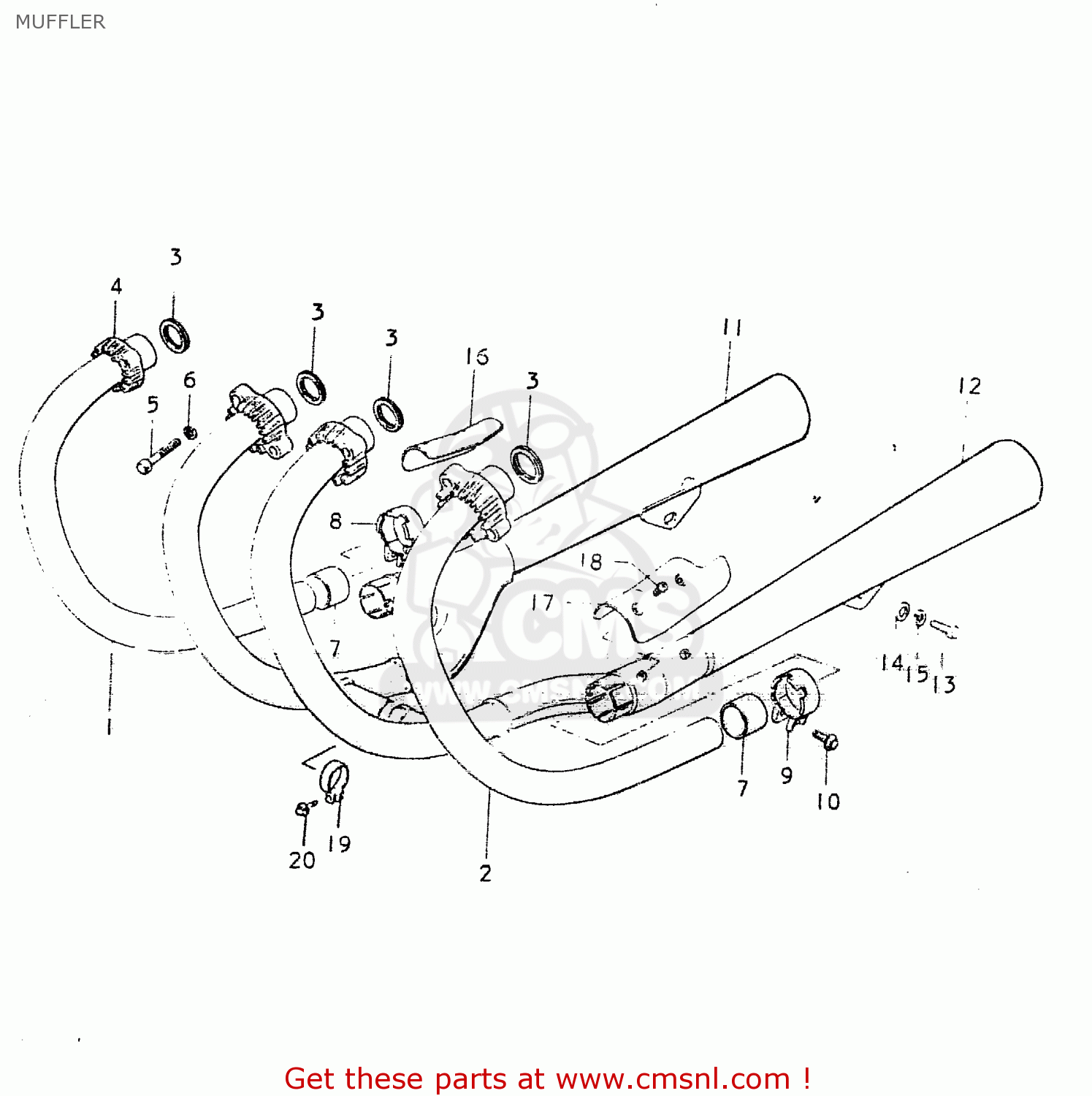

Muffler diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1415047000
ref: 1

PIPE,EXHAUST,RIGHT

€ 103.00

1416047000
ref: 2

PIPE,EXHAUST,LEFT

€ 93.50

1418103310
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 7.00

1418247000
ref: 4

CLAMP,EXHAUST PIPE

€ 27.00

0110708358
ref: 5

BOLT

€ 3.50

0832121088
ref: 6

LOCK WASHER

€ 2.00

1477147010
ref: 7

CONNECTOR,MUFFLER

€ 35.00

1445947000
ref: 8

CLAMP,MUFFLER CONNECTOR,R

€ 12.50

1446947000
ref: 9

CLAMP,MUFFLER CONNECTOR,L

€ 15.00

0151708258
ref: 10

BOLT

€ 2.50

1431047210
ref: 11

MUFFLER, RH

€ 385.00

1434047200
ref: 12

BODY,MUFFLER

€ 385.50

0110710308
ref: 13

BOLT 10X30

€ 3.00

0832221108
ref: 14

WASHER

€ 2.50

0832121108
ref: 15

LOCK WASHER

€ 2.00

1478147001
ref: 16

COVER,MUFFLER,RIGHT

€ 23.50

1479147000
ref: 17

COVER,MUFFLER,LEFT

€ 24.00

0211205068
ref: 18

SCREW

€ 4.00

1477247100
ref: 19

CLAMP,EXHAUST COUPLER

€ 3.50

0151706208
ref: 20

BOLT,REAR

€ 2.50
