FRAME

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

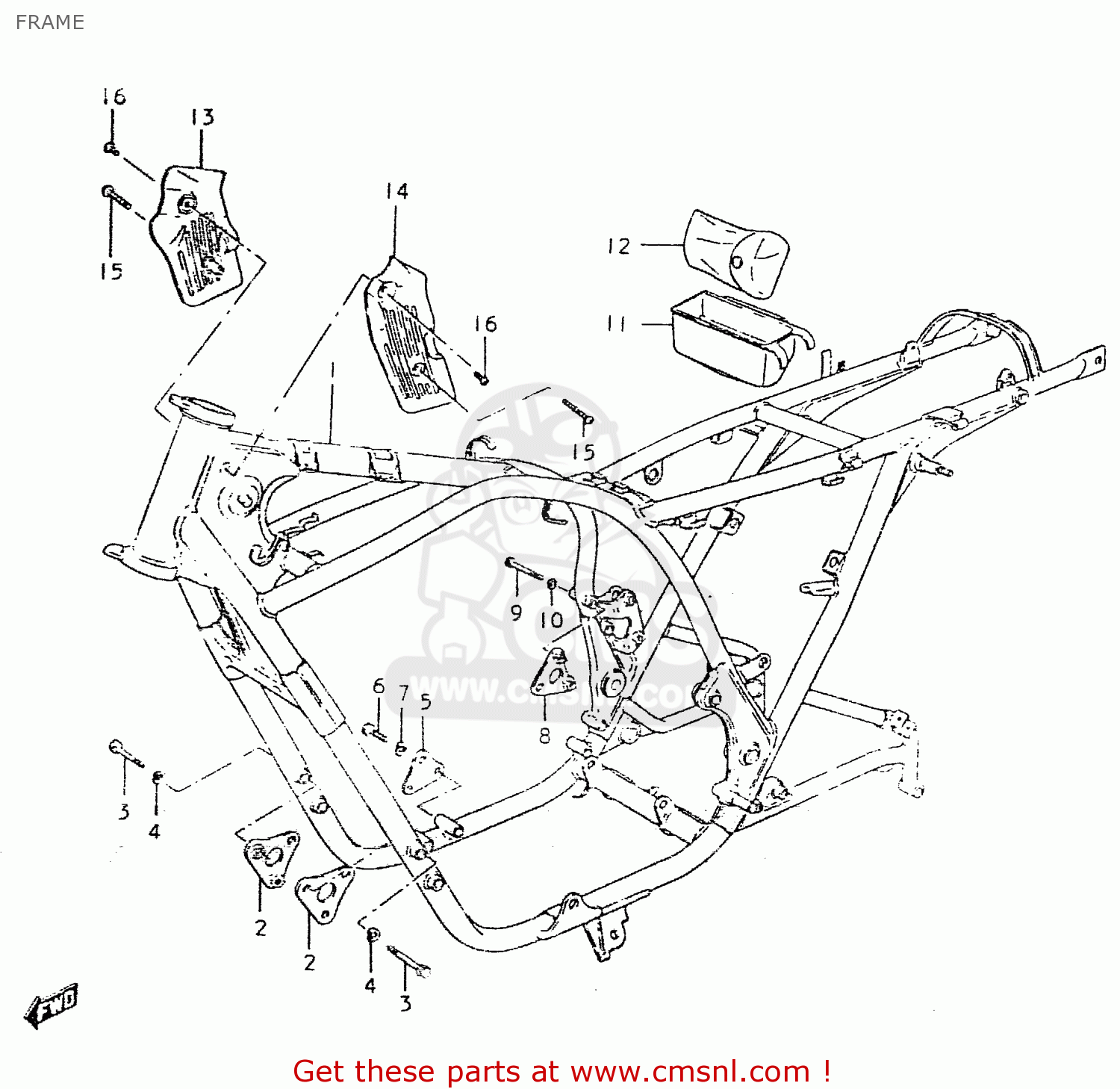

Frame diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

4110047201019
ref: 1

FRAME

€ 0.00

4110047211019
ref: 1
E22,E26

FRAME (BLACK)

€ 0.00

4110047221019
ref: 1
E34

FRAME (BLACK)

€ 0.00

4191047000019
ref: 2

PLATE,ENGINE MOUNTING

€ 8.50

0110708608
ref: 3

BOLT

€ 2.50

0832121088
ref: 4

LOCK WASHER

€ 2.00

4199347000019
ref: 5

PLATE,ENGINE MOUNTING

€ 7.50

0110708208
ref: 6

BOLT

€ 3.00

0832121088
ref: 7

LOCK WASHER

€ 2.00

4199047000019
ref: 8

PLATE,ENGINE MOUNTING

€ 8.00

0110708558
ref: 9

BOLT 8X55

€ 3.00

0832121088
ref: 10

LOCK WASHER

€ 2.00

4155147000
ref: 11

HOLDER,TOOL

€ 0.00

0980000811
ref: 12

TOOL ASSY

€ 52.00

5187645200
ref: 13

COVER,FRAME HEAD,RIGHT

€ 5.50

5188645200
ref: 14

COVER,FRAME HEAD,LEFT

€ 6.50

0214205505
ref: 15

SCREW, LOWER

€ 2.00

0214205105
ref: 16

SCREW

€ 2.50
