FRAME COVER

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

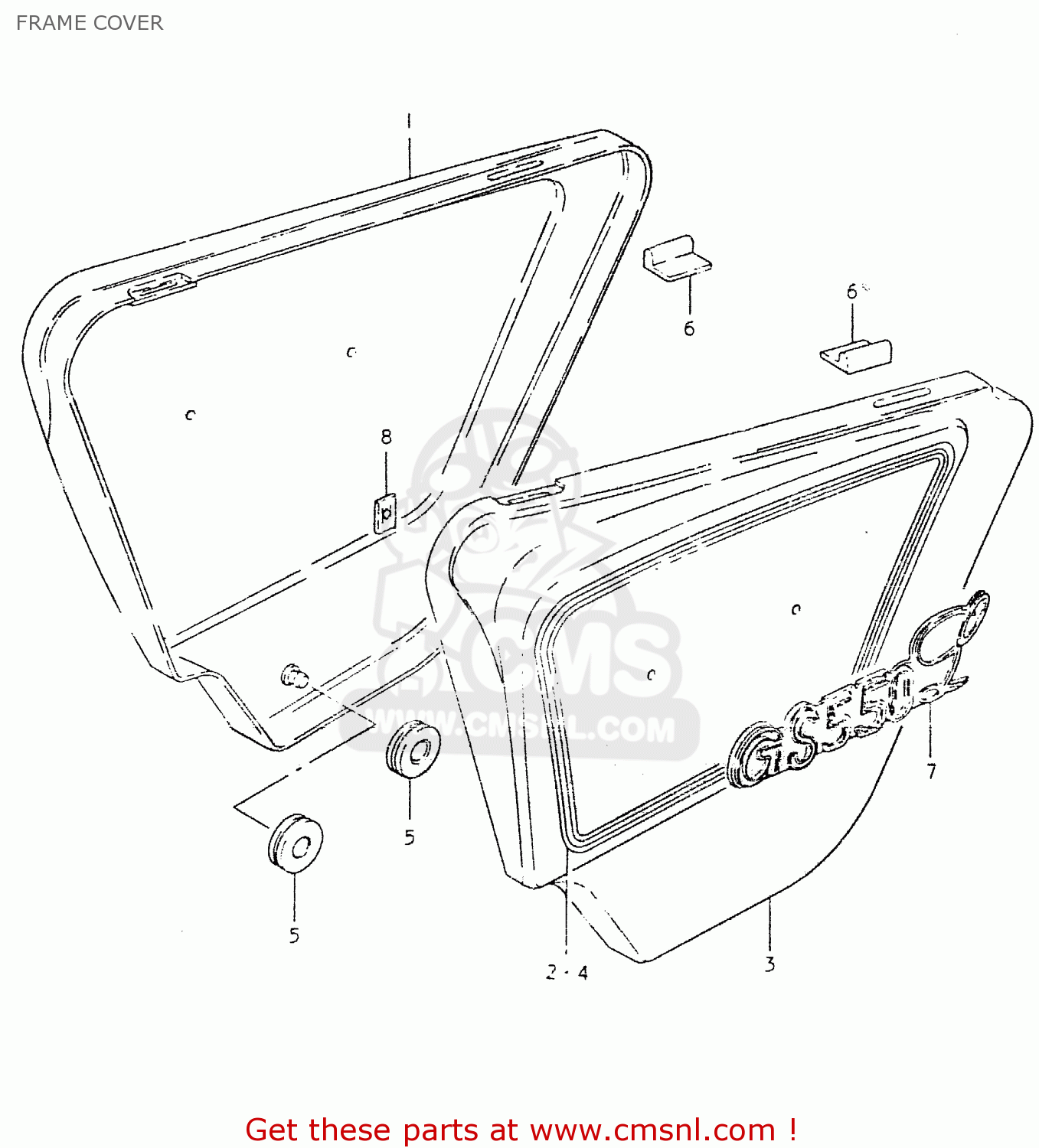

Frame cover diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

FRAME COVER GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

FRAME COVER GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

4711147200019
ref: 1

COVER,FRAME,RIGHT

€ 44.50

1

471114720008H
ref: 1

COVER,FRAME,RIGHT

€ 44.50

2

681304720066Y
ref: 2

TAPE SET,FRAME COVER

€ 22.50

3

4721147200019
ref: 3

COVER,FRAME,LEFT

€ 40.00

3

472114720008H
ref: 3

COVER,FRAME,LEFT

€ 40.00

4

681404720066Y
ref: 4

TAPE SET,FRAME COVER

€ 0.00

5

0932008018
ref: 5

CUSHION

€ 4.00

6

4711745000
ref: 6

CUSHION,FRAME COVER

€ 1.50

7

6813147200
ref: 7

EMBLEM

€ 32.50

8

0914803002
ref: 8

NUT

€ 3.00
