REAR SWINGING ARM

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

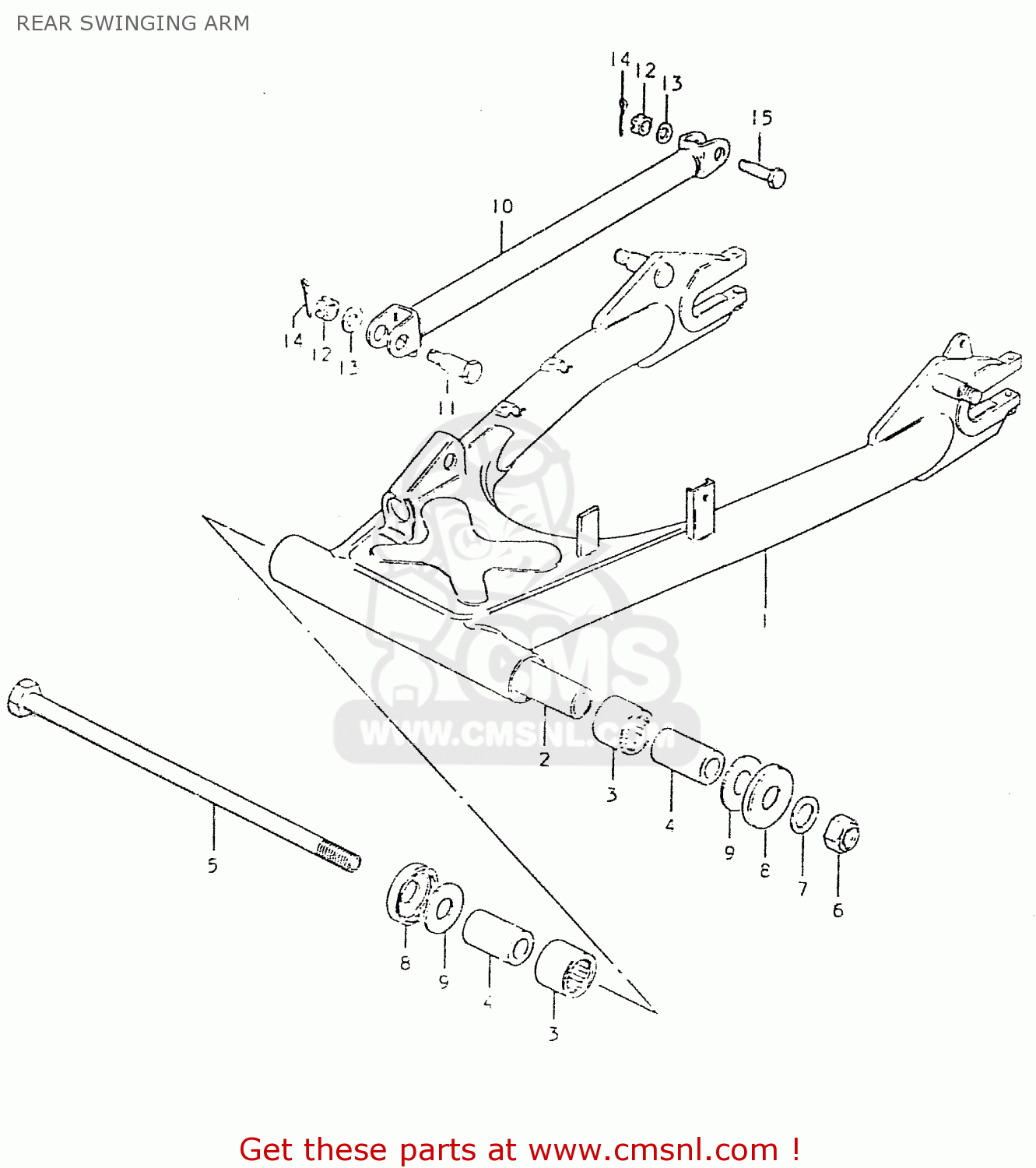

Rear swinging arm diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

6110047830019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 109.00

6128145001
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 19.50

0926322017
ref: 3

BEARING(22X29X30)

€ 18.50

6125145001
ref: 4

SPACER,RR SWGARM PIVOT

€ 12.50

6121131001
ref: 5

SHAFT,REAR SWING ARM

€ 62.50

0831921148
ref: 6

NUT 14MM

€ 3.00

0832211148
ref: 7

WASHER

€ 2.00

6126245003
ref: 8
TO 61262-45002

COVER,REAR SWING ARM DUST

€ 4.50

0916014020
ref: 9

WASHER(14.2X34X1)

€ 2.50

6431049000019
ref: 10

LINK,REAR TORQUE

€ 16.00

0911110011
ref: 11

BOLT

€ 8.00

0831441108
ref: 12

NUT

€ 2.50

0832211108
ref: 13

WASHER

€ 2.50

0411120208
ref: 14

PIN 20X20

€ 1.50

0910110017
ref: 15

BOLT(10X39)

€ 5.00
