SEAT

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

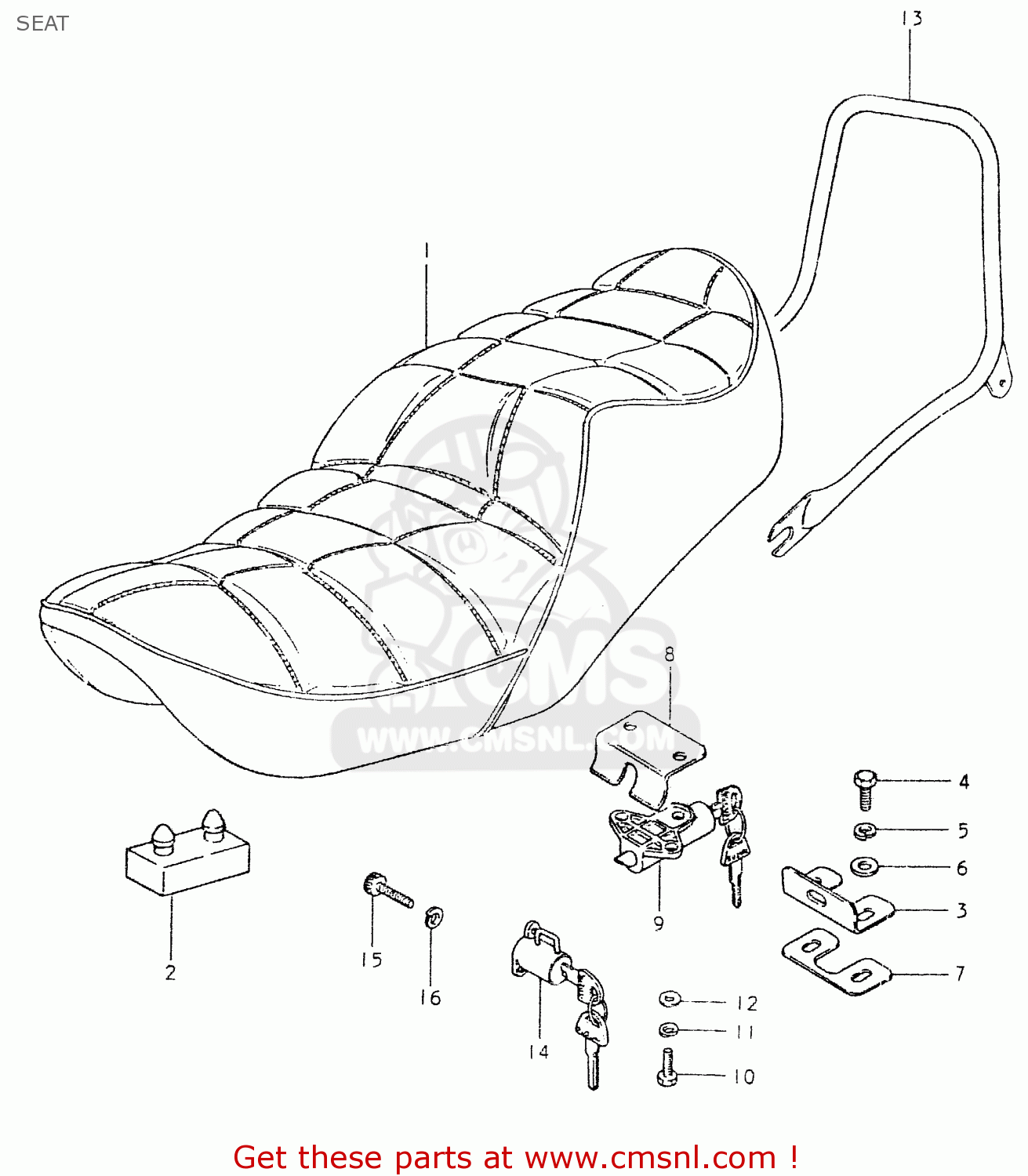

Seat diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

451004721043U
ref: 1

SEAT (BLACK)

€ 147.00

451004722043U
ref: 1
E39

SEAT ASSEMBLY

€ 147.00

0932108006
ref: 2

CUSHION

€ 3.00

4521347200
ref: 3

STRIKER,SEAT LOCK

€ 5.50

0110706168
ref: 4

BOLT, UPPER

€ 3.00

0832121068
ref: 5

LOCK WASHER

€ 2.50

0832211068
ref: 6

WASHER 6MM

€ 2.00

4521747200
ref: 7

SHIM,SEAT LOCK STRIKER

€ 1.50

4521449105
ref: 8

PLATE,SEAT LOCK

€ 13.00

9570047810
ref: 9

LOCK ASSEMBLY,SEAT

€ 61.50

0110706208
ref: 10

BOLT

€ 2.00

0832121068
ref: 11

LOCK WASHER

€ 2.50

0832211068
ref: 12

WASHER 6MM

€ 2.00

4621047205
ref: 13

HANDLE,PILLION RIDER

€ 83.00

9570035821
ref: 14

LOCK ASSEMBLY,HELMET

€ 57.50

0910606024
ref: 15

BOLT 6X11

€ 2.50

0832121068
ref: 16

LOCK WASHER

€ 2.50
