RIGHT HANDLE SWITCH

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

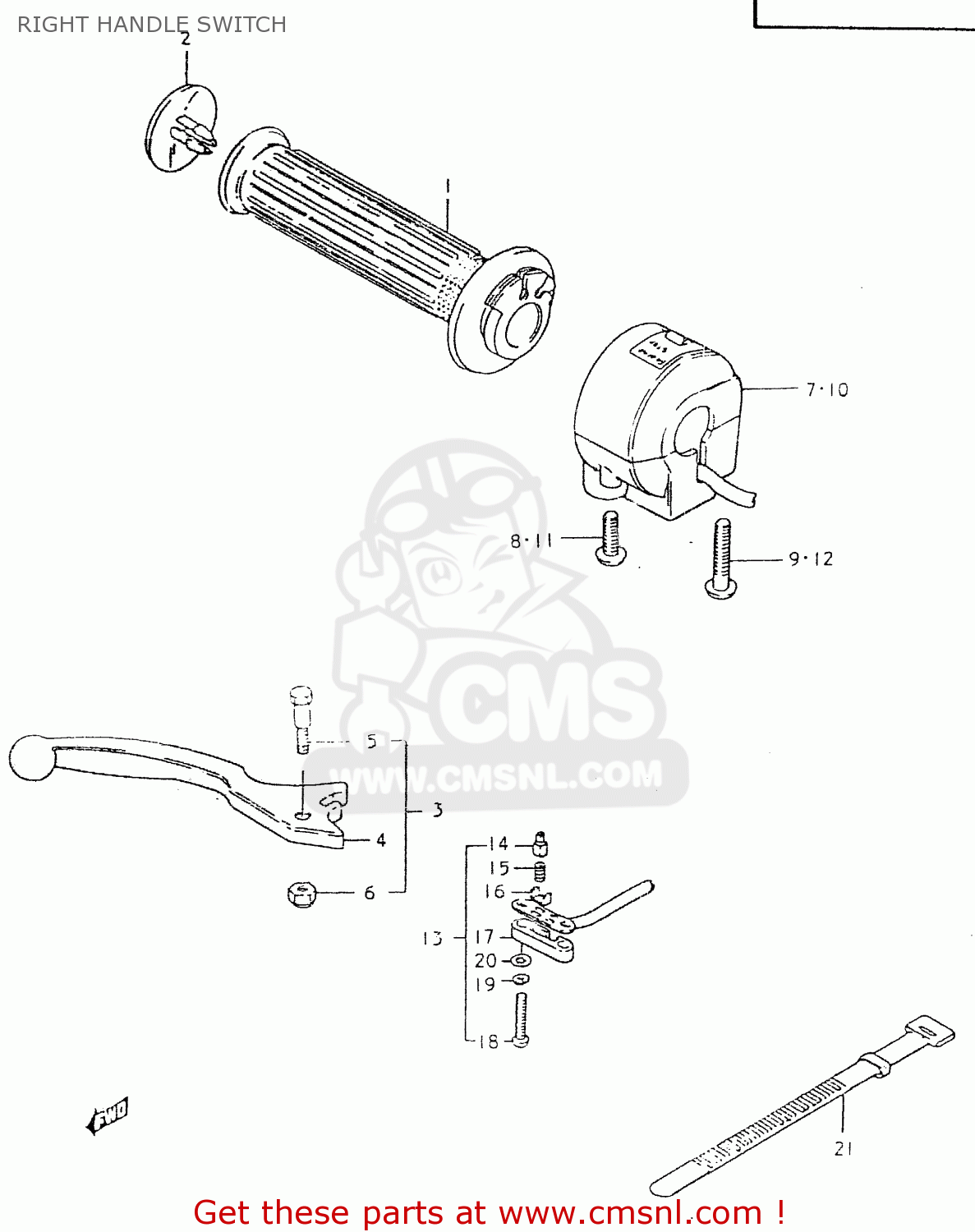

Right handle switch diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

RIGHT HANDLE SWITCH GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
RIGHT HANDLE SWITCH GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
RIGHT HANDLE SWITCH GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
5711044011
ref: 1
GRIP,THROTTLE
5711044011
€ 33.00
2
5721549100
ref: 2
CAP,GRIP END
5721549100
€ 3.50
3
5730049101
ref: 3
LEVER ASSEMBLY,BRAKE
€ 36.50
4
5742049101
ref: 4
FROM 57420-49100
LEVER,BRAKE
5742049101
€ 36.50
5
5743118621
ref: 5
BOLT
5743118621
€ 8.00
6
0831921068
ref: 6
NUT 6MM
0831921068
€ 2.00
7
3720045210
ref: 7
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 108.50
8
0211205258
ref: 8
SCREW
0211205258
€ 2.00
9
0211205358
ref: 9
SCREW
€ 1.50
10
3720045220
ref: 10
E2,E4,E21,E22,E25,E2
SWITCH ASSY, HANDLE RH
3720045220
€ 118.50
11
0211205258
ref: 11
E2,E4,E21,E22,E25,E2
SCREW
0211205258
€ 2.00
12
0211205358
ref: 12
E2,E4,E21,E22,E25,E2
SCREW
€ 1.50
13
5746049100
ref: 13
E4,E22,E24,E25,E26,E
SWITCH ASSEMBLY
€ 40.00
14
5746118600
ref: 14
E4,E22,E24,E25,E26,E
HOLDER
€ 4.50
15
5746218600
ref: 15
E4,E22,E24,E25,E26,E
SPRING
€ 4.50
16
5746318600
ref: 16
E4,E22,E24,E25,E26,E
PLATE
5746318600
€ 4.50
17
5748133010
ref: 17
E4,E22,E24,E25,E26,E
COVER,FR BK TERMINAL BASE
5748133010
€ 19.50
18
0912503105
ref: 18
E4,E22,E24,E25,E26,E
SCREW
0912503105
€ 2.50
19
0832121038
ref: 19
E4,E22,E24,E25,E26,E
LOCK WASHER
€ 1.50
20
0832221038
ref: 20
E4,E22,E24,E25,E26,E
WASHER
0832221038
€ 2.00
21
0940712402
ref: 21
CLAMP(L:120)
0940712402
€ 3.00
