LEFT HANDLE SWITCH

GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

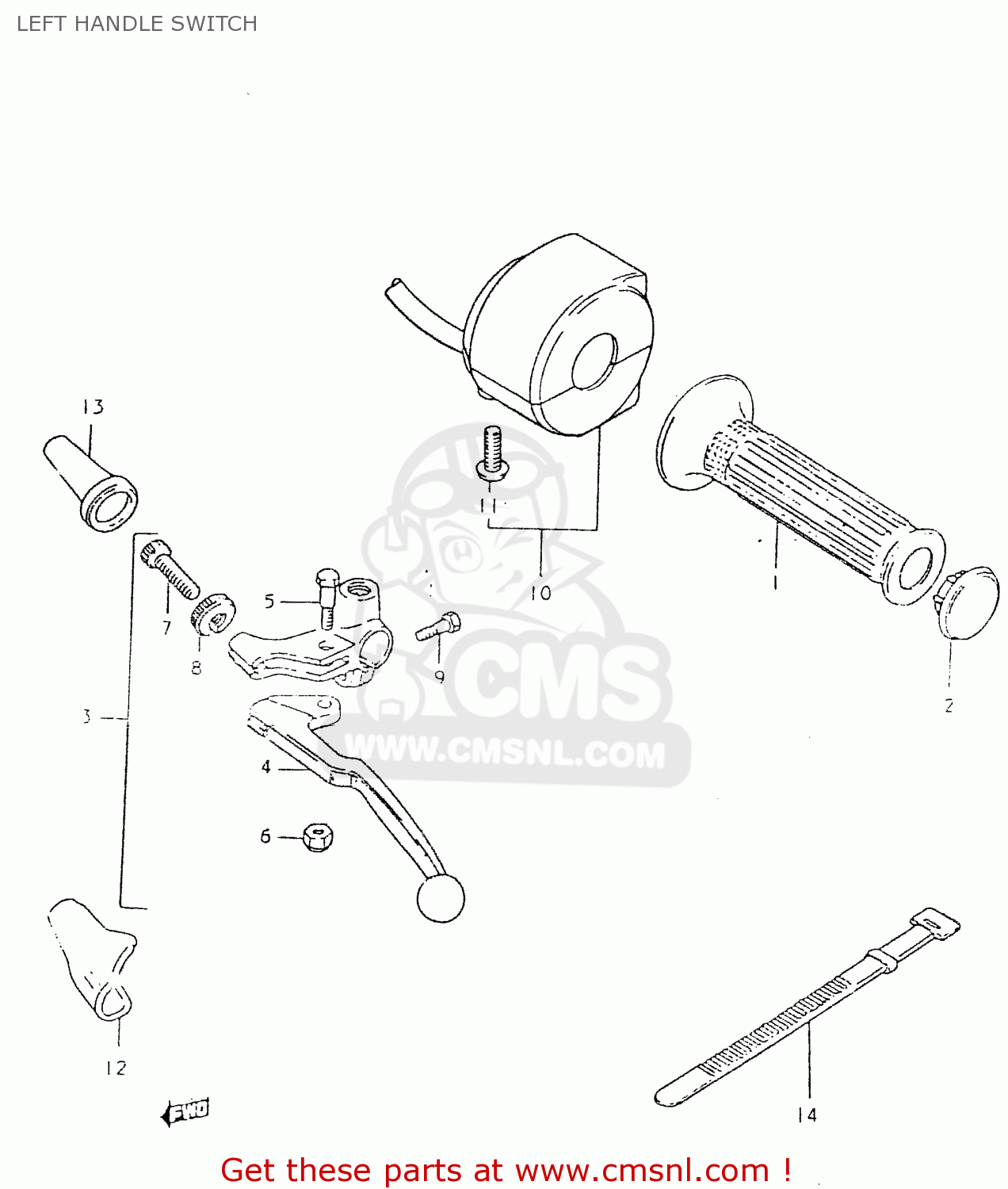

Left handle switch diagram GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

LEFT HANDLE SWITCH GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

LEFT HANDLE SWITCH GS550L 1980 (T) (E01 E02 E04 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

5721144100
ref: 1

GRIP,LEFT

€ 9.00

2

5721649100
ref: 2

CAP,GRIP END

€ 3.50

3

5750049101
ref: 3

LEVER ASSY, CLUTCH

€ 49.50

4

5762049101
ref: 4

LEVER,CLUTCH

€ 28.50

5

5743111011
ref: 5

BOLT,LEVER

€ 6.00

6

0831921068
ref: 6

NUT 6MM

€ 2.00

7

5744111010
ref: 7

ADJUSTER,CABLE

€ 8.00

8

5744211010
ref: 8

NUT,CABLE ADJUSTER

€ 4.00

9

0110706208
ref: 9

BOLT

€ 2.00

10

3740045210
ref: 10

SWITCH ASSY, HANDLE LH

€ 161.00

11

0211205258
ref: 11

SCREW

€ 2.00

12

5766131000
ref: 12

COVER,CLUTCH LEVER

€ 5.50

13

5827331000
ref: 13

BOOT,CLUTCH CABLE

€ 2.50

14

0940712402
ref: 14

CLAMP(L:120)

€ 3.00
