CAMSHAFT/VALVE
GSX1300R HAYABUSA 2011 (L1) USA (E03)

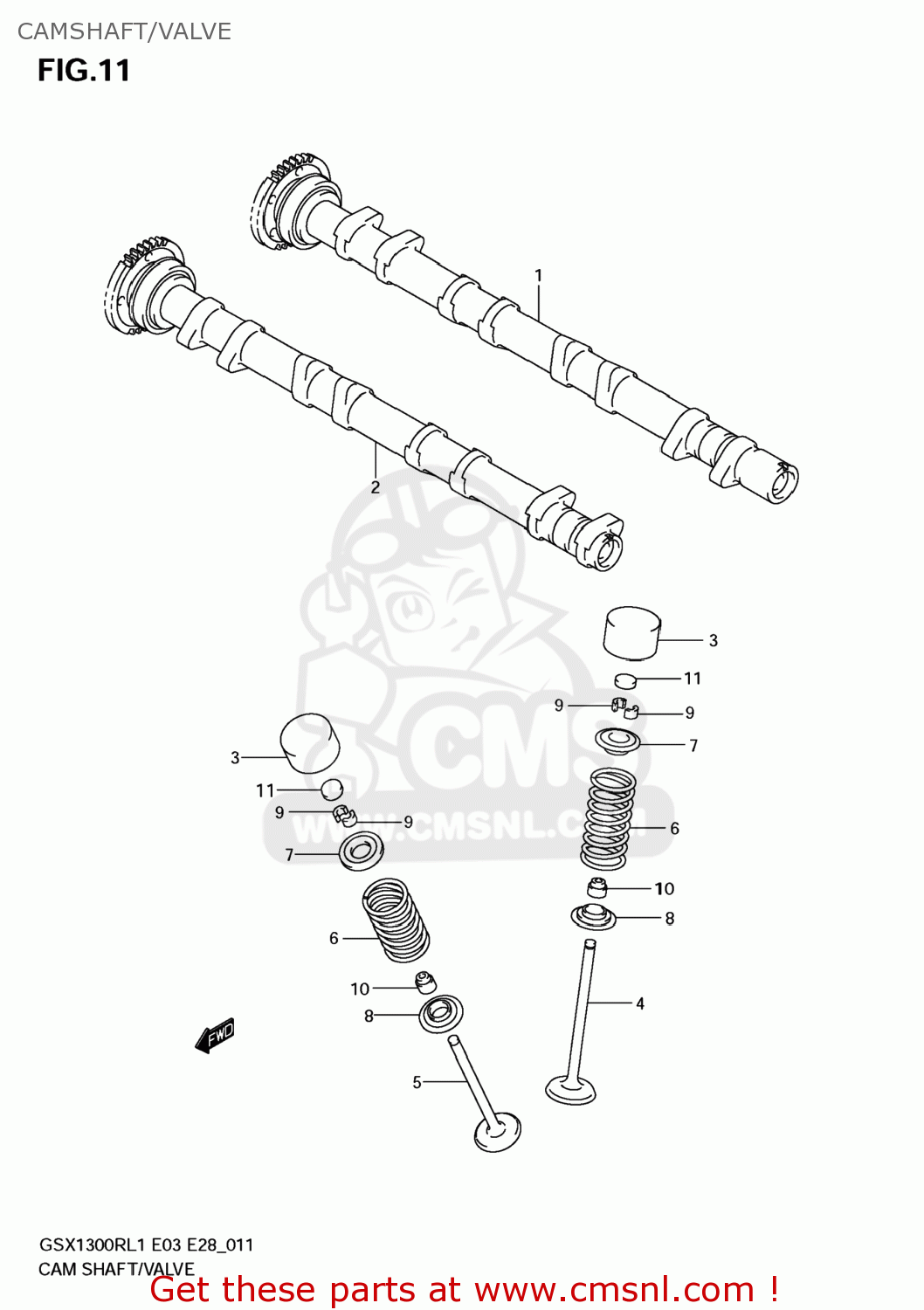

Camshaft/valve diagram GSX1300R HAYABUSA 2011 (L1) USA (E03)
CAMSHAFT/VALVE GSX1300R HAYABUSA 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271015H00
ref: 1
CAMSHAFT,INTAKE
€ 408.00
2
1272015H00
ref: 2
CAMSHAFT,EXHAUST
€ 408.00
3
1289102F00
ref: 3
TAPPET
€ 42.50
4
1291115H00
ref: 4
VALVE,INTAKE
€ 60.00
5
1291215H00
ref: 5
VALVE,EXHAUST
€ 95.50
6
1292115H00
ref: 6
SPRING,VALVE
€ 12.00
7
1293102F10
ref: 7
RETAINER,VALVE SPRING
€ 13.00
8
1293338400
ref: 8
SEAT,VALVE SPRING
€ 4.50
9
1293224F00
ref: 9
COTTER VALVE
€ 2.00
10
0928905011
ref: 10
SEAL,OIL(5X10X9.7)
€ 6.00
11-1
1289241C00230
ref: 11-1
SHIM,TAPPET(T:2.3)
€ 7.50
11-10
1289241C00252
ref: 11-10
SHIM,TAPPET
€ 7.00
11-11
1289241C00255
ref: 11-11
SHIM,TAPPET(T:2.55)
€ 7.50
11-12
1289241C00258
ref: 11-12
SHIM,TAPPET
€ 7.00
11-13
1289241C00260
ref: 11-13
SHIM,TAPPET(T:2.6)
€ 8.00
11-14
1289241C00262
ref: 11-14
SHIM,TAPPET
€ 7.00
11-15
1289241C00265
ref: 11-15
SHIM,TAPPET(T:2.65)
€ 7.00
11-16
1289241C00268
ref: 11-16
SHIM,TAPPET
€ 7.00
11-17
1289241C00270
ref: 11-17
SHIM,TAPPET(T:2.7)
€ 8.00
11-18
1289241C00272
ref: 11-18
SHIM,TAPPET
€ 7.00
11-19
1289241C00275
ref: 11-19
SHIM,TAPPET(T:2.75)
€ 7.50
11-2
1289241C00232
ref: 11-2
SHIM,TAPPET
€ 7.00
11-20
1289241C00278
ref: 11-20
SHIM,TAPPET
€ 7.00
11-21
1289241C00280
ref: 11-21
SHIM,TAPPET(T:2.8)
€ 7.50
11-22
1289241C00282
ref: 11-22
SHIM,TAPPET
€ 7.50
11-23
1289241C00285
ref: 11-23
SHIM,TAPPET(T:2.85)
€ 7.50
11-24
1289241C00288
ref: 11-24
SHIM,TAPPET
€ 7.50
11-25
1289241C00290
ref: 11-25
SHIM,TAPPET(T:2.9)
€ 7.50
11-26
1289241C00292
ref: 11-26
SHIM,TAPPET
€ 7.00
11-27
1289241C00295
ref: 11-27
SHIM,TAPPET(T:2.95)
€ 7.00
11-28
1289241C00298
ref: 11-28
SHIM,TAPPET
€ 7.00
11-29
1289241C00300
ref: 11-29
SHIM,TAPPET(T:3.0)
€ 7.00
11-3
1289241C00235
ref: 11-3
SHIM,TAPPET(T:2.35)
€ 7.00
11-30
1289241C00302
ref: 11-30
SHIM,TAPPET
€ 9.50
11-31
1289241C00305
ref: 11-31
SHIM,TAPPET(T:3.05)
€ 7.50
11-32
1289241C00308
ref: 11-32
SHIM,TAPPET
€ 9.50
11-33
1289241C00310
ref: 11-33
SHIM,TAPPET(T:3.1)
€ 7.50
11-34
1289241C00312
ref: 11-34
SHIM,TAPPET
€ 9.50
11-35
1289241C00315
ref: 11-35
SHIM,TAPPET(T:3.15)
€ 7.50
11-36
1289241C00318
ref: 11-36
SHIM,TAPPET
€ 9.50
11-37
1289241C00320
ref: 11-37
SHIM,TAPPET(T:3.2)
€ 7.50
11-38
1289241C00322
ref: 11-38
SHIM,TAPPET
€ 9.50
11-39
1289241C00325
ref: 11-39
SHIM,TAPPET(T:3.25)
€ 7.00
11-4
1289241C00238
ref: 11-4
SHIM,TAPPET
€ 7.00
11-40
1289241C00328
ref: 11-40
SHIM,TAPPET
€ 9.50
11-41
1289241C00330
ref: 11-41
SHIM,TAPPET(T:3.3)
€ 7.00
11-42
1289241C00332
ref: 11-42
SHIM,TAPPET
€ 9.50
11-43
1289241C00335
ref: 11-43
SHIM,TAPPET(T:3.35)
€ 7.00
11-44
1289241C00338
ref: 11-44
SHIM,TAPPET
€ 9.50
11-45
1289241C00340
ref: 11-45
SHIM,TAPPET(T:3.4)
€ 7.00
11-46
1289241C00342
ref: 11-46
SHIM,TAPPET
€ 9.50
11-47
1289241C00345
ref: 11-47
SHIM,TAPPET(T:3.45)
€ 7.00
11-48
1289241C00348
ref: 11-48
SHIM,TAPPET
€ 9.50
11-49
1289241C00350
ref: 11-49
SHIM,TAPPET(T:3.5)
€ 7.00
11-5
1289241C00240
ref: 11-5
SHIM,TAPPET(T:2.4)
€ 7.00
11-6
1289241C00242
ref: 11-6
SHIM,TAPPET
€ 7.00
11-7
1289241C00245
ref: 11-7
SHIM,TAPPET(T:2.45)
€ 7.00
11-8
1289241C00248
ref: 11-8
SHIM,TAPPET
€ 7.50
11-9
1289241C00250
ref: 11-9
SHIM,TAPPET(T:2.5)
€ 7.00
12
1280041810
ref: 12
SHIM SET,TAPPET
€ 793.00
12
1280041810
ref: 12
SHIM SET,TAPPET
€ 793.00
13
9900069471
ref: 13
CASE,TAPPET SHIM
€ 103.50
13
9900069471
ref: 13
CASE,TAPPET SHIM
€ 103.50
