THROTTLE BODY (E3)

GSX1300R HAYABUSA 2011 (L1) USA (E03)

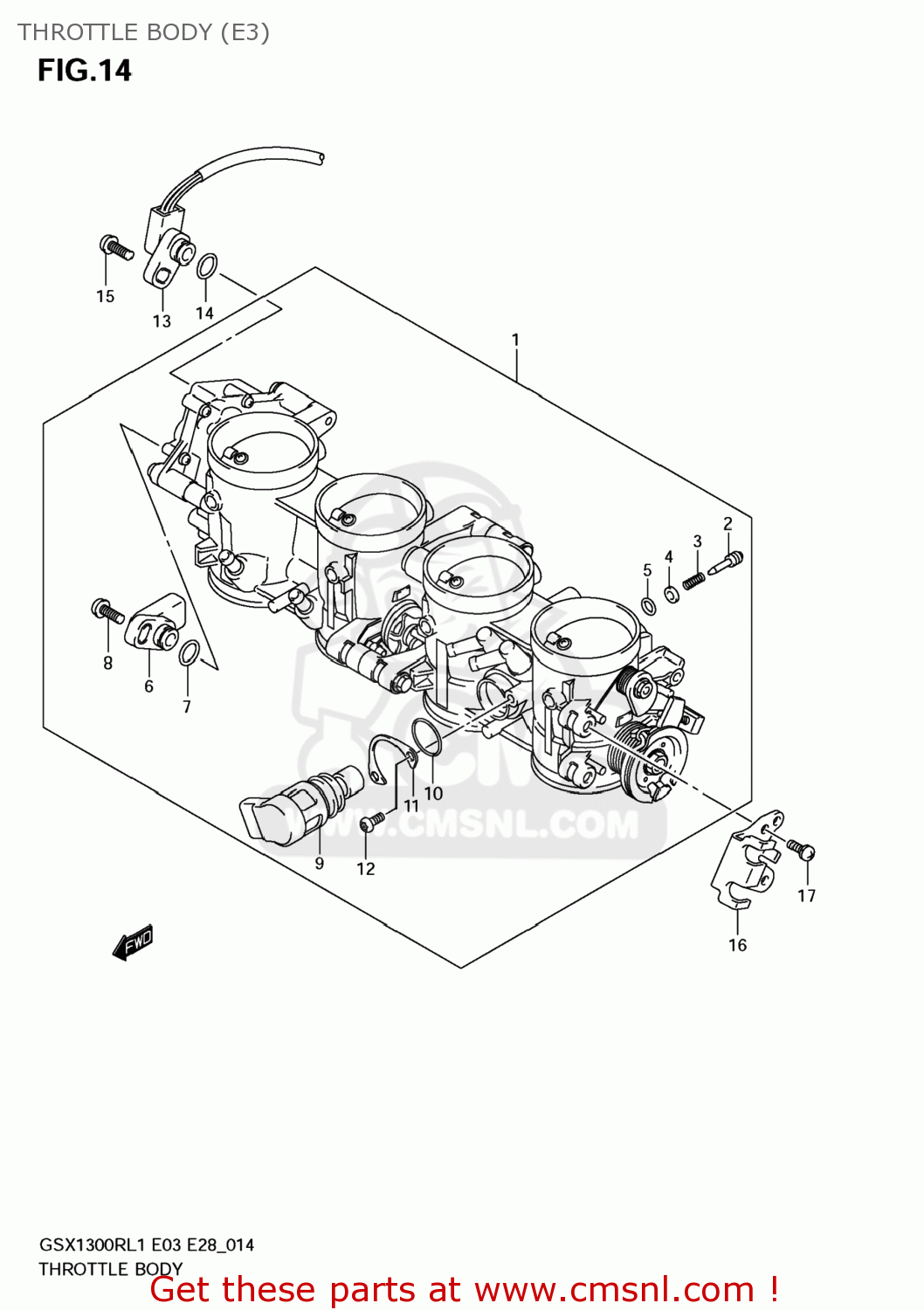

Throttle body (e3) diagram GSX1300R HAYABUSA 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1340615H00
ref: 1

BODY ASSY,THROTTLE

€ 2,297.00

1326918G00
ref: 2

SCREW,AIR ADJUST

€ 7.50

1327143E00
ref: 3

SPRING

€ 4.00

1329126E00
ref: 4

WASHER

€ 3.00

1329526E00
ref: 5

O RING

€ 4.50

1358018G00
ref: 6

SENSOR ASSY,THROTTLE MAIN

€ 188.00

1357540F00
ref: 7

O RING

€ 3.50

1360540F00
ref: 8

SCREW

€ 3.00

1811715H11
ref: 9

VALVE ASSY,ISC

€ 233.00

1811905H00
ref: 10

O RING

€ 2.50

1342815H00
ref: 11

PLATE,ISC VALVE

€ 19.50

1360515H00
ref: 12

SCREW

€ 4.50

1358040F30
ref: 13

SENSOR ASSY,TH

€ 188.00

1357540F00
ref: 14

O RING

€ 3.50

1360540F00
ref: 15

SCREW

€ 3.00

1356515H00
ref: 16

PLATE,STAY

€ 34.00

1360121H00
ref: 17

SCREW

€ 2.50
