TRANSMISSION
GSX1300R HAYABUSA 2011 (L1) USA (E03)

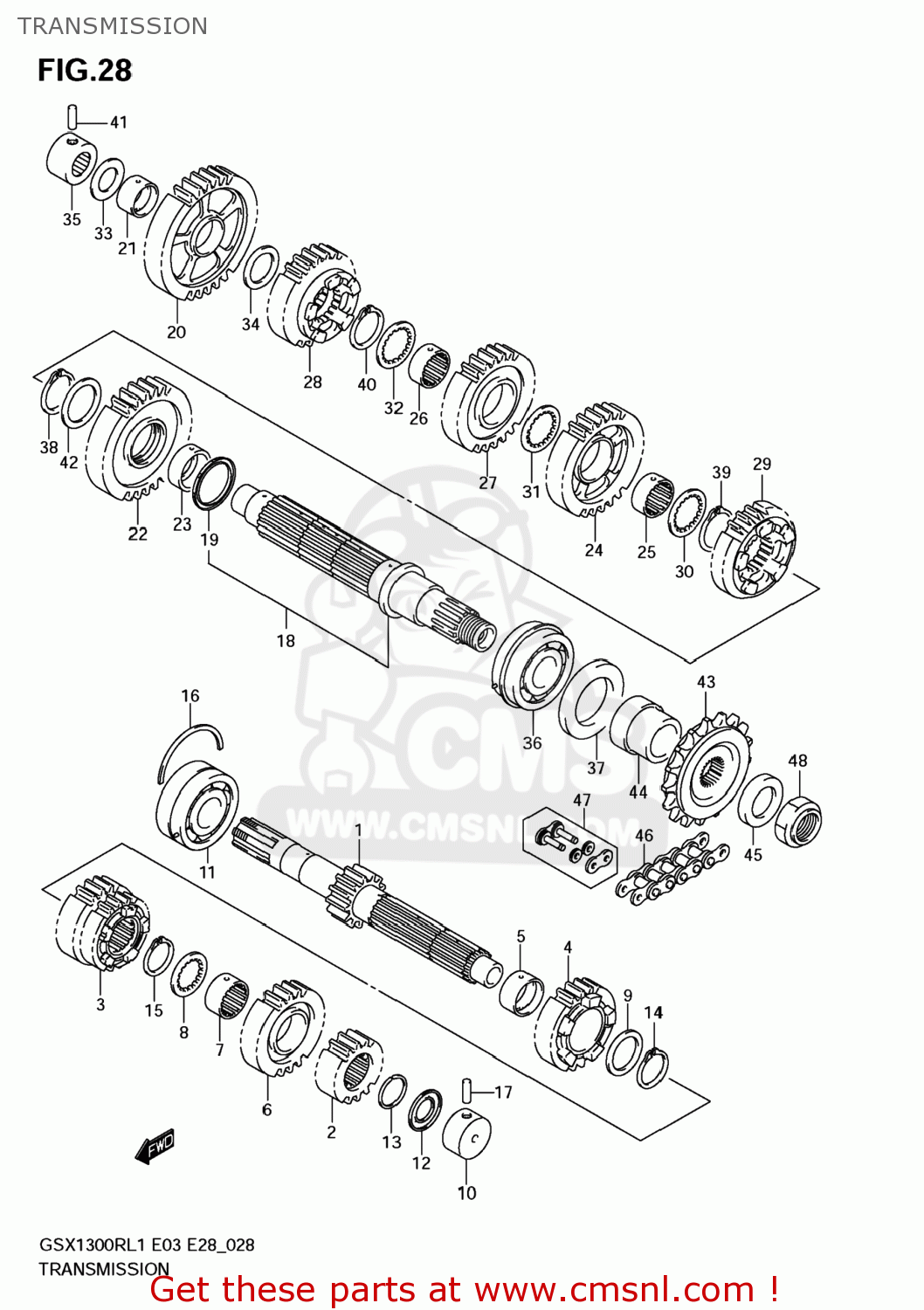

Transmission diagram GSX1300R HAYABUSA 2011 (L1) USA (E03)
TRANSMISSION GSX1300R HAYABUSA 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412024F00
ref: 1
SHAFT,COUNTER
€ 283.50
2
2422115H00
ref: 2
GEAR,2ND DRIVE
€ 82.50
3
2423115H00
ref: 3
GEAR,3RD & 4TH DRIVE
€ 152.50
4
2425115H00
ref: 4
24251-15H01
GEAR,5TH DRIVE
€ 114.50
5
2425224F10
ref: 5
BUSH,5TH DRIVE GEAR
€ 19.00
6
2426115H00
ref: 6
GEAR,6TH DRIVE
€ 128.00
7
2426224F10
ref: 7
BUSH,6TH DRIVE GEAR
€ 19.00
8
0916727003
ref: 8
WASHER,LOCK
€ 5.00
9
0918127014
ref: 9
SHIM(27X36X2.5)
€ 6.00
10
0926320085
ref: 10
BEARING(20X34X17.5)
€ 50.50
11
0926725012
ref: 11
BEARING(25X62X25.4)
€ 92.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
€ 7.00
13
0938027004
ref: 13
CIRCLIP
€ 3.50
14
0938027006
ref: 14
CIRCLIP
€ 2.50
15
0938027006
ref: 15
CIRCLIP
€ 2.50
16
0939062012
ref: 16
C RING
€ 5.00
17
0422107209
ref: 17
PIN
€ 1.50
18
2413015H00
ref: 18
SHAFT,DRIVE
€ 259.50
19
2413648G01
ref: 19
RING,DRIVE SHAFT FRICTION
€ 26.00
20
2431115H00
ref: 20
GEAR,1ST DRIVEN
€ 138.00
21
2431224F10
ref: 21
BUSH,1ST DRIVEN GEAR
€ 19.00
22
2432115H00
ref: 22
GEAR,2ND DRIVEN
€ 123.50
23
2432248G00
ref: 23
BUSH,2ND DRIVEN GEAR
€ 18.00
24
2433115H00
ref: 24
GEAR,3RD DRIVEN
€ 126.50
25
2433224F10
ref: 25
BUSH,DRIVEN GEAR
€ 19.00
26
2433224F10
ref: 26
BUSH,DRIVEN GEAR
€ 19.00
27
2434115H00
ref: 27
GEAR,4TH DRIVEN
€ 128.00
28
2435115H00
ref: 28
GEAR,5TH DRIVE
€ 140.50
29
2436115H00
ref: 29
GEAR,6TH DRIVEN
€ 120.00
30
0916730008
ref: 30
WASHER,LOCK
€ 5.50
31
0916730008
ref: 31
WASHER,LOCK
€ 5.50
32
0916730008
ref: 32
WASHER,LOCK
€ 5.50
33
0918120251
ref: 33
SHIM(20X34X1)
€ 3.00
34
0918124005
ref: 34
SHIM(24X34X1)
€ 3.50
35
0926320040
ref: 35
BEARING(20X34X20)
€ 42.50
36
0926730011
ref: 36
BEARING(30X62X23.8)
€ 103.50
37
0928342018
ref: 37
SEAL,OIL(42X62X7)
€ 33.00
38
0938030009
ref: 38
CIRCLIP
€ 3.50
39
0938030009
ref: 39
CIRCLIP
€ 3.50
40
0938030009
ref: 40
CIRCLIP
€ 3.50
41
0422107209
ref: 41
PIN
€ 1.50
42
0821130405
ref: 42
WASHER
€ 3.00
43
2751015H00
ref: 43
SPROCKET,ENGINE(18T)
€ 57.50
44
2753115H00
ref: 44
SPACER,ENGINE SPROCKET NO.1
€ 20.00
45
2753215H00
ref: 45
SPACER,ENGINE SPROCKET NO.2
€ 8.50
46
2760024F60118
ref: 46
CHAIN,DRIVE
€ 267.00
46
2760024F60118
ref: 46
CHAIN,DRIVE
€ 267.00
47
2762024F60
ref: 47
JOINT SET,CHAIN
€ 16.50
48
0915922008
ref: 48
NUT
€ 25.00
