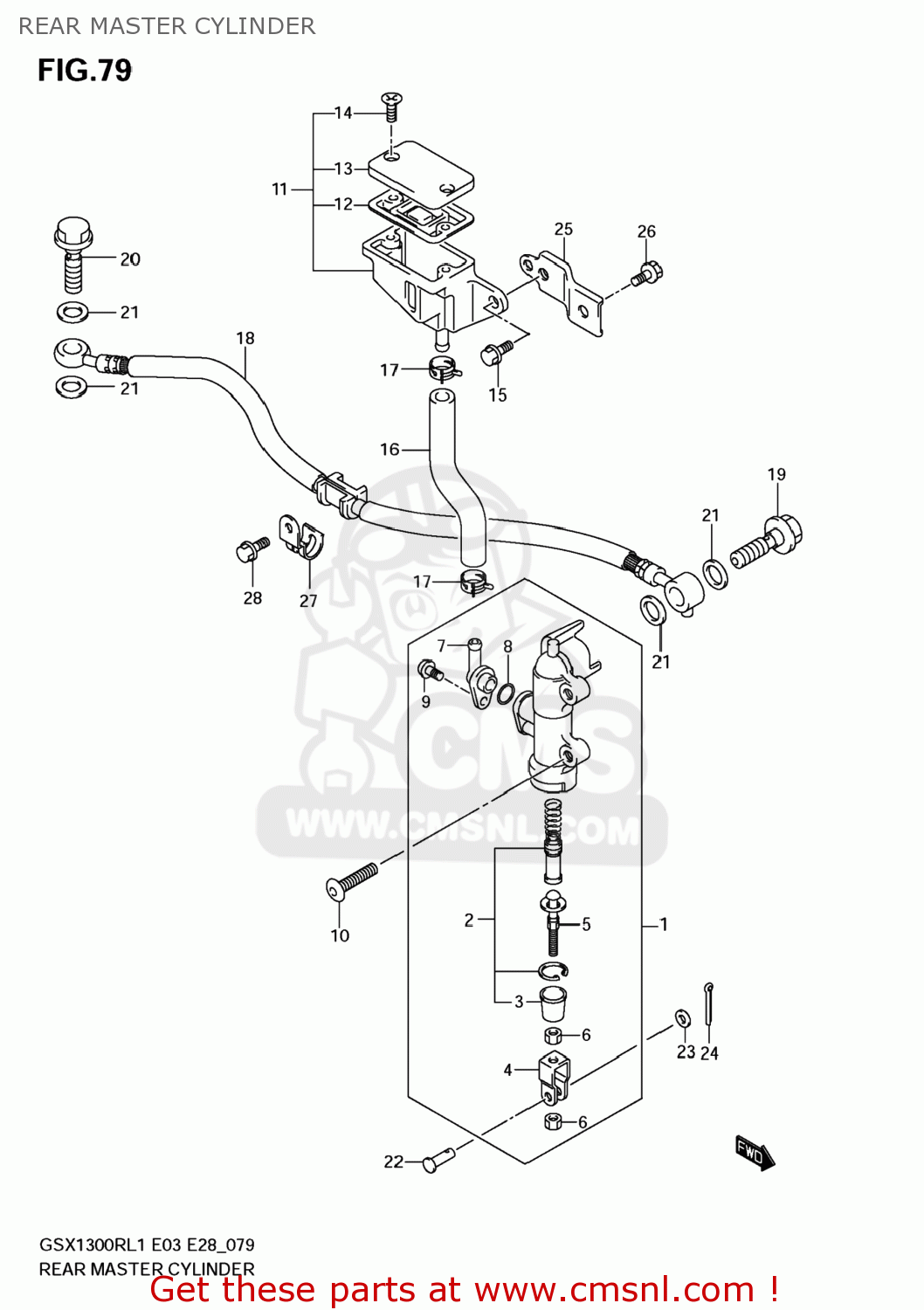

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960015H00
ref: 1

CYLINDER ASSY,RR MASTER

€ 177.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967027A30
ref: 5

ROD,PUSH

€ 13.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967205A00
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 3.50

9

021127412A
ref: 9

SCREW

€ 2.50

10

0913906028
ref: 10

SCREW(6X20)

€ 3.50

11

6974001D02
ref: 11

TANK ASSY,RR RESERVOIR

€ 58.00

12

5966704700
ref: 12

DIAPHRAGM

€ 8.00

13

5966905D00
ref: 13

CAP

€ 13.50

14

6968904A00
ref: 14

SCREW

€ 2.00

15

015470612A
ref: 15

BOLT

€ 2.00

16

6973124F00
ref: 16

HOSE,RESERVOIR TANK

€ 13.00

17

0940113417
ref: 17

CLIP

€ 2.50

18

6948015H00
ref: 18

HOSE,RR BRAKE

€ 62.50

19

0936010061
ref: 19

BOLT UNION

€ 6.50

20

0936010062
ref: 20

BOLT UNION

€ 5.00

21

0916110009
ref: 21

WASHER(10X15X1.5)

€ 2.00

22

0920006068
ref: 22

PIN(6X18.2)

€ 5.00

23

083220106A
ref: 23

WASHER

€ 2.00

24

041112015A
ref: 24

PIN

€ 1.50

25

6975015H00
ref: 25

BRACKET,RR RESERVOIR TANK

€ 8.50

26

015500612A
ref: 26

BOLT

€ 2.50

27

6926815H00
ref: 27

CLAMP,RR BRAKE HOSE

€ 9.00

28

015470612A
ref: 28

BOLT

€ 2.00

all assemblies
