RADIATOR

GSX1300R HAYABUSA 2011 (L1) USA (E03)

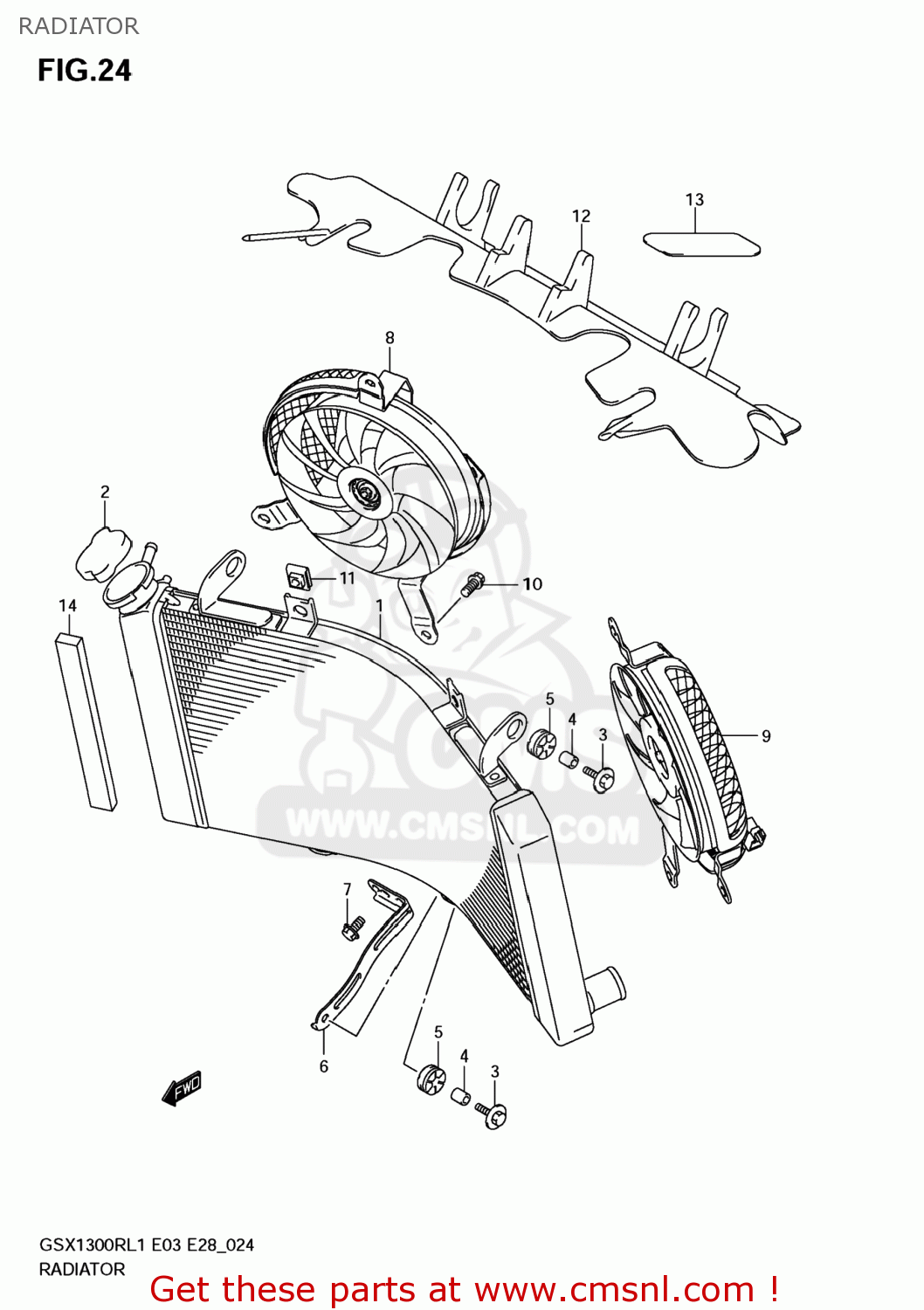

Radiator diagram GSX1300R HAYABUSA 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1771015H00
ref: 1

RADIATOR ASSY,

€ 833.00

1773012C20
ref: 2
17730-08J00

CAP COMP,RADIATOR

€ 40.00

0911806097
ref: 3

BOLT(6X25)

€ 2.50

0918006290
ref: 4

SPACER(6.5X10X12)

€ 2.50

0932010051
ref: 5

CUSHION

€ 3.50

1775024F00
ref: 6

BRACKET,RADIATOR

€ 8.00

015500612A
ref: 7

BOLT

€ 2.50

1781015H00
ref: 8

FAN ASSY,RADIATOR,R

€ 462.50

1782015H00
ref: 9

FAN ASSY,RADIATOR,L

€ 462.50

1771140F00
ref: 10

BOLT,FAN ASSY

€ 3.50

1771240F00
ref: 11

NUT,FAN ASSY

€ 3.50

1777115H00
ref: 12

SHIELD,RADIATOR HEAT

€ 19.50

6313110F00
ref: 13

TAPE,RR FENDER

€ 6.00

9447617H00
ref: 14

CUSHION,UNDER COWLING

€ 4.00
