STAND
GSX1300R HAYABUSA 2011 (L1) USA (E03)

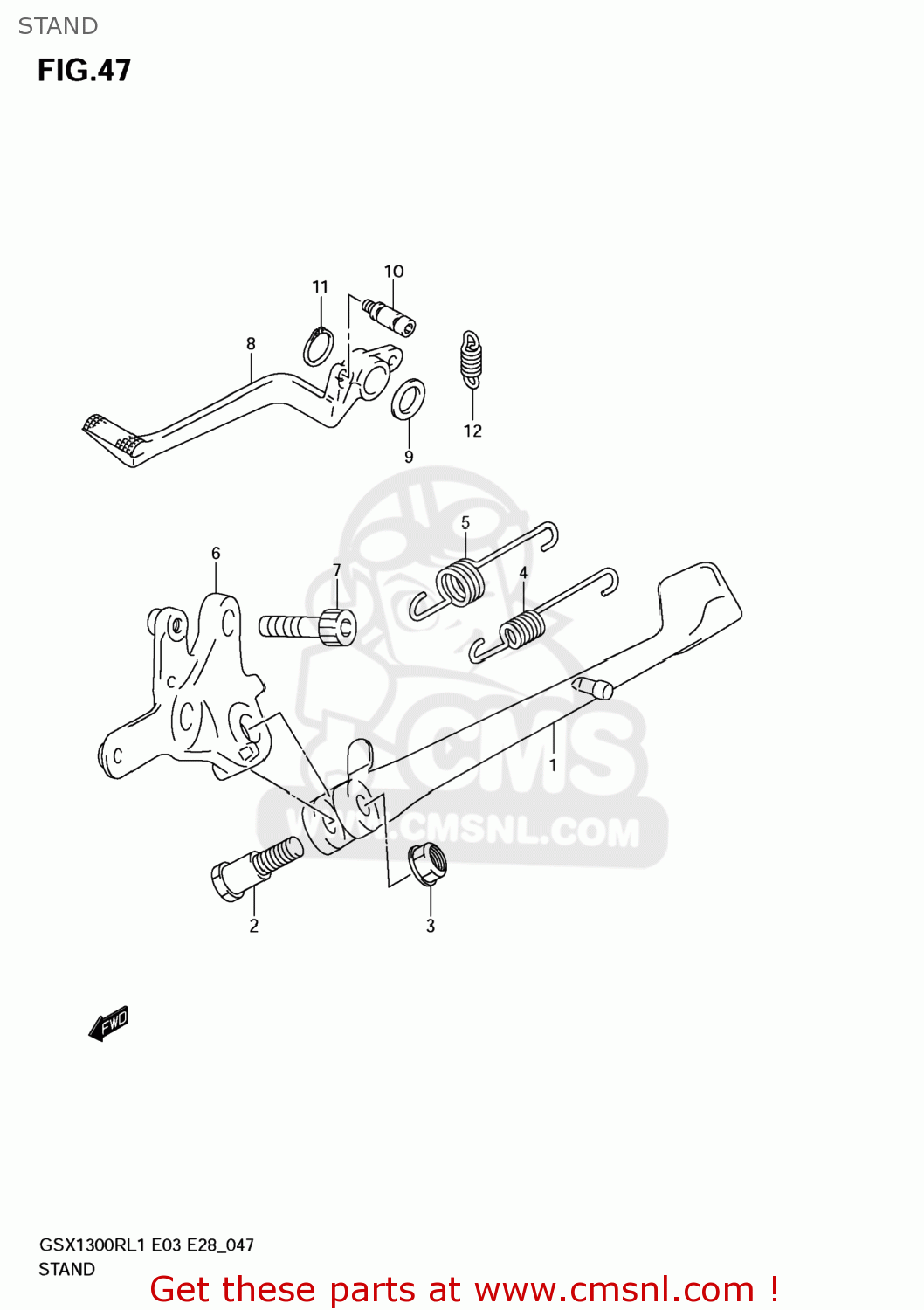

Stand diagram GSX1300R HAYABUSA 2011 (L1) USA (E03)
STAND GSX1300R HAYABUSA 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231024F00
ref: 1
STAND,PROP
€ 109.50
2
0911110059
ref: 2
BOLT(10X21)
€ 7.00
3
0915910103
ref: 3
NUT
€ 3.00
4
0944314068
ref: 4
SPRING
€ 5.00
5
0944319015
ref: 5
SPRING
€ 5.00
6
4233024F01
ref: 6
BRACKET,PROP STAND
€ 104.00
7
0910612003
ref: 7
BOLT(12X35)
€ 3.50
8
4311124F00
ref: 8
PEDAL,BRAKE
€ 90.50
9
0916018022
ref: 9
WASHER(18X24X1)
€ 3.00
10
4356124F00
ref: 10
HOOK,RETURN SPRING
€ 8.00
11
083313118A
ref: 11
CIRCLIP
€ 2.00
12
0944313032
ref: 12
SPRING
€ 4.00
