CYLINDER

GSX1300R HAYABUSA 2011 (L1) USA (E03)

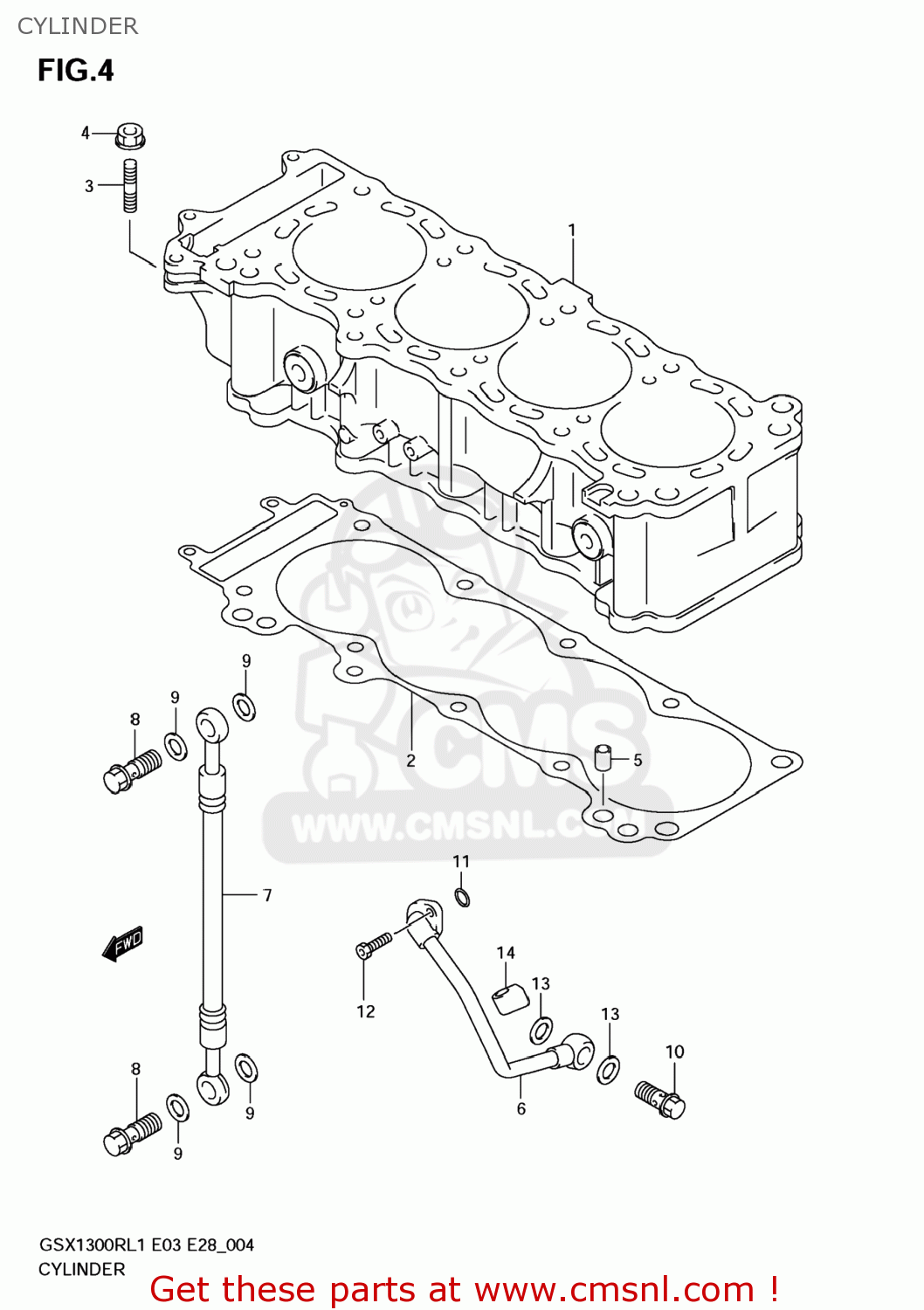

Cylinder diagram GSX1300R HAYABUSA 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1121015H000F0
ref: 1

CYLINDER

€ 1,202.50

1124115H00
ref: 2

GASKET,CYLINDER (NAS)

€ 45.50

014210625B
ref: 3

BOLT,STUD

€ 2.50

083161006B
ref: 4

NUT

€ 2.50

0421111169
ref: 5

PIN

€ 2.00

1128024F00
ref: 6

PIPE,CRANKCASE OIL

€ 45.00

1128224F00
ref: 7

HOSE,CYLINDER HEAD OIL

€ 70.50

0936010062
ref: 8

BOLT UNION

€ 5.00

0916810007
ref: 9

GASKET(10.1X16X1) (NAS)

€ 2.00

0936014012
ref: 10

BOLT UNION

€ 10.00

0928012012
ref: 11

O RING(D:2.4,ID:11.8)

€ 5.00

0910606073
ref: 12

BOLT(6X16)

€ 2.50

0916814015
ref: 13

GASKET(14X20X1.5) (NAS)

€ 1.50

1128324F00
ref: 14

CUSHION,CRANKCASE DIL PIPE

€ 4.50
