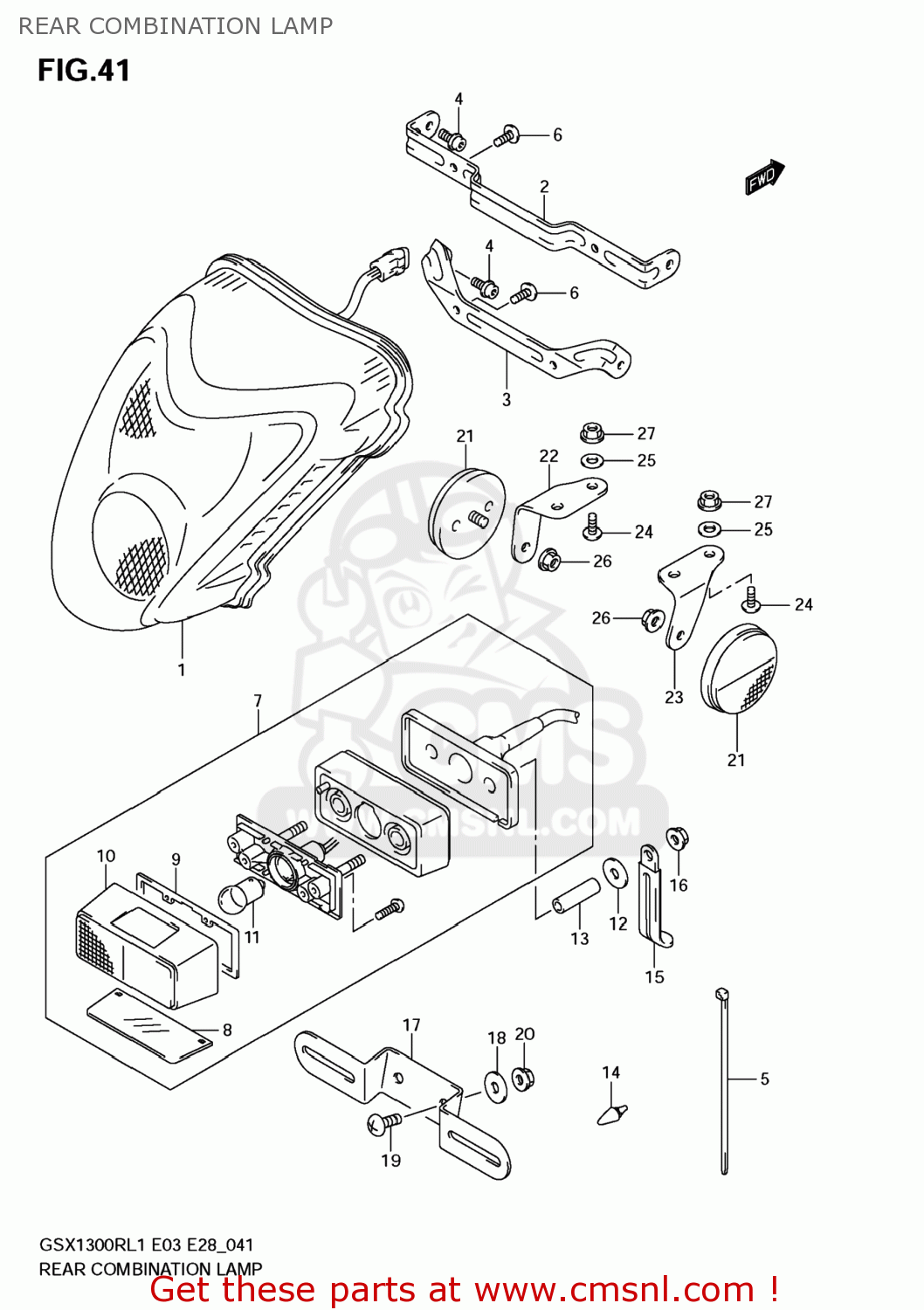

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571015H30
ref: 1

LAMP ASSY,RR COMBINATION

€ 306.50

2

3572615H00
ref: 2

BRACKET,RR COMBINATION LAMP

€ 6.00

3

3572615H10
ref: 3

BRACKET,RR COMBINATION LAMP

€ 6.00

4

0910605031
ref: 4

BOLT(5X12)

€ 2.50

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00

6

035410516A
ref: 6

SCREW

€ 1.50

7

3591041G30
ref: 7
35910-41G31

LAMP ASSY,LICE

€ 62.50

8

3591241G00
ref: 8

LENS LICENCE

€ 19.50

9

3591341G00
ref: 9

GASKET (NAS)

€ 19.00

10

3591741G00
ref: 10

COVER,LICENSE LAMP

€ 27.00

11

0947112140
ref: 11
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

12

0916006077
ref: 12

WASHER(6.5X20X1.2)

€ 2.00

13

0918006356
ref: 13

SPACER(6.5X9X34)

€ 3.00

14

0932106028
ref: 14

CUSHION

€ 3.00

15

0940406429
ref: 15

CLAMP(L:45)

€ 2.50

16

083161006A
ref: 16

NUT

€ 2.50

17

3592715H00
ref: 17

BRACKET,LICENSE PLATE

€ 8.50

18

0916006077
ref: 18

WASHER(6.5X20X1.2)

€ 2.00

19

021420616A
ref: 19

SCREW

€ 2.50

20

083161006A
ref: 20

NUT

€ 2.50

21

3597014A20
ref: 21

REFLECTOR ASSY,RR SIDE

€ 11.00

22

3597515H00
ref: 22

BRACKET,RR SIDE RR,R

€ 5.50

23

3597615H00
ref: 23

BRACKET,RR SIDE RR,L

€ 5.50

24

021420612A
ref: 24

SCREW

€ 2.00

25

0916006126
ref: 25

WASHER(6.5X14X2)

€ 2.00

26

083161005A
ref: 26

NUT

€ 2.50

27

083161006A
ref: 27

NUT

€ 2.50
