HEADLAMP

GSX1300R HAYABUSA 2011 (L1) USA (E03)

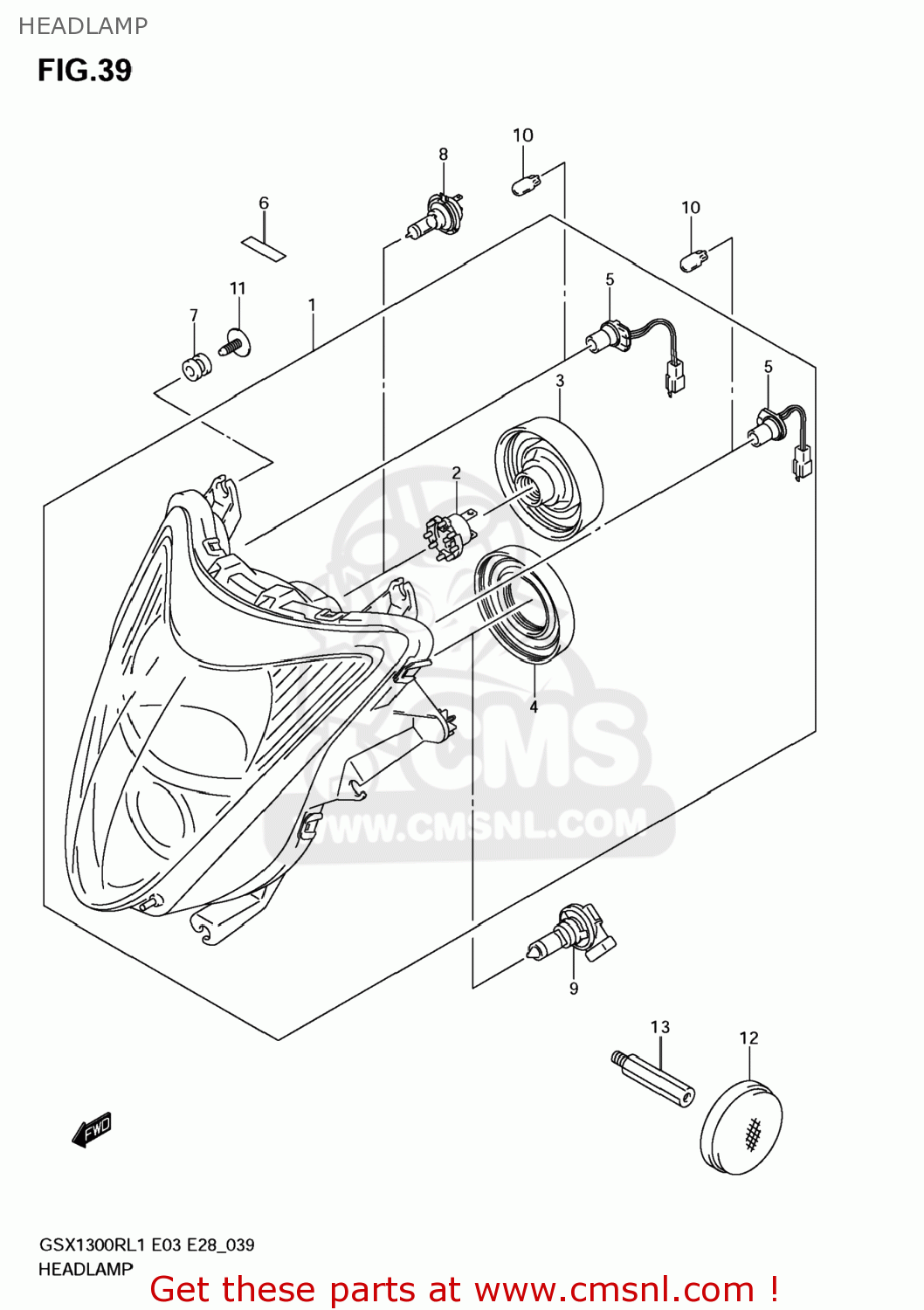

Headlamp diagram GSX1300R HAYABUSA 2011 (L1) USA (E03)

HEADLAMP GSX1300R HAYABUSA 2011 (L1) USA (E03)

HEADLAMP GSX1300R HAYABUSA 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510015H30999
ref: 1

HEADLAMP ASSY

€ 415.00

2

3517524F00
ref: 2

ADAPTER ASSY

€ 16.00

3

3517315H00
ref: 3

COVER

€ 16.50

4

3517314G00
ref: 4

COVER

€ 11.50

5

3611815H00
ref: 5

CORD ASSY

€ 15.00

6

9444321H00
ref: 6

TAPE,FR TURNSIGNAL

€ 2.00

7

0932009039
ref: 7

CUSHION

€ 6.00

8

0947112188
ref: 8

BULB(12V55W/H7/PX26D/PHILIPS)

€ 12.50

9

0947112222
ref: 9

BULB(12V65W,H9)

€ 35.50

10

0947112216
ref: 10

BULB(12V5W)

€ 5.00

11

0913605062
ref: 11

SCREW(5X15)

€ 2.50

12

3595014A11
ref: 12

REFLEX REFLECTOR ASSY,FR SIDE

€ 11.00

13

0911906104
ref: 13

BOLT

€ 9.50
