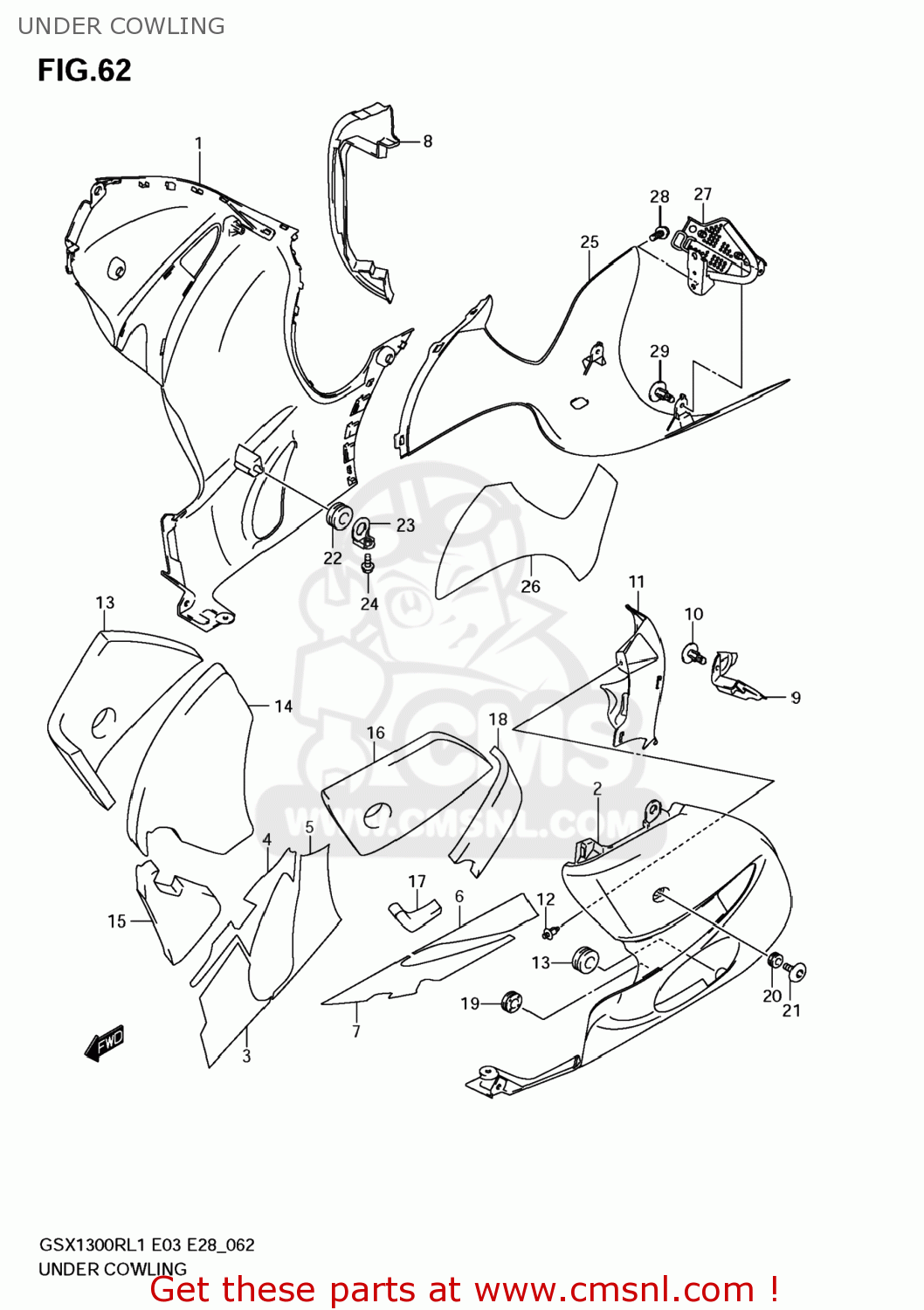

UNDER COWLING

ref

part #

description

quantity

1-1

9447015H20YAY
ref: 1-1

COWLING,UNDER,R(BLACK)

€ 251.00

1-2

9447015H20YKZ
ref: 1-2

COWLING,UNDER,R(BLUE)

€ 251.00

1-3

9447015H20YPA
ref: 1-3

COWLING,UNDER,R(WHITE)

€ 251.00

2-1

9448015H20YAY
ref: 2-1

COWLING,UNDER,L(BLACK)

€ 251.00

2-2

9448015H20YKZ
ref: 2-2

COWLING,UNDER,L(BLUE)

€ 251.00

2-3

9448015H20YPA
ref: 2-3

COWLING,UNDER,L(WHITE)

€ 251.00

3

9447215H00
ref: 3

SHIELD,UNDER COWL HEAT,R NO.1

€ 11.00

4

9447215H20
ref: 4

SHIELD,UNDER COWL HEAT,R NO.3

€ 7.50

5

9447215H10
ref: 5

SHIELD,UNDER COWL HEAT,R NO.2

€ 11.00

6

9448215H00
ref: 6

SHIELD,UNDER COWL HEAT,L NO.1

€ 11.50

7

9448215H10
ref: 7

SHIELD,UNDER COWL HEAT,L NO.2

€ 8.00

8

9447515H00
ref: 8

PROTECTOR,COWLING UNDER,R

€ 17.00

9

9448515H00
ref: 9

PROTECTOR,COWLING UNDER,L

€ 9.00

10

9447935F00
ref: 10

CLIP

€ 3.50

11

9448915H00
ref: 11

COVER,UNDER COWL,L

€ 15.00

12

09409063145PK
ref: 12

CLIP(BLACK)

€ 3.50

13

9447815H00
ref: 13

CUSHION,UNDER COWLING,R NO.1

€ 31.50

14

9447815H10
ref: 14

CUSHION,UNDER COWLING,R NO.2

€ 36.00

15

9447815H20
ref: 15

CUSHION,UNDER COWLING,R NO.3

€ 12.50

16

9448815H00
ref: 16

CUSHION,UNDER COWLING,L NO.1

€ 25.00

17

9448815H10
ref: 17

CUSHION,UNDER COWLING,L NO.2

€ 17.50

18

9448815H20
ref: 18

CUSHION,UNDER COWLING,L NO.3

€ 18.50

19

9447915H00
ref: 19

CUSHION,UNDER COWLING,L

€ 2.50

20

0932009016
ref: 20

CUSHION

€ 2.50

21

0913906126
ref: 21

SCREW(6X20)

€ 4.00

22

0932008028
ref: 22

CUSHION

€ 2.50

23

9456015H00
ref: 23

PLATE,UNDER COWL

€ 7.00

24

015500612B
ref: 24

BOLT

€ 2.50

25-1

9466115H00YAY
ref: 25-1

COWLING,UNDER RR

€ 264.50

25-2

9466115H00YKZ
ref: 25-2

COWLING,UNDER RR

€ 264.50

25-3

9466115H00YPA
ref: 25-3

COWLING,UNDER RR

€ 264.50

26

9466715H00
ref: 26

SHIELD,UNDER COWL HEAT

€ 13.50

27

9454015H00
ref: 27

BRACKET,RR UNDER COWLING

€ 176.00

28

015500816B
ref: 28

BOLT

€ 3.00

29

9447935F00
ref: 29

CLIP

€ 3.50
