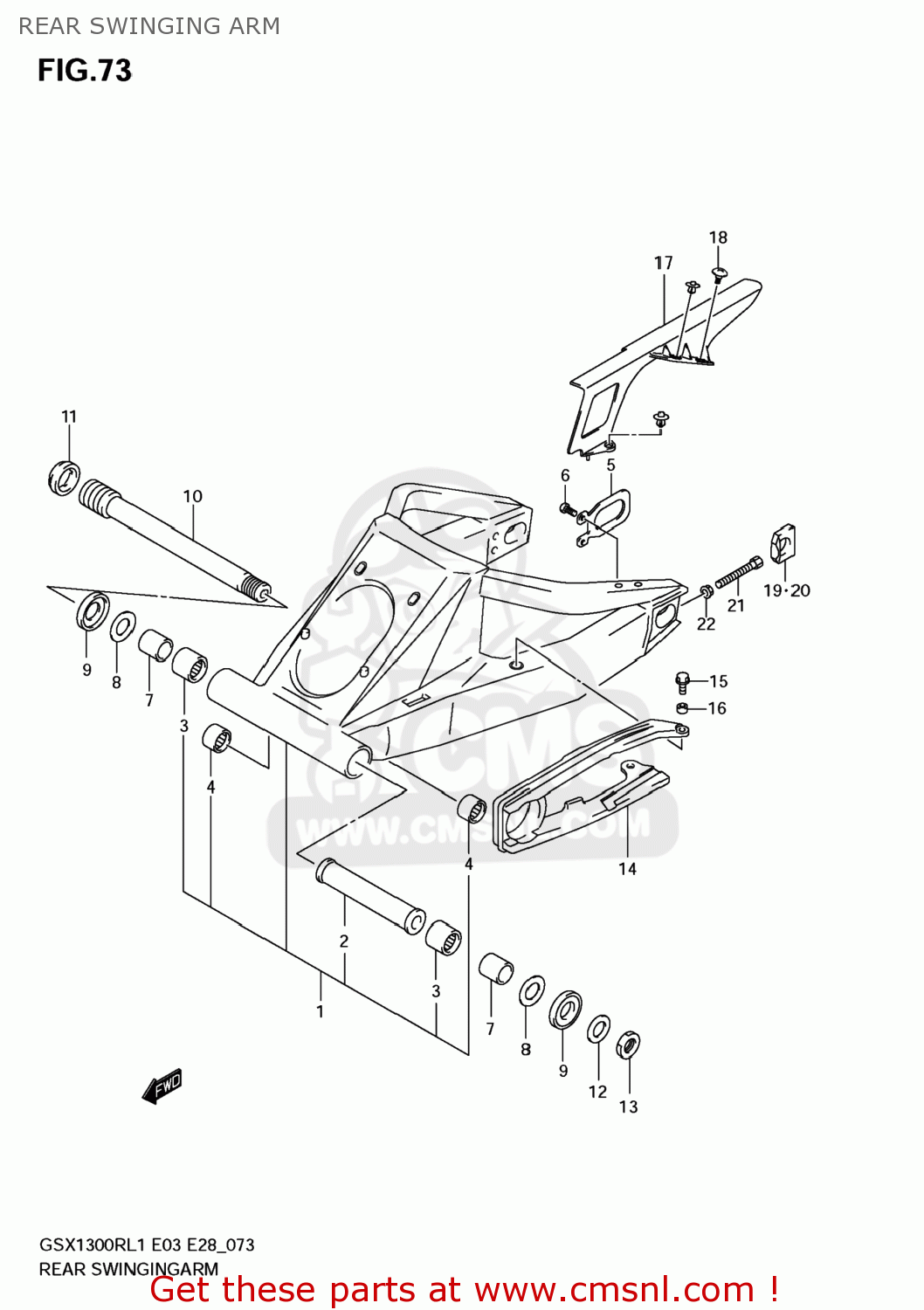

REAR SWINGING ARM

ref

part #

description

quantity

1

6100024F40YAP
ref: 1

SWINGINGARM ASSY

€ 2,177.00

2

6128133E20
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 26.00

3

0926330040
ref: 3

BEARING(30X40X25)

€ 31.50

4

0926317037
ref: 4

BEARING(17X24X25)

€ 19.00

5

6112433E00
ref: 5

PLATE,RR SWING ARM BRKT

€ 3.50

6

0912506073
ref: 6

SCREW(6X16)

€ 3.00

7

6125117E10
ref: 7

SPACER,REAR SWING ARM PIVOT

€ 7.00

8

0821125481
ref: 8

WASHER

€ 5.50

9

6126217E10
ref: 9

DUST SEAL,RR SWGARM PIVOT

€ 6.50

10

6121116G00
ref: 10

SHAFT,RR SWINGINGARM PIVOT

€ 74.00

11

6121440C31
ref: 11

NUT,RR SWGARM PIVOT BOLT

€ 16.50

12

0916025070
ref: 12

WASHER(25.2X42X3.2)

€ 4.50

13

0915925003
ref: 13

NUT

€ 29.00

14

6127315H00
ref: 14

BUFFER,CHAIN TOUCH DEFENSE

€ 29.00

15

0911606152
ref: 15

BOLT(6X20)

€ 2.00

16

0918006306
ref: 16

SPACER(6.5X9X5)

€ 2.00

17

6131115H00
ref: 17

CASE,CHAIN

€ 28.50

18

0913906168
ref: 18

SCREW(6X16)

€ 2.00

19

6144640F10
ref: 19

ADJUSTER,CHAIN

€ 31.00

20

6144540F20
ref: 20

ADJUSTER,CHAIN

€ 31.00

21

0910008287
ref: 21

BOLT(8X50)

€ 3.00

22

083161008A
ref: 22

NUT

€ 2.50

all assemblies
