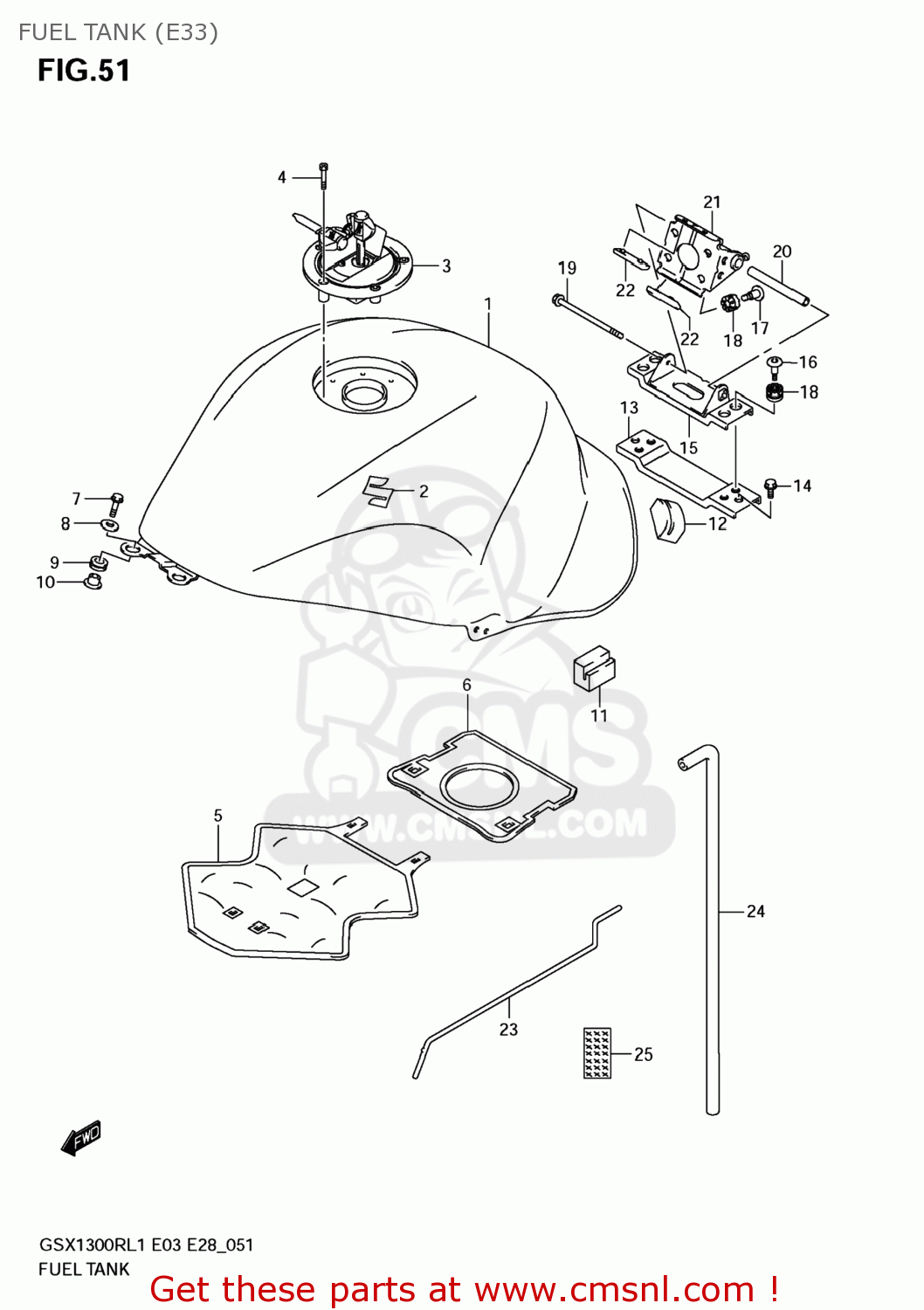

FUEL TANK (E33)

ref

part #

description

quantity

1-1

4410015H80YAY
ref: 1-1

TANK ASSY,FUEL

€ 950.50

1-2

4410015H80YKZ
ref: 1-2

TANK ASSY,FUEL(BLUE)

€ 950.50

1-3

4410015H80YPA
ref: 1-3

TANK ASSY,FUEL

€ 950.50

2

6811118G20
ref: 2

EMBLEM,S

€ 22.50

3

4420016870
ref: 3

CAP SET,FUEL TANK

€ 148.50

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4419115H00
ref: 5

SHIELD,FUEL TANK HEAT NO.1

€ 115.50

6

4419115H10
ref: 6

SHIELD,FUEL TANK HEAT NO.2

€ 51.00

7

0913906029
ref: 7

SCREW(6X25)

€ 5.00

8

0916006084
ref: 8

WASHER(6.5X18X1.6)

€ 2.00

9

4451116G00
ref: 9

CUSHION,FUEL TANK FR

€ 4.00

10

4451216G00
ref: 10

SPACER,FUEL TANK FR

€ 6.50

11

4454124F00
ref: 11

CUSHION,FUEL TANK SIDE

€ 6.00

12

4454315H00
ref: 12

CUSHION,FUEL TANK RR

€ 4.00

13

4455515H00
ref: 13

BRACKET,FUEL TANK RR NO.3

€ 15.00

14

015500816A
ref: 14

BOLT

€ 2.50

15

4455015H00
ref: 15

BRACKET,FUEL TANK RR NO.2

€ 24.50

16

0913906191
ref: 16

SCREW(6X22)

€ 4.50

17

0913906191
ref: 17

SCREW(6X22)

€ 4.50

18

0932008071
ref: 18

CUSHION

€ 3.50

19

071200695B
ref: 19

BOLT

€ 3.50

20

4456118G00
ref: 20

SPACER,FUEL TANK RR

€ 14.00

21

4453015H00
ref: 21

STEUN.BENZ.TANK

€ 27.00

22

4514944G00
ref: 22

CUSHION,SEAT FR

€ 4.50

23

4457435F00
ref: 23

STAY,FUEL TANK

€ 8.00

24

4442315H00
ref: 24

HOSE,FUEL TANK DRAIN

€ 17.50

25

4442715H10
ref: 25

SHIELD,DRAIN HOSE HEAT

€ 8.00

all assemblies
