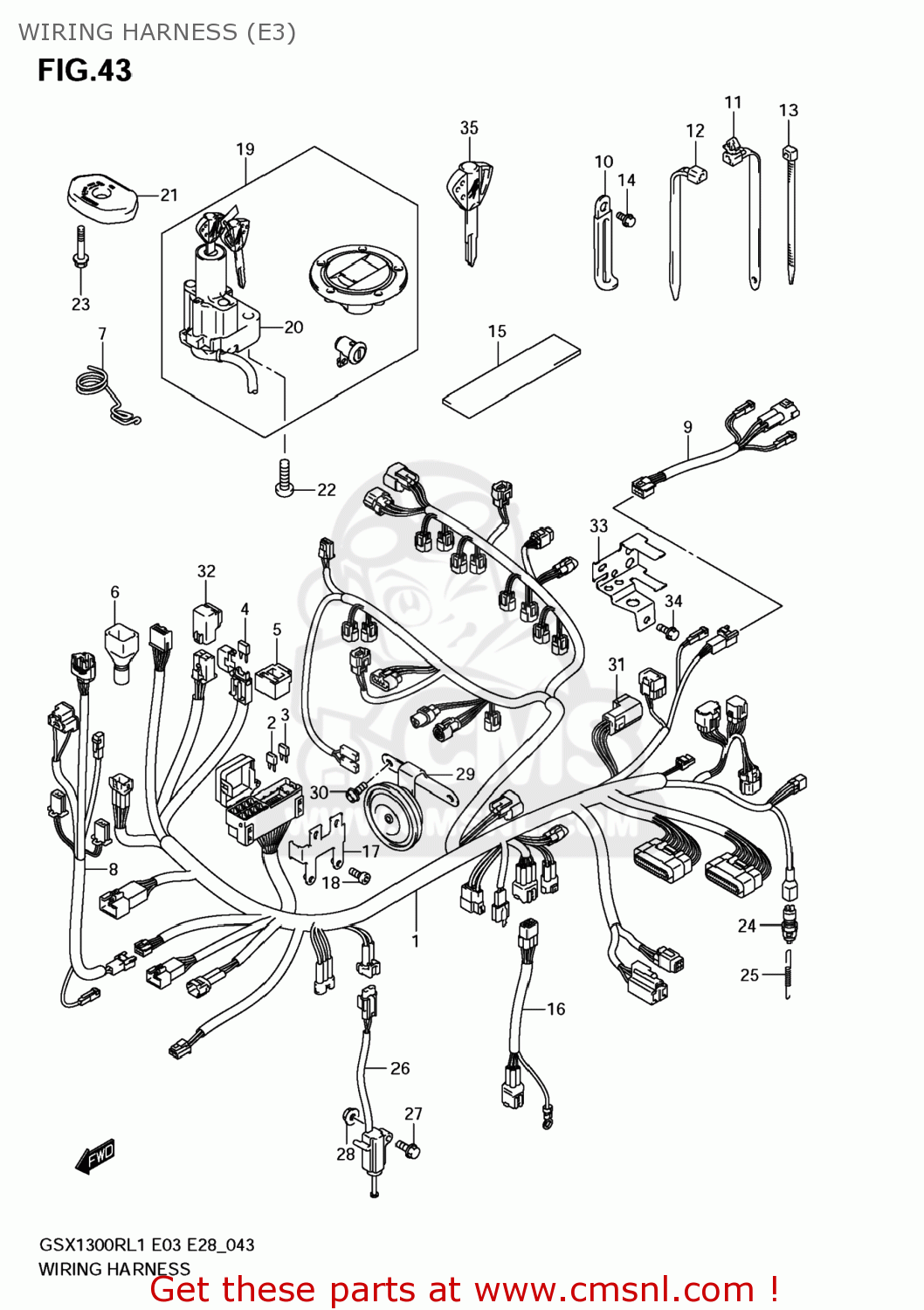

WIRING HARNESS (E3)

ref

part #

description

quantity

1

3661015H30
ref: 1

HARNESS,WIRING

€ 966.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

0948115101
ref: 4

FUSE(15A)

€ 1.50

5

3674239D00
ref: 5

HOLDER,FUSE

€ 15.00

6

3661833E00
ref: 6

COVER,SPEEDOMETER COUPLER

€ 5.50

7

3661915H00
ref: 7

GUIDE,WIRING HARNESS

€ 12.00

8

3662015H00
ref: 8

HARNESS,WIRING NO.2

€ 114.50

9

3685715H00
ref: 9

WIRE,RR COMB

€ 35.50

10-1

0940406429
ref: 10-1

CLAMP(L:45)

€ 2.50

10-2

0940406435
ref: 10-2

CLAMP(L:135)

€ 2.50

11

0940714408
ref: 11
09407-17402

CLAMP(L:120)

€ 5.00

12-1

0940714403
ref: 12-1

CLAMP(L:125)

€ 2.50

12-2

0940718402
ref: 12-2

CLAMP(L:165)

€ 2.50

13

0940714407
ref: 13

CLAMP(L:145)

€ 4.00

14

015500610A
ref: 14

BOLT

€ 2.00

15

3692045G00
ref: 15

PROTECTOR,WIRING HARNESS

€ 2.50

16

3685515H00
ref: 16

WIRE,O2 SENSOR

€ 63.00

17

3674424F00
ref: 17

BRACKET,FUSE BOX

€ 7.50

18

071200510B
ref: 18

BOLT

€ 2.00

19

3710015850
ref: 19

LOCK SET

€ 250.50

20

3710015H80
ref: 20

LOCK ASSY,STEERING

€ 175.50

21

3718015H00
ref: 21

COVER,STEERING LOCK

€ 28.00

22

0913908016
ref: 22

BOLT(8X20)

€ 3.50

23

015470530A
ref: 23

BOLT

€ 2.00

24

3774019F00
ref: 24

SWITCH ASSY,STOP LAMP

€ 21.00

25

0944306012
ref: 25

SPRING

€ 3.00

26

3784024F00
ref: 26

SWITCH ASSY,SIDE STAND

€ 63.50

27

0910308357
ref: 27

BOLT(8X35)

€ 2.00

28

083161008B
ref: 28

NUT

€ 3.00

29

3850024F01
ref: 29

HORN ASSY

€ 83.00

30

015500612B
ref: 30

BOLT

€ 2.50

31

3874026E00
ref: 31

RELAY ASSY

€ 32.50

32

3874026E00
ref: 32

RELAY ASSY

€ 32.50

33

3874124F00
ref: 33

BRACKET,FUEL PUMP RLY

€ 5.00

34

015500612B
ref: 34

BOLT

€ 2.50

35

3714615H00
ref: 35

KEY,BLANK

€ 97.50
