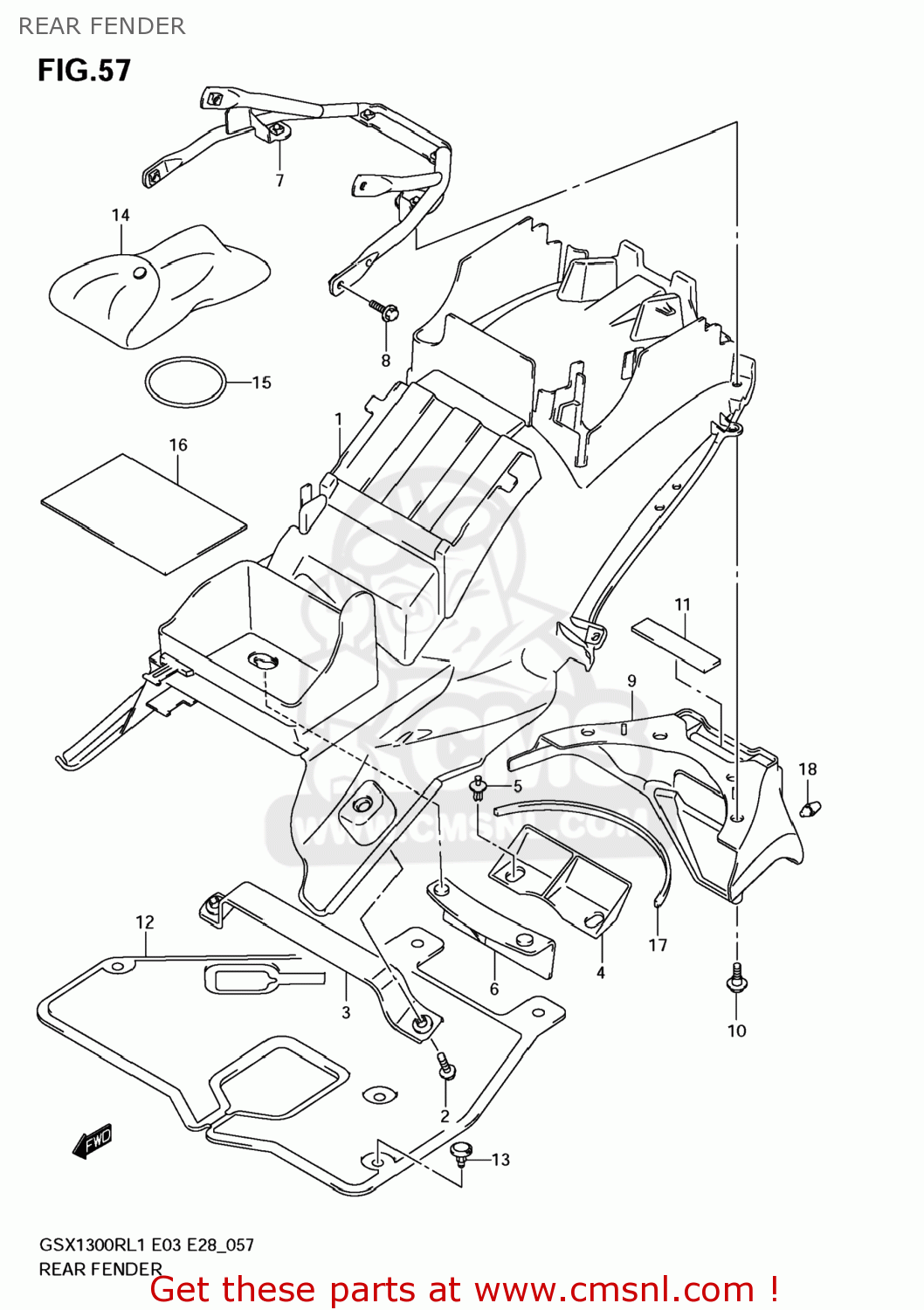

REAR FENDER

ref

part #

description

quantity

1

6311115H00291
ref: 1

FENDER,RR FR

€ 98.00

2

015500616A
ref: 2

BOLT

€ 2.50

3

6313015H00
ref: 3

BRACKET,RR FENDER FR

€ 22.50

4

6341124F00
ref: 4

MUDGUARD,RR FENDER

€ 6.00

5

0940907333
ref: 5

CLIP

€ 2.50

6

6342124F00
ref: 6

MUDGUARD,RR FENDER FR UPR

€ 7.00

7

6312015H00
ref: 7

BRACKET,RR FENDER

€ 245.50

8

015500616A
ref: 8

BOLT

€ 2.50

9

6311215H00291
ref: 9

FENDER,RR RR

€ 33.50

10

0911106099
ref: 10

BOLT(6X16)

€ 4.00

11

3365249000
ref: 11

PROTECTOR(20X90)X4

€ 2.00

12

4785115H00
ref: 12

SHIELD,INNER

€ 41.50

13

9447935F00
ref: 13

CLIP

€ 3.50

14

0980021039
ref: 14

TOOL ASSY

€ 73.00

15

0928061002
ref: 15

O RING(D:3.5,ID:61)

€ 5.00

16

6311315H00
ref: 16

CUSHION,RR FENDER FR

€ 8.00

17

6319216GA0
ref: 17

CUSHION,RR FENDER RR

€ 2.50

18

0932106028
ref: 18

CUSHION

€ 3.00
