Buy Suzuki GSX Parts Online


FRONT FORK DAMPER

GSX1300R HAYABUSA 2011 (L1) USA (E03)

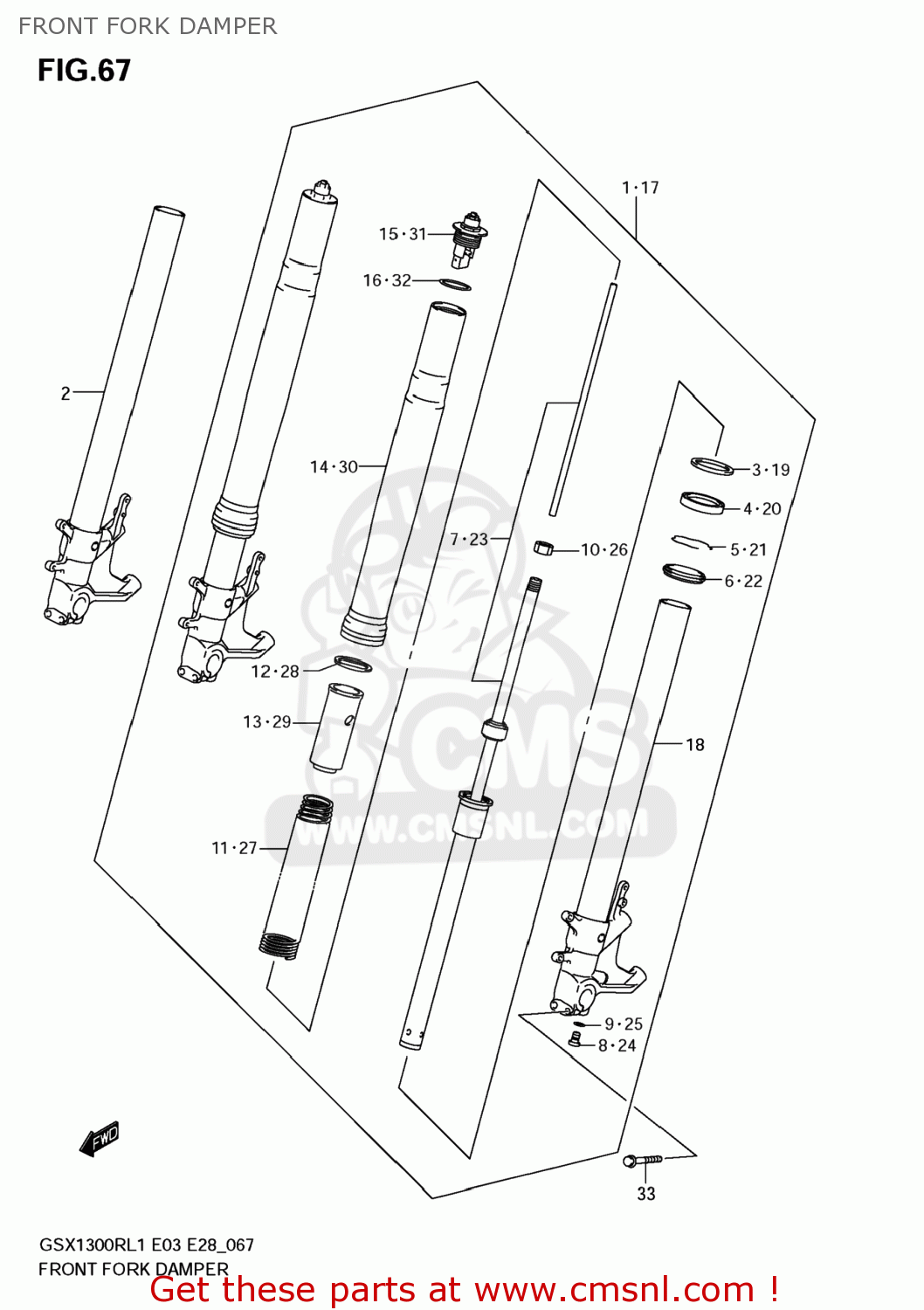

Front fork damper diagram GSX1300R HAYABUSA 2011 (L1) USA (E03)

FRONT FORK DAMPER GSX1300R HAYABUSA 2011 (L1) USA (E03)
FRONT FORK DAMPER GSX1300R HAYABUSA 2011 (L1) USA (E03)
FRONT FORK DAMPER GSX1300R HAYABUSA 2011 (L1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5110324F50
ref: 1
DAMPER ASSY,FR FORK,R
€ 2,263.00
2
5111024F50
ref: 2
TUBE,INNER,R
€ 1,065.00
3
5115814200
ref: 3
WASHER
5115814200
€ 4.00
4
5115341G00
ref: 4
SEAL,OIL
5115341G00
€ 17.00
5
5115614200
ref: 5
RING,STOPPER
5115614200
€ 4.50
6
5117341G00
ref: 6
SEAL,DUST
5117341G00
€ 21.00
7
5114624F50
ref: 7
CYLINDER
5114624F50
€ 390.50
8
5114724F50
ref: 8
BOLT
5114724F50
€ 6.50
9
5114841310
ref: 9
GASKET (NAS)
5114841310
€ 2.50
10
5135213A60
ref: 10
NUT,ROD
5135213A60
€ 1.50
11
5117124F50
ref: 11
SPRING,FR
€ 93.00
12
5115840F30
ref: 12
GUIDE,SPRING
5115840F30
€ 7.00
13
5117640F30
ref: 13
SPACER,SPRING
5117640F30
€ 12.50
14
5113024F50
ref: 14
TUBE,OUTER
€ 787.50
15
5135124F50
ref: 15
CAP,FR FORK
€ 202.00
16
6227814100
ref: 16
O RING
6227814100
€ 3.50
17
5110424F50
ref: 17
DAMPER ASSY,FR FORK,L
€ 2,263.00
18
5112024F50
ref: 18
TUBE,INNER,L
€ 1,065.00
19
5115814200
ref: 19
WASHER
5115814200
€ 4.00
20
5115341G00
ref: 20
SEAL,OIL
5115341G00
€ 17.00
21
5115614200
ref: 21
RING,STOPPER
5115614200
€ 4.50
22
5117341G00
ref: 22
SEAL,DUST
5117341G00
€ 21.00
23
5114624F50
ref: 23
CYLINDER
5114624F50
€ 390.50
24
5114724F50
ref: 24
BOLT
5114724F50
€ 6.50
25
5114841310
ref: 25
GASKET (NAS)
5114841310
€ 2.50
26
5135213A60
ref: 26
NUT,ROD
5135213A60
€ 1.50
27
5117124F50
ref: 27
SPRING,FR
€ 93.00
28
5115840F30
ref: 28
GUIDE,SPRING
5115840F30
€ 7.00
29
5117640F30
ref: 29
SPACER,SPRING
5117640F30
€ 12.50
30
5113024F50
ref: 30
TUBE,OUTER
€ 787.50
31
5135124F50
ref: 31
CAP,FR FORK
€ 202.00
32
6227814100
ref: 32
O RING
6227814100
€ 3.50
33
5116624F50
ref: 33
BOLT
5116624F50
€ 10.50
