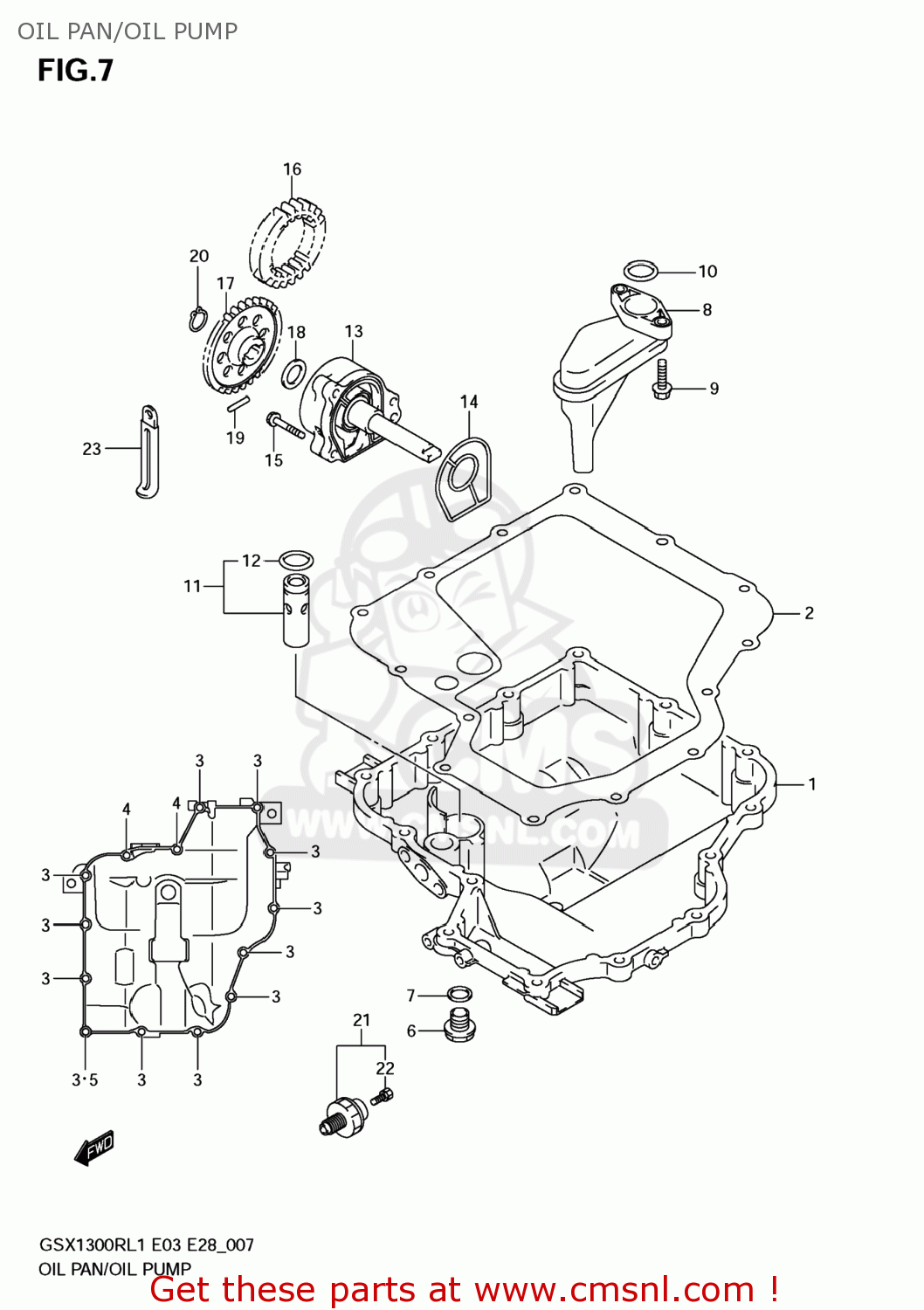

OIL PAN/OIL PUMP

ref

part #

description

quantity

1

1151124F10
ref: 1

PAN,OIL

€ 195.00

2

1148924F01
ref: 2

GASKET,OIL PAN (NAS)

€ 15.50

3

015470630A
ref: 3

BOLT

€ 2.50

4

015470640A
ref: 4

BOLT

€ 2.50

5

0916806023
ref: 5

GASKET(5.8X13X1.2) (NAS)

€ 2.00

6

0924714036
ref: 6

PLUG(14X20)

€ 5.50

7

0916814002
ref: 7
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

8

1652024F00
ref: 8

STRAINER,ENGINE OIL

€ 24.00

9

015500620A
ref: 9

BOLT

€ 2.50

10

0928019008
ref: 10

O RING(D:2.62,ID:20.3)

€ 5.50

11

1644024F00
ref: 11

VALVE ASSY,OIL RELIEF(7K)

€ 41.50

12

0928013004
ref: 12

O RING(D:1.9,ID:13)

€ 2.50

13

1640024F01
ref: 13

PUMP ASSY,ENGINE OIL

€ 165.00

14

1649124F00
ref: 14

O RING,OIL PUMP

€ 5.50

15

015470630A
ref: 15

BOLT

€ 2.50

16

1632133E10
ref: 16

GEAR,OIL PUMP DRIVE

€ 37.00

17

1633133E00
ref: 17

GEAR,OIL PUMP DRIVEN

€ 39.50

18

0918112158
ref: 18

SHIM(12X20X0.5)

€ 2.00

19

0926105006
ref: 19

PIN(5X18)

€ 1.50

20

083313112A
ref: 20

CIRCLIP

€ 2.00

21

3782033D10
ref: 21

SWITCH ASSY,OIL PRESSURE

€ 29.00

22

3782233D00
ref: 22

BOLT,OIL PRESSURE SWITCH

€ 3.00

23

0940406429
ref: 23

CLAMP(L:45)

€ 2.50
