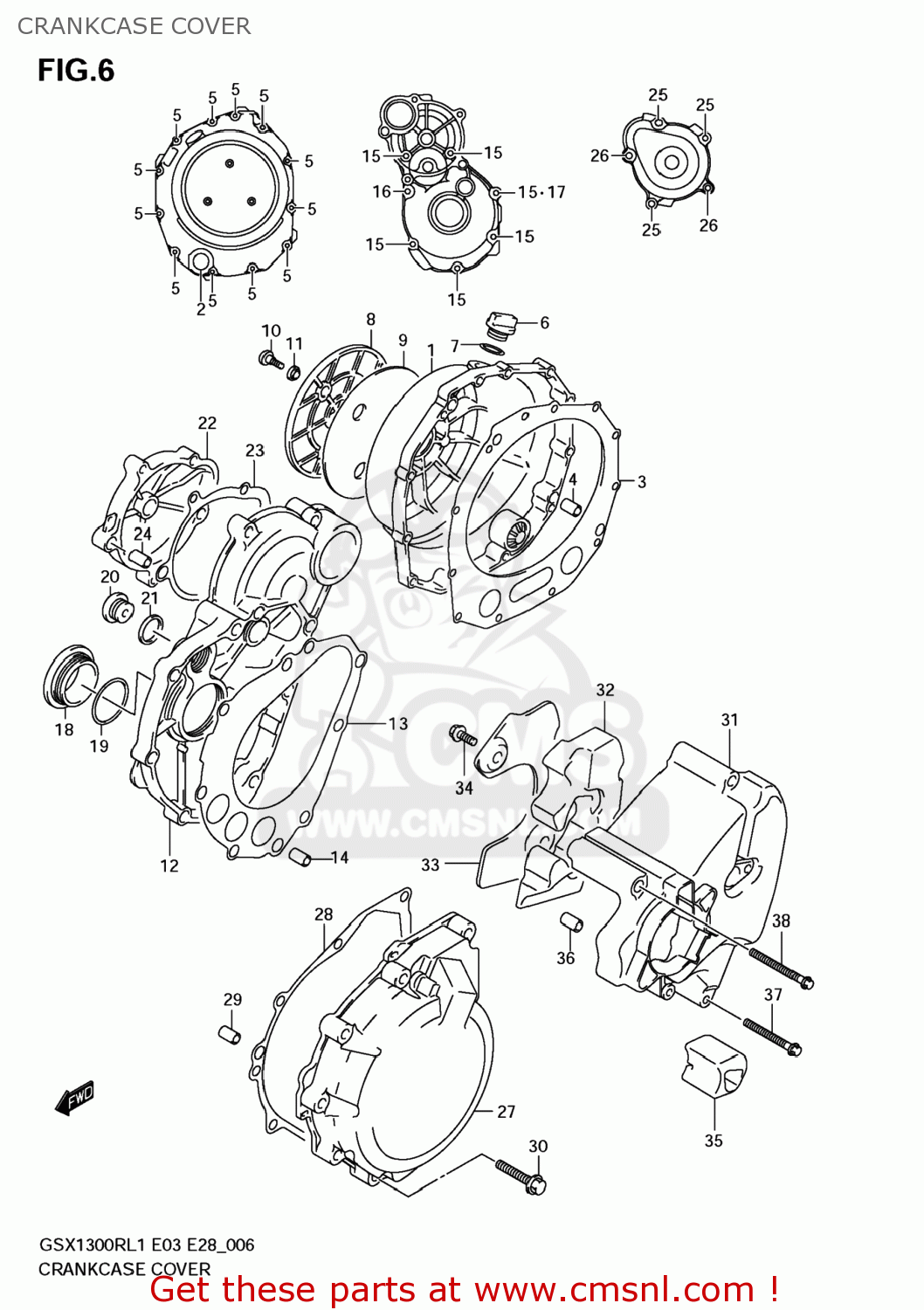

CRANKCASE COVER

ref

part #

description

quantity

1

1134024F01
ref: 1

COVER,CLUTCH

€ 198.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148224F00
ref: 3

GASKET,CL COVER (NAS)

€ 17.00

4

0421109189
ref: 4

PIN

€ 2.00

5

0910306213
ref: 5

BOLT(6X30)

€ 2.50

6

1197125D00
ref: 6

PLUG,ENGINE OIL FILLER

€ 5.50

7

0928017003
ref: 7

O RING(D:3.1,ID:16.8)

€ 2.00

8

1137124F00
ref: 8

COVER,CLUTCH OUTER

€ 42.50

9

1137224F00
ref: 9

CUSHION,CLUTCH OUTER COVER

€ 9.50

10

0913906107
ref: 10

SCREW(6X16)

€ 4.00

11

1137324F00
ref: 11

WASHER,CLUTCH OUTER COV SCREW

€ 3.00

12

1138024F20
ref: 12

COVER,STARTER CLUTCH

€ 174.00

13

1149124F01
ref: 13

GASKET,STARTER CLUTCH COVER (NAS)

€ 9.00

14

0421109149
ref: 14

PIN

€ 2.00

15

0910306212
ref: 15

BOLT(6X25)

€ 2.50

16

0910306214
ref: 16

BOLT(6X35)

€ 2.50

17

0916806023
ref: 17

GASKET(5.8X13X1.2) (NAS)

€ 2.00

18

0925936021
ref: 18

PLUG

€ 11.00

19

0928033004
ref: 19

O RING(D:3.1,ID:32.7)

€ 2.50

20

0924816012
ref: 20

PLUG,16X8

€ 4.50

21

0916816002
ref: 21

GASKET(16X22X2) (NAS)

€ 2.00

22

1138224F20
ref: 22

CAP,STARTER IDLE GEAR

€ 46.00

23

1149224F00
ref: 23

GASKET,START IDLE GEAR CAP (NAS)

€ 6.50

24

0421109149
ref: 24

PIN

€ 2.00

25

0910306212
ref: 25

BOLT(6X25)

€ 2.50

26

0910306214
ref: 26

BOLT(6X35)

€ 2.50

27

1135124F00
ref: 27

COVER,MAGNETO

€ 73.00

28

1148324F00
ref: 28

GASKET,MAGNETO COVER (NAS)

€ 10.00

29

0421109149
ref: 29

PIN

€ 2.00

30

0910306213
ref: 30

BOLT(6X30)

€ 2.50

31

1136115H00
ref: 31

COVER,ENGINE SPROCKET

€ 105.50

32

1136215H00
ref: 32

DAMPER,ENG SPROCKET COVER

€ 13.50

33

1136315H00
ref: 33

PLATE,ENGINE SPROCKET COVER

€ 11.50

34

0910306172
ref: 34

BOLT(6X12)

€ 2.00

35

1136415H00
ref: 35

PROTECTOR,ENGINE SPRKT COVER

€ 5.00

36

0421109149
ref: 36

PIN

€ 2.00

37

0910306216
ref: 37

BOLT(6X55)

€ 2.50

38

0910306239
ref: 38

BOLT(6X65)

€ 3.50
