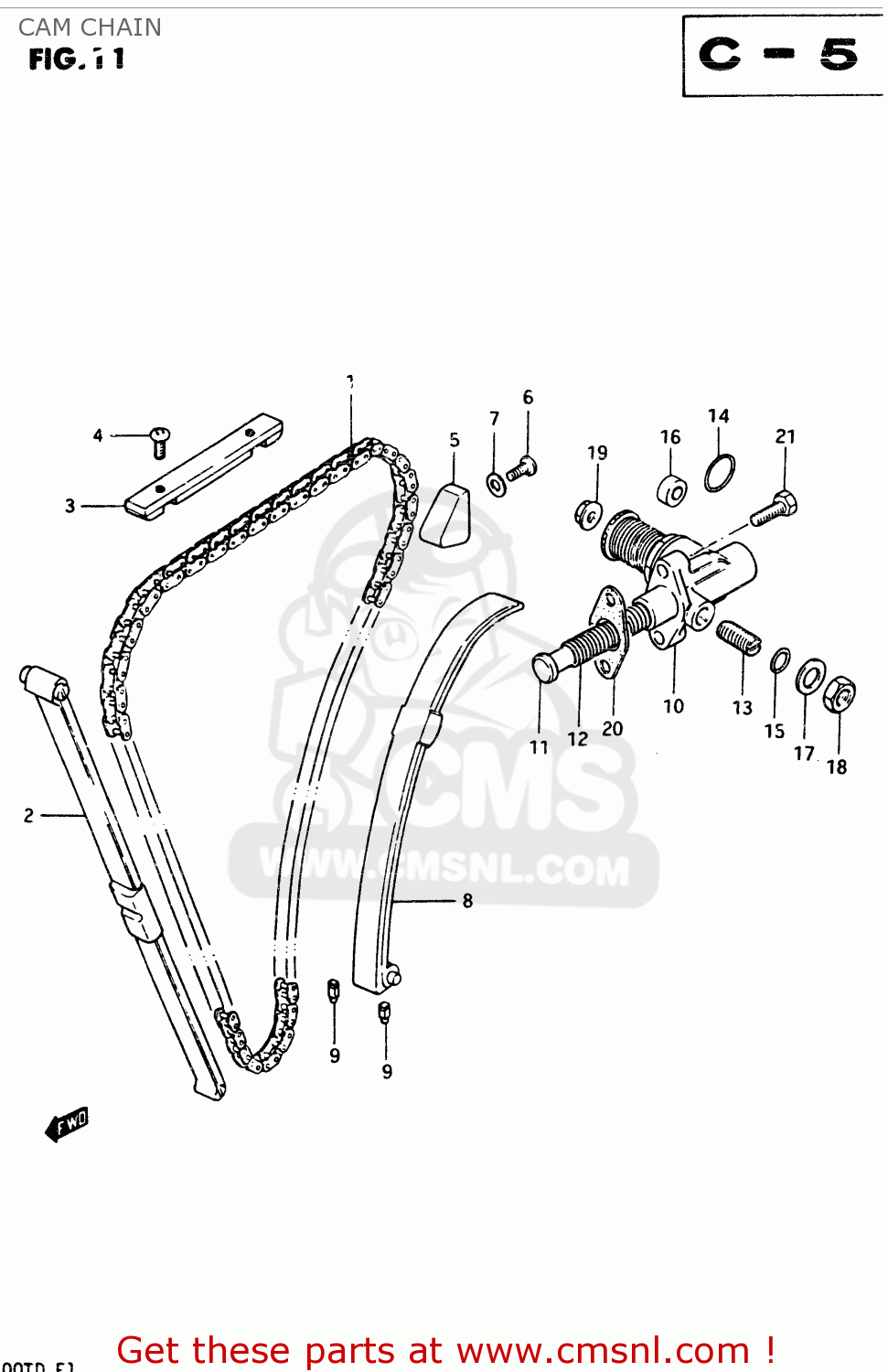

CAM CHAIN

ref

part #

description

quantity

1

1276045040
ref: 1

CHAIN,CAMSHAFT DRIVE(120L)

€ 112.00

2

1277144201
ref: 2

GUIDE, CAM CHAIN NO.1

€ 25.50

3

1278247040
ref: 3

GUIDE,CAM CHAIN NO.3

€ 89.50

4

0211205128
ref: 4

SCREW

€ 2.50

5

1279145040
ref: 5

GUIDE,CAM CHAIN

€ 8.50

6

0151706128
ref: 6

BOLT

€ 2.50

7

0916806009
ref: 7

GASKET (NAS)

€ 2.00

8

1281044250
ref: 8

TENSIONER,CAM CHAIN

€ 62.50

9

1281444101
ref: 9

CUSHION,CAM CHAIN TENSIONER

€ 8.50

10

1283009300
ref: 10

ADJUSTER,CAM CHAIN TENSIONER

€ 167.00

11

1283347001
ref: 11

ROD,PUSH

€ 25.00

12

0944012017
ref: 12

SPRING

€ 2.50

13

1283845001
ref: 13

SCREW

€ 6.00

14

0928021001
ref: 14

O-RING

€ 4.50

15

0928006003
ref: 15

O-RING

€ 2.50

16

0928410003
ref: 16

OIL SEAL

€ 4.00

17

0832211088
ref: 17

WASHER

€ 2.00

18

0831012088
ref: 18

NUT

€ 2.00

19

0831616065
ref: 19

NUT

€ 2.50

20

1283747000
ref: 20

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

21

0912806024
ref: 21

SCREW (6X25)

€ 2.50

all assemblies
