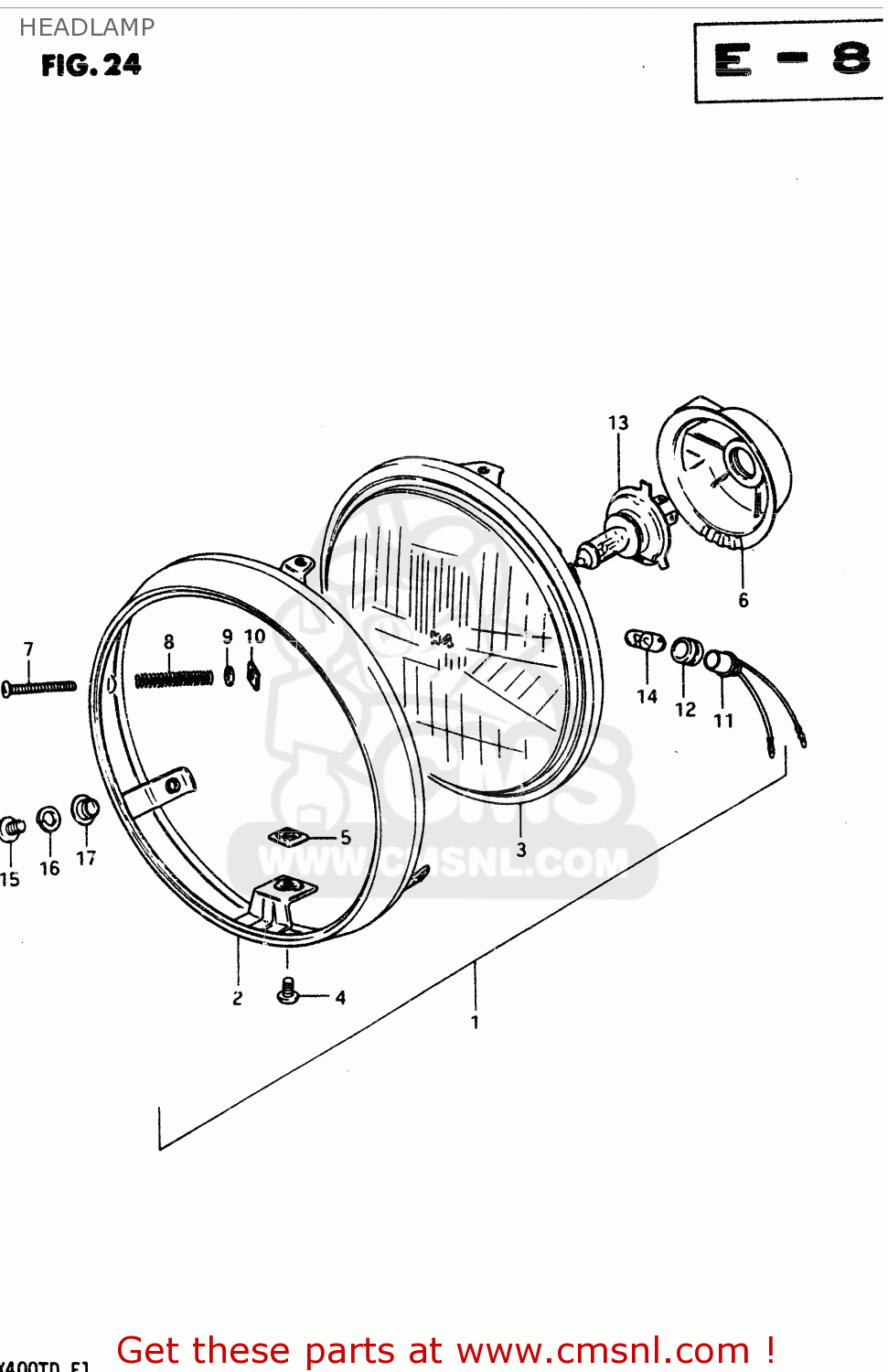

HEADLAMP

ref

part #

description

quantity

1-1

3510033230999
ref: 1-1
E1

HEADLAMP ASSEMBLY

€ 0.00

1-2

3510033250999
ref: 1-2
E17,E21,E22,E25

HEADLAMP ASSY

€ 153.50

2

3511133240
ref: 2

RIM

€ 40.50

3-1

3512133230
ref: 3-1
E1

LAMP UNIT

€ 108.00

3-2

3512133240
ref: 3-2
E17,E21,E22,E25

LAMP UNIT

€ 141.50

4

0211205088
ref: 4

SCREW

€ 2.00

5

3513512610
ref: 5

NUT,ADJUSTING

€ 2.00

6

3517345200
ref: 6

COVER,SOCKET

€ 14.00

7-1

3515133240
ref: 7-1
E1

SCREW,HEADLAMP ADJUST

€ 3.50

7-2

3515133250
ref: 7-2
E17,E21,E22,E25

SCREW

€ 3.50

8

3515448510
ref: 8

SPRING

€ 2.50

9

3515727630
ref: 9

WASHER

€ 2.50

10

3515248510
ref: 10

NUT,HEADLAMP ADJUSTER

€ 3.00

11

3611830691
ref: 11
E17,E21,E22,E25

SOCKET

€ 12.00

12

3611622630
ref: 12
E17,E21,E22,E25

JOINT,RUBBER

€ 5.00

13

0947112060
ref: 13
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

14

0947112063
ref: 14
E17,E21,E22,E25 EXEC

BULB(12V4W)

€ 6.00

15

0912505022
ref: 15

SCREW

€ 3.50

16

0916205003
ref: 16

WASHER,LOCK

€ 2.00

17

0916906021
ref: 17

WASHER

€ 2.50
