GEAR SHIFTING
GSX400T 1983 (D) GENERAL EXPORT (E01)

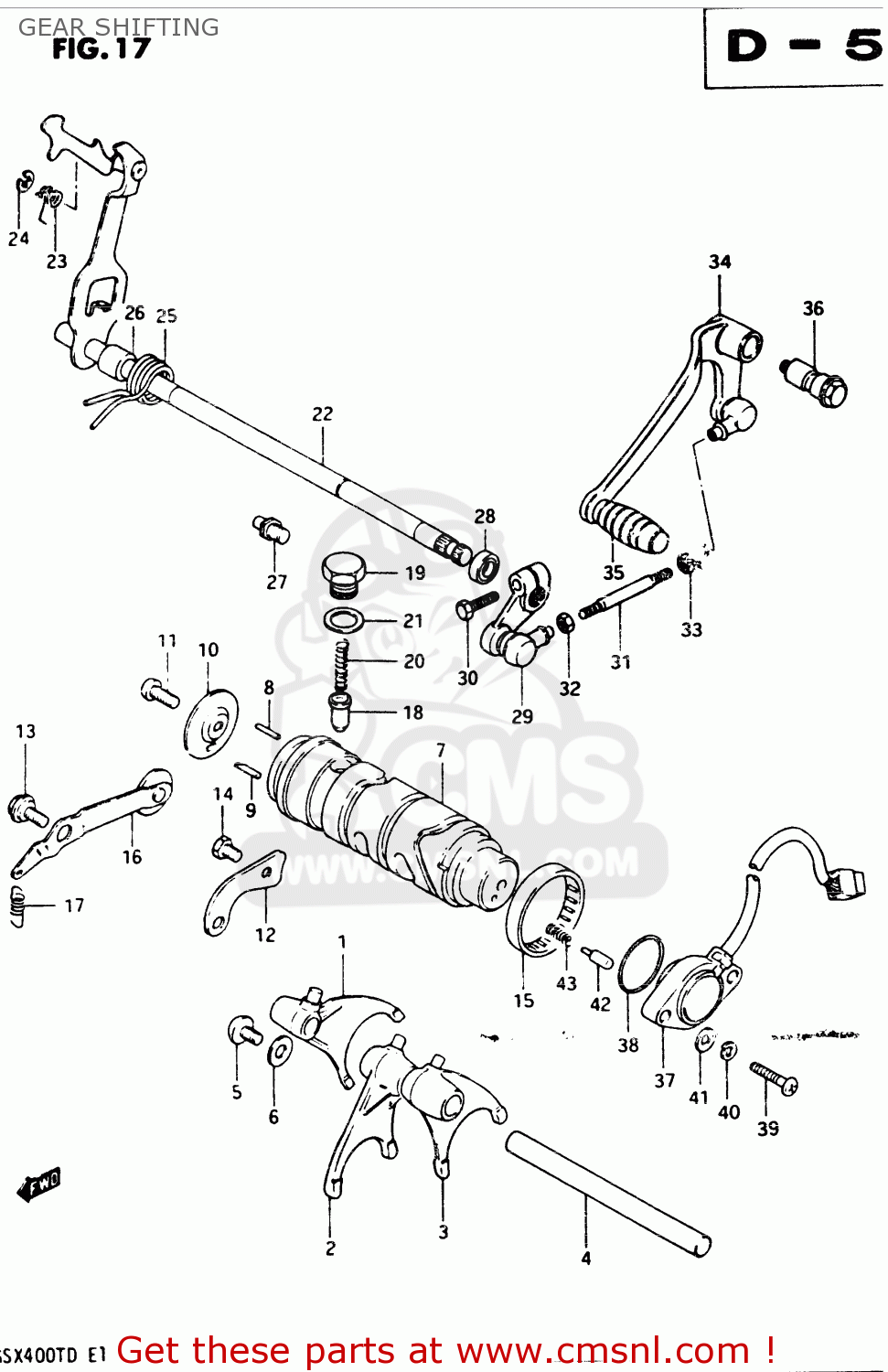

Gear shifting diagram GSX400T 1983 (D) GENERAL EXPORT (E01)
GEAR SHIFTING GSX400T 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2521144001
ref: 1
FORK,GEAR SHIFT NO.1
€ 70.00
2
2522144001
ref: 2
FORK,GEAR SHIFT NO.2
€ 74.50
3
2523144000
ref: 3
FORK,GEAR SHIFT NO.2
€ 74.50
4
2541131000
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.50
5
0214206108
ref: 5
SCREW
€ 2.00
6
0821106141
ref: 6
WASHER
€ 2.50
7
2531147001
ref: 7
CAM,GEAR SHIFT
€ 68.50
8
0926104001
ref: 8
PIN(4X18.5)
€ 1.50
9
0920904013
ref: 9
PIN
€ 5.00
10
2532244000
ref: 10
RETAINER,GEAR SHIFT CAM DR PIN
€ 2.50
11
0211206168
ref: 11
SCREW
€ 2.50
12
2534144000
ref: 12
GUIDE,GEAR SHIFTING CABLE
€ 6.00
13
0911106019
ref: 13
BOLT
€ 1.50
14
0110706168
ref: 14
BOLT, UPPER
€ 3.00
15
0926340001
ref: 15
BEARING(40X47X12)
€ 21.00
16
2535044000
ref: 16
STOPPER,GEAR SHIFT CAM NO.1
€ 10.50
17
0944309007
ref: 17
SPRING
€ 14.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
20
0944006020
ref: 20
SPRING
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
22
2551044100
ref: 22
SHAFT,GEAR SHIFT
€ 83.50
23
0944813008
ref: 23
SPRING
€ 7.00
24
0833211078
ref: 24
E RING
€ 2.00
25
0944426012
ref: 25
SPRING
€ 3.50
26
0918012068
ref: 26
SPACER(12X20X15.3)
€ 3.00
27
2567101000
ref: 27
STOPPER,GEAR SHIFT CAM
€ 3.00
28
0928512002
ref: 28
OIL SEAL
€ 7.00
29
2552047020
ref: 29
ARM,GEAR SHIFT LINK
€ 53.50
30
0110706208
ref: 30
BOLT
€ 2.00
31
2552533200
ref: 31
ROD,GEAR SHIFT LINK
€ 6.00
32
0831011068
ref: 32
NUT
€ 2.50
33
0914006011
ref: 33
NUT
€ 1.50
34
2560033210
ref: 34
LEVER ASSY,GEAR SHIFT
€ 57.00
35
2565216500
ref: 35
RUBBER,GEAR SHIFT PEDAL
€ 4.00
36
2561744101
ref: 36
SHAFT,GEAR SHIFT LEVER
€ 9.00
37
3772033200
ref: 37
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
38
0928026003
ref: 38
O-RING (D:2.4 ID:26.2)
€ 2.50
39
0211205208
ref: 39
SCREW 5X20
€ 3.00
40
0832121058
ref: 40
LOCK WASHER
€ 2.00
41
0832221058
ref: 41
WASHER
€ 2.50
42
0920905011
ref: 42
PIN(5X15.5)
€ 2.00
43
0944004010
ref: 43
SPRING
€ 1.50
