SIGNAL GENERATOR

GSX400T 1983 (D) GENERAL EXPORT (E01)

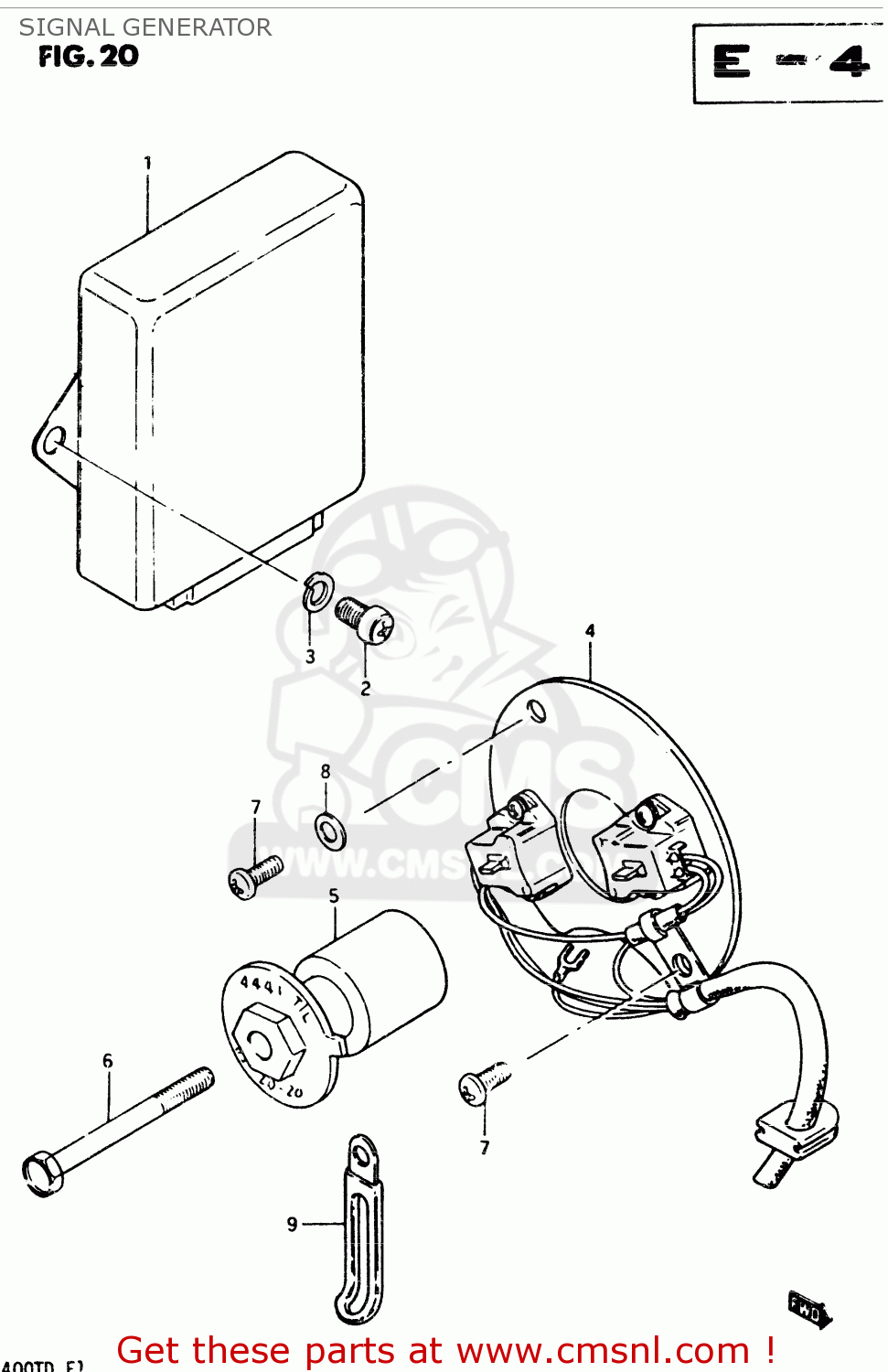

Signal generator diagram GSX400T 1983 (D) GENERAL EXPORT (E01)

SIGNAL GENERATOR GSX400T 1983 (D) GENERAL EXPORT (E01)

SIGNAL GENERATOR GSX400T 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3290044410
ref: 1

IGNITER UNIT A

€ 531.00

2

0211206108
ref: 2

SCREW

€ 1.50

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

3311044410
ref: 4

SIGNAL GENERATOR ASSEMBLY

€ 292.50

5

3312044410
ref: 5

ROTOR, SIGNAL

€ 90.00

6

0110706608
ref: 6

BOLT 6X60

€ 2.50

7

0912505024
ref: 7

SCREW(5X12)

€ 2.00

8

0916005027
ref: 8

WASHER

€ 2.50

9

0940406401
ref: 9

CLAMP L:35

€ 2.50
