GENERATOR
GSX400T 1983 (D) GENERAL EXPORT (E01)

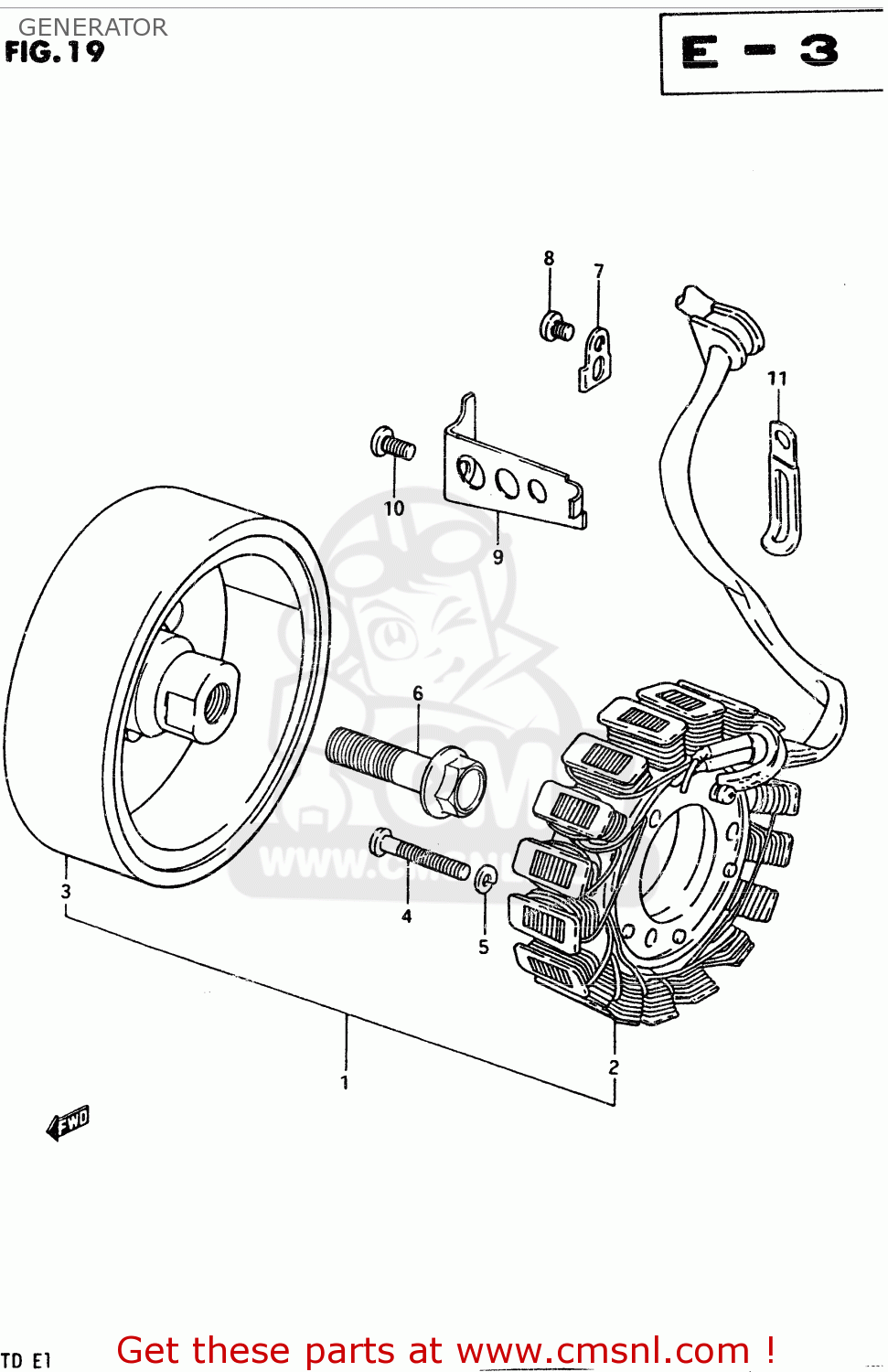

Generator diagram GSX400T 1983 (D) GENERAL EXPORT (E01)
GENERATOR GSX400T 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3140047021
ref: 1
GENERATOR ASSEMBLY
€ 371.00
2
3140147021
ref: 2
STATOR ASSEMBLY
€ 371.00
3
3140245090
ref: 3
ROTOR ASSEMBLY
€ 385.00
4
0211205308
ref: 4
SCREW
€ 1.50
5
0832121058
ref: 5
LOCK WASHER
€ 2.00
6
0910312004
ref: 6
BOLT(12X40)
€ 3.00
7
3149745000
ref: 7
CLAMP,GENERATOR LEAD WIRE
€ 1.50
8
0211205088
ref: 8
SCREW
€ 2.00
9
3149845000
ref: 9
CLAMP,GENERATOR LEAD WIRE
€ 2.00
10
0211206108
ref: 10
SCREW
€ 1.50
11
0940406401
ref: 11
CLAMP L:35
€ 2.50
