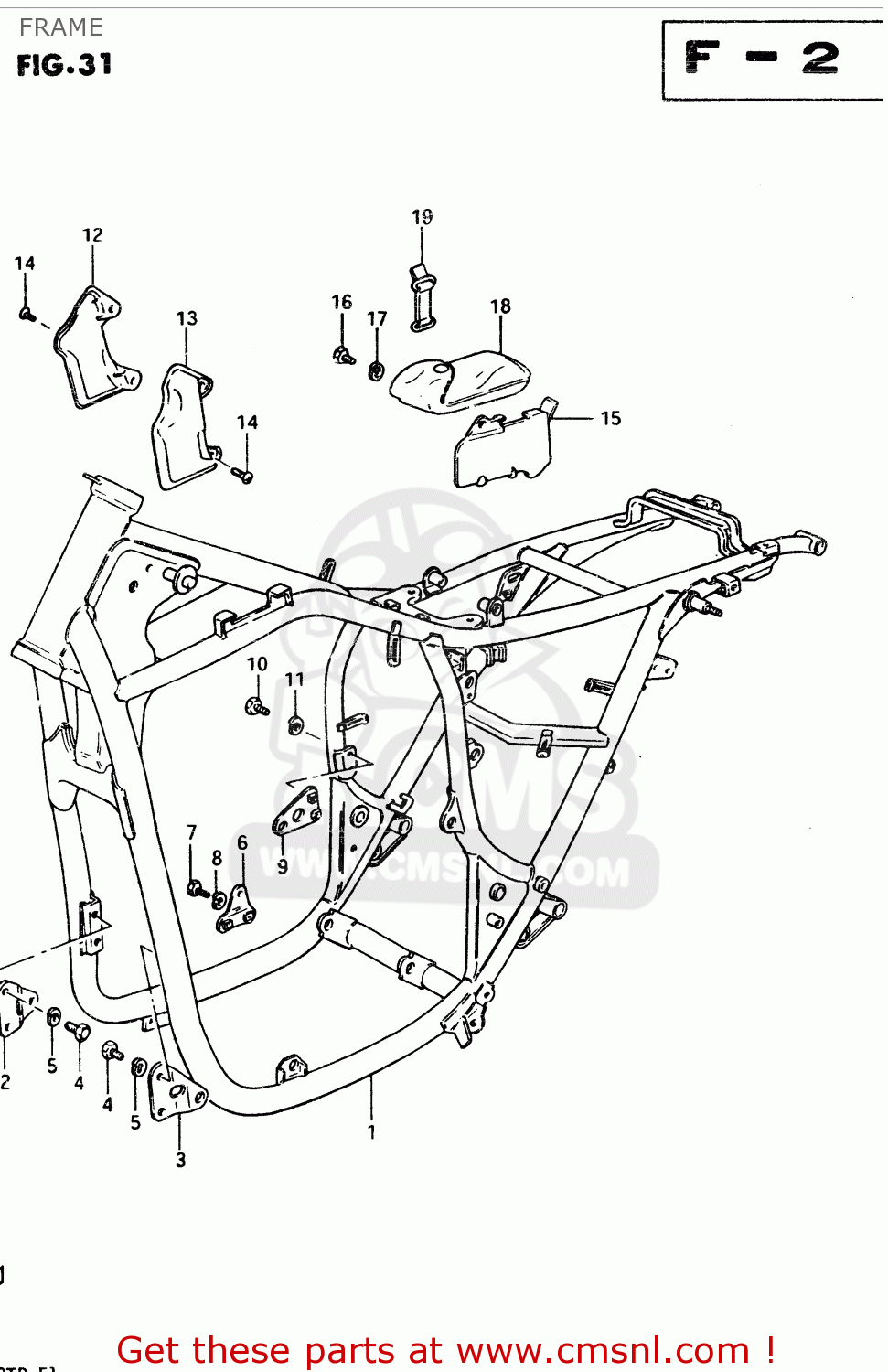

FRAME

ref

part #

description

quantity

1-1

4110044700019
ref: 1-1

FRAME

€ 1,047.50

1-2

4110044740019
ref: 1-2
E17

FRAME (BLACK)

€ 0.00

1-3

4110044720019
ref: 1-3
E22

FRAME (BLACK)

€ 0.00

2

4199144400019
ref: 2

PLATE,ENG MTG NO.1,R

€ 10.00

3

4199244400019
ref: 3

PLATE,ENGINE MOUNTING,LEFT

€ 8.50

4

0110708168
ref: 4

BOLT

€ 2.00

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

4192044110019
ref: 6

PLATE,MOUNTING NO.2,LEFT

€ 0.00

7

0110708168
ref: 7

BOLT

€ 2.00

8

0832121088
ref: 8

LOCK WASHER

€ 2.00

9

4197011500019
ref: 9

PLATE,MOUNTING NO.4,LEFT

€ 12.00

10

0110708458
ref: 10

BOLT 8X45

€ 2.50

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

5187644500
ref: 12

COVER,FRAME HEAD,RIGHT

€ 6.00

13

5188644500
ref: 13

COVER,FRAME HEAD,LEFT

€ 9.00

14

0214205125
ref: 14

SCREW M5X12 DIN 7985/N

€ 1.50

15

4743044400
ref: 15

HOLDER,TOOL

€ 11.50

16

0110706108
ref: 16

BOLT

€ 2.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

0980006800
ref: 18

TOOL SET

€ 52.00

19

0946200072
ref: 19

BAND

€ 3.50
