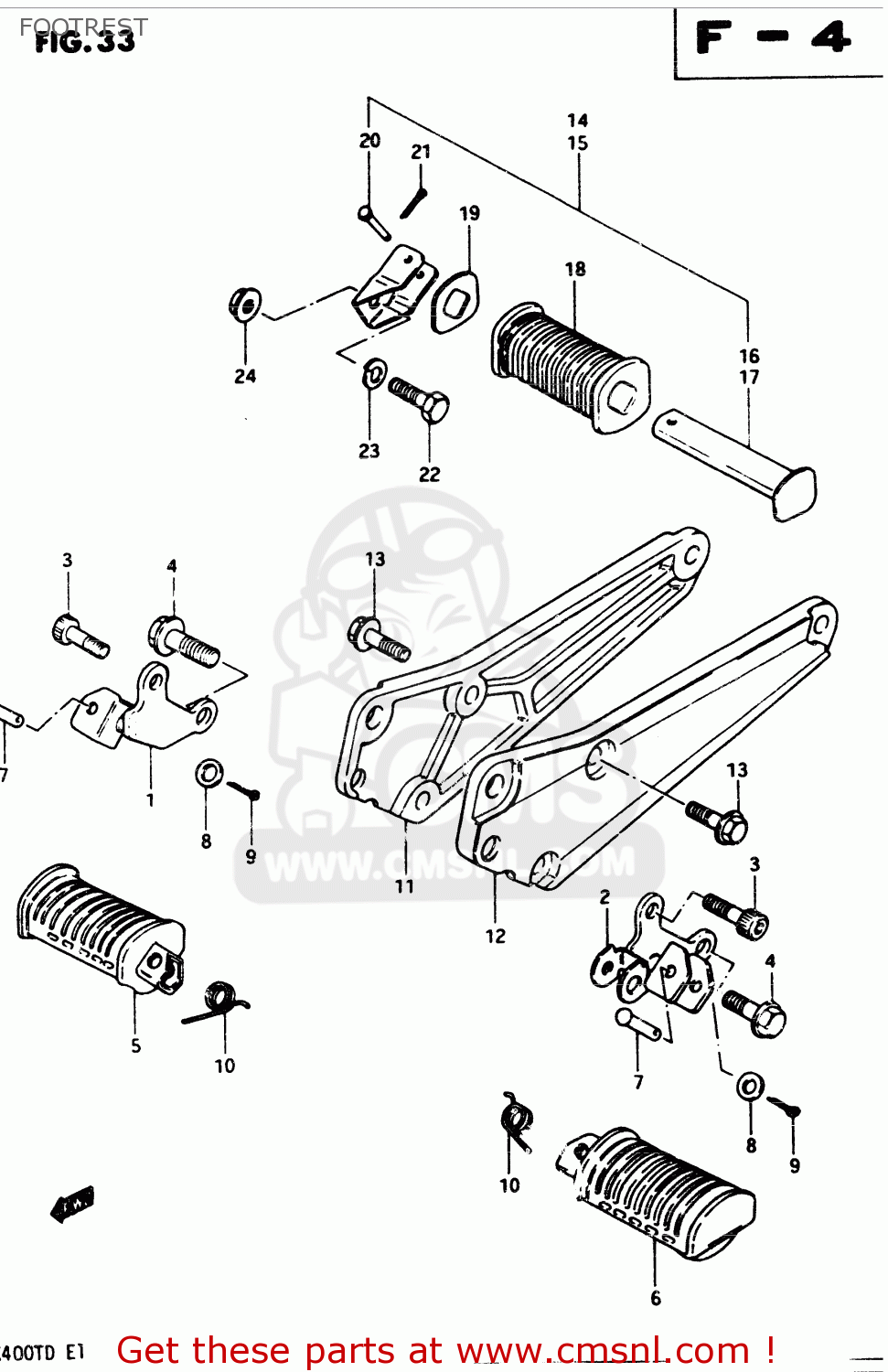

FOOTREST

ref

part #

description

quantity

1

4351044700
ref: 1

BAR, FOOTREST RH

€ 48.00

2

4352044700
ref: 2

BAR, FOOTREST LH

€ 50.50

3

0910608017
ref: 3

BOLT

€ 3.00

4

0152710258
ref: 4

BOLT

€ 3.00

5

4355037301
ref: 5

RUBBER,PILLION FOOTREST,R

€ 22.50

6

4356037301
ref: 6

RUBBER,PILLION FOOTREST,L

€ 22.50

7

0920008002
ref: 7

PIN

€ 2.00

8

0832211088
ref: 8

WASHER

€ 2.00

9

0411120208
ref: 9

PIN 20X20

€ 1.50

10

0944814012
ref: 10

SPRING

€ 3.00

11

4381144110
ref: 11

BRACKET,MUFFLER,RIGHT

€ 102.00

12

4382144110
ref: 12

BRACKET,MUFFLER,LEFT

€ 120.00

13

0152710258
ref: 13

BOLT

€ 3.00

14

4360034500
ref: 14

FOOTREST ASSY,PILLION,R

€ 118.00

15

4370034500
ref: 15

FOOTREST ASSY,PILLION,L

€ 107.50

16

4361049201
ref: 16

BAR,REAR FOOTREST,RIGHT

€ 8.00

17

4362049201
ref: 17

BAR,REAR FOOTREST,LEFT

€ 23.00

18

4361249201
ref: 18

RUBBER,PILLION FOOTREST

€ 30.50

19

4363149201
ref: 19

WASHER,FOOTREST RUBBER

€ 16.00

20

0920006010
ref: 20

PIN

€ 2.50

21

0411120208
ref: 21

PIN 20X20

€ 1.50

22

0110710358
ref: 22

BOLT,M10X1.25X

€ 2.50

23

0832121108
ref: 23

LOCK WASHER

€ 2.00

24

0831616108
ref: 24

NUT

€ 2.00

all assemblies
