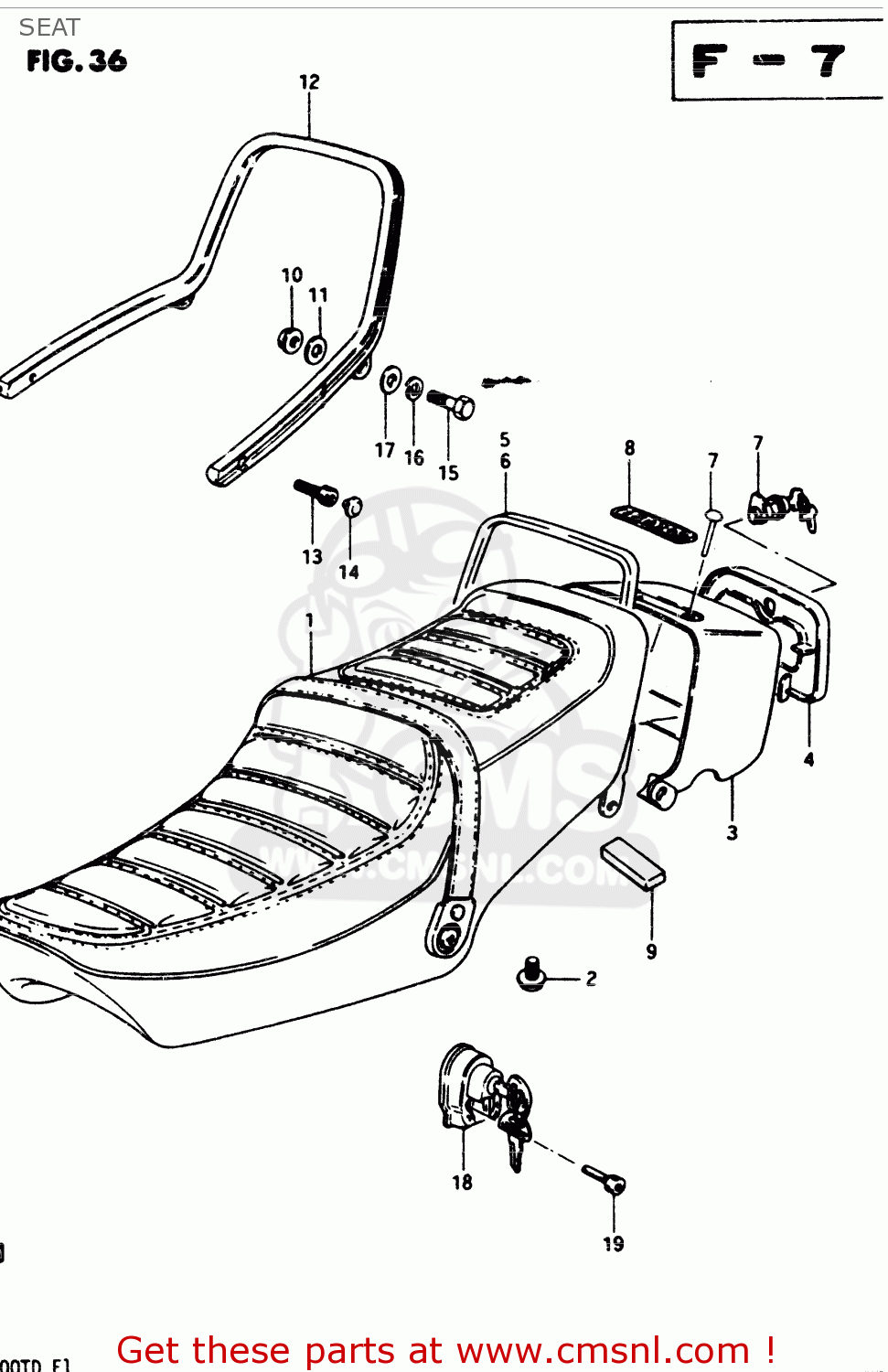

SEAT

ref

part #

description

quantity

1

4510011950480
ref: 1

SEAT ASSY (BLACK)

€ 0.00

2

0151706168
ref: 2

BOLT

€ 1.50

3-1

455111195000J
ref: 3-1

TAIL COVER, SEAT (RED)

€ 59.00

3-2

455111195014W
ref: 3-2

COVER,SEAT TAIL

€ 59.00

4-1

455251195000J
ref: 4-1

LID, TAIL COVER (RED)

€ 25.00

4-2

455251195014W
ref: 4-2

LID,TAIL COVER

€ 25.00

5

4551811950
ref: 5

WEATHERSTRIP,TAIL COVER

€ 0.00

6

4551911950
ref: 6

WEATHER STRIP, TAIL COVER NO.2

€ 0.00

7

0922904016
ref: 7

RIVET

€ 1.50

8

6823444500
ref: 8

EMBLEM

€ 8.00

9

4556211950
ref: 9

CUSHION,TAIL SEAT COVER

€ 2.50

10

0916006003
ref: 10

WASHER (6.7X16X1.8)

€ 2.00

11

0831616068
ref: 11

NUT

€ 2.50

12

9570005350KEY
ref: 12

LOCK SET,TAIL COVER

€ 33.50

13

4621011950
ref: 13

HANDLE, PILLION RIDER

€ 181.00

14

0910608017
ref: 14

BOLT

€ 3.00

15

0925006004
ref: 15

CAP(OD:14.5)

€ 1.50

16

0120408257
ref: 16

BOLT

€ 2.00

17

0832121088
ref: 17

LOCK WASHER

€ 2.00

18

0832221088
ref: 18

WASHER

€ 2.00

19

9570034210
ref: 19

LOCK ASSY,HELMET

€ 59.00

20

0910605008
ref: 20

BOLT 5X25

€ 2.00

all assemblies
