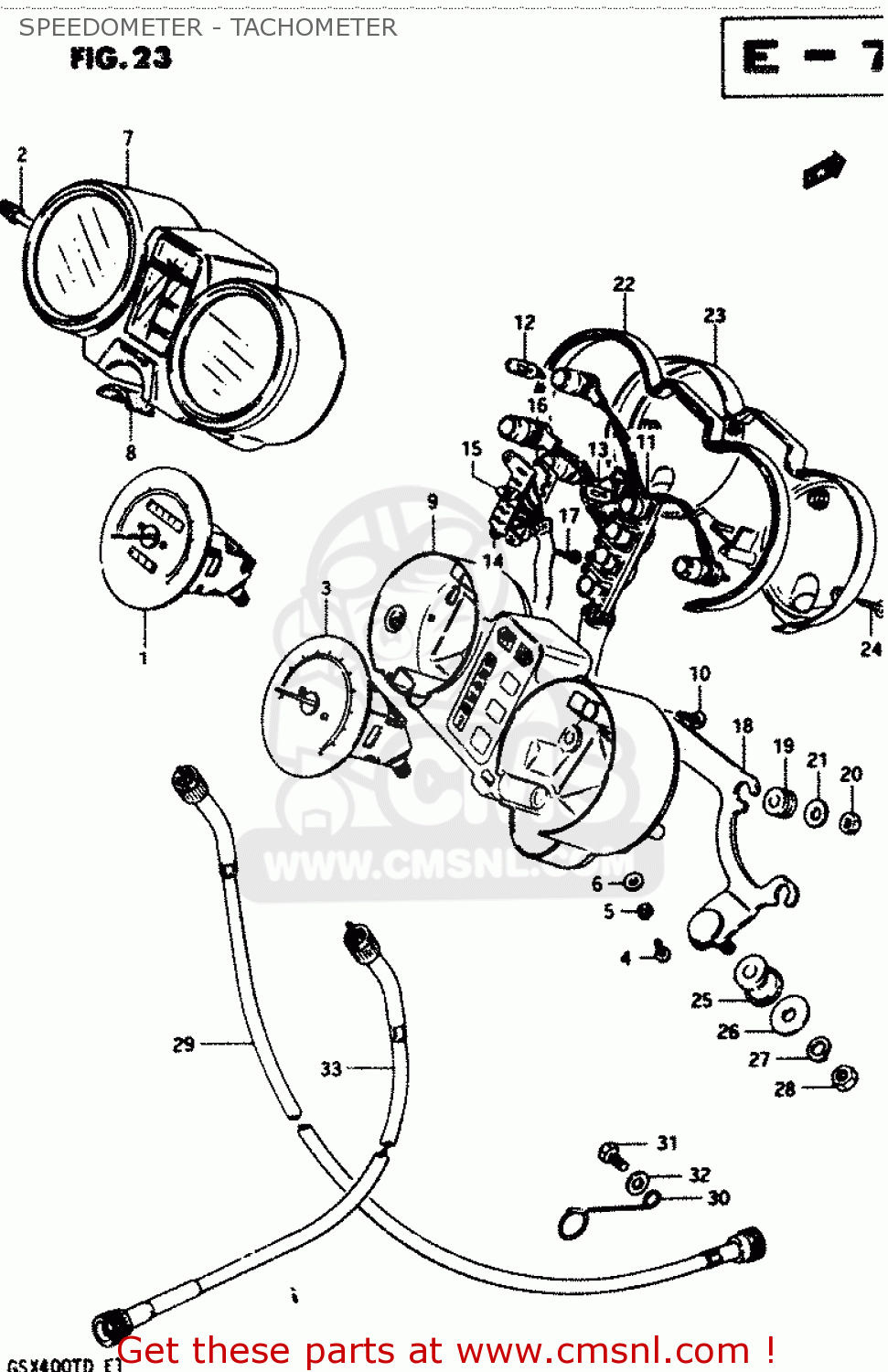

SPEEDOMETER - TACHOMETER - GSX400T 1983 (D) GENERAL EXPORT (E01)

ref

part #

description

quantity

1-1

3412044910
ref: 1-1

SPEEDOMETER (KILO)

€ 314.00

1-2

3412044720
ref: 1-2

SPEEDOMETER (MILE/KILO)

€ 147.00

2

3498045020
ref: 2

KNOB

€ 4.50

3

3422044710
ref: 3

METER,TACHOMETER

€ 192.00

4

0211204108
ref: 4

SCREW 4X10

€ 2.00

5

0832221048
ref: 5

WASHER

€ 2.00

6

0832121048
ref: 6

LOCK WASHER

€ 2.00

7

3415044910
ref: 7

HOOD,METER

€ 80.00

8

3499347000
ref: 8

SEAL,IGNITION SWITCH

€ 3.00

9

3411144910
ref: 9

CASE,METER,INNER

€ 75.00

10

0214204127
ref: 10

SCREW

€ 2.00

11

3632144710
ref: 11

SOCKET

€ 0.00

12

0947112028
ref: 12

BULB(12V3.4W,T10)

€ 3.50

13

0947112077
ref: 13

BULB(12V1.7W,T10,WB121)

€ 1.00

14

3645344910
ref: 14

SOCKET,GEAR INDICATOR

€ 122.00

15

0947112078
ref: 15

BULB(14V1.12W,BQ041-32503B)

€ 6.50

16

3645444910
ref: 16

COVER,INDICATOR,LOWER

€ 4.50

17

0321103168
ref: 17

SCREW

€ 1.50

18

3495044910
ref: 18

BRACKET,COMBINATION METER

€ 30.00

19

3418944910
ref: 19

CUSHION,METER

€ 5.00

20

0831011058
ref: 20

NUT

€ 2.50

21

0916005017
ref: 21

WASHER (5.5X16X1.2)

€ 2.50

22

3496144910
ref: 22

COVER,METER,UNDER

€ 59.00

23

3419344910
ref: 23

COVER,LWR

€ 40.00

24

0214204127
ref: 24

SCREW

€ 2.00

25

3495631001
ref: 25

CUSHION,METER BRACKET

€ 4.50

26

0916008057
ref: 26

WASHER (8.5X20X1.6)

€ 2.00

27

0832121085
ref: 27

LOCK WASHER

€ 2.50

28

0831011085
ref: 28

NUT

€ 1.50

29

3491044400
ref: 29

CABLE ASSY,SPEEDOMETER

€ 27.50

30

3493845100
ref: 30

CLAMP,SPEEDOMETER CABLE

€ 14.50

31

0110706168
ref: 31

BOLT, UPPER

€ 3.00

32

0832221068
ref: 32

WASHER

€ 2.00

33-1

3494033211
ref: 33-1

CABLE ASSEMBLY,TACHOMETER

€ 40.00

33-2

3494034311
ref: 33-2
E2

CABLE ASSEMBLY,TACHOMETER

€ 20.50

SPEEDOMETER - TACHOMETER

all assemblies
