CYLINDER

GSX400T 1983 (D) GENERAL EXPORT (E01)

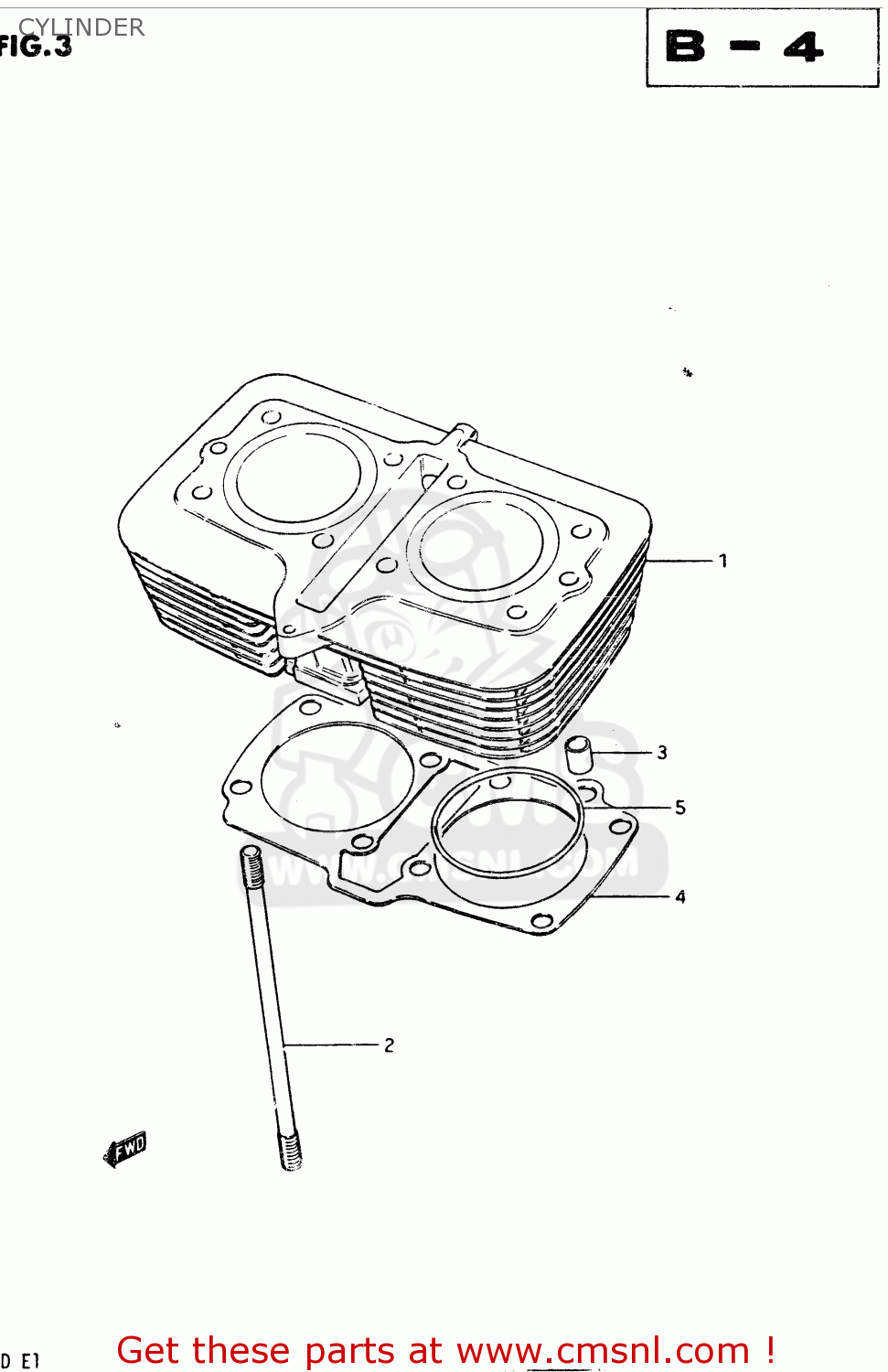

Cylinder diagram GSX400T 1983 (D) GENERAL EXPORT (E01)

CYLINDER GSX400T 1983 (D) GENERAL EXPORT (E01)

CYLINDER GSX400T 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1121044200
ref: 1

CYLINDER

€ 515.50

2

0910810028
ref: 2

STUD

€ 9.00

3

0421111189
ref: 3

PIN

€ 2.00

4-1

1124144100
ref: 4-1

GASKET,CYLINDER (MCA)

€ 12.50

4-2

1124144110
ref: 4-2
E22

GASKET (T:1.2) (MCA)

€ 10.50

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50
