FRONT WHEEL (SPOKE WHEEL E2, E17)

GSX400T 1983 (D) GENERAL EXPORT (E01)

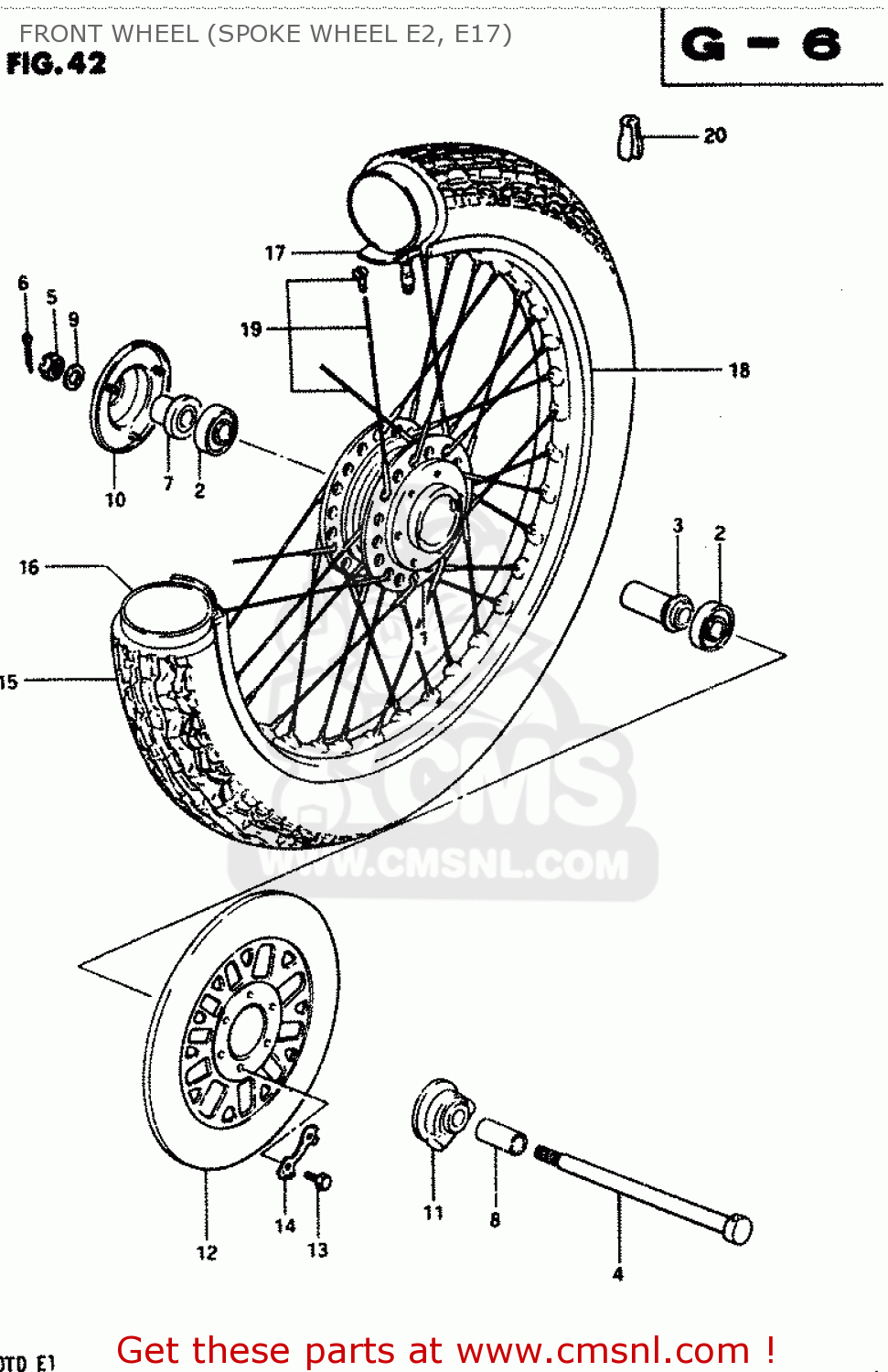

Front wheel (spoke wheel e2, e17) diagram GSX400T 1983 (D) GENERAL EXPORT (E01)

FRONT WHEEL (SPOKE WHEEL E2, E17) GSX400T 1983 (D) GENERAL EXPORT (E01)
FRONT WHEEL (SPOKE WHEEL E2, E17) GSX400T 1983 (D) GENERAL EXPORT (E01)
FRONT WHEEL (SPOKE WHEEL E2, E17) GSX400T 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5411147001
ref: 1
DRUM,FRONT HUB
5411147001
€ 194.50
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
5471133002
ref: 4
AXLE,FRONT
5471133002
€ 41.00
5
0831431128
ref: 5
NUT 12MM
0831431128
€ 2.00
6
0411130308
ref: 6
COTTER PIN
0411130308
€ 1.50
7
5474018410
ref: 7
SPACER,FR HUB BEARING,R
5474018410
€ 17.00
8
0918015034
ref: 8
SPACER(15X22X30)
0918015034
€ 7.00
9
0832221128
ref: 9
WASHER
0832221128
€ 2.00
10
5487145000
ref: 10
COVER,FR HUB,R
5487145000
€ 6.00
11
5460045200
ref: 11
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 90.00
12
5921145200
ref: 12
DISC,FR BRAKE
5921145200
€ 144.00
13
0910008140
ref: 13
BOLT(8X25)
0910008140
€ 2.00
14
0916908016
ref: 14
WASHER
0916908016
€ 3.50
15
5510044315
ref: 15
TIRE (90/90-19) IRC
€ 0.00
16
5520029010
ref: 16
TUBE 2.75-19 070-483MM
€ 0.00
17
5526115010
ref: 17
PROTECTOR,WHL INR TUBE
5526115010
€ 2.50
18
5531134020
ref: 18
RIM,FR WHEEL
5531134020
€ 144.00
19
5532045000
ref: 19
SPOKE ASSY,FR
5532045000
€ 71.00
20-1
5541111000
ref: 20-1
BALANCER,WHEEL (B)
€ 4.50
20-2
5541211000
ref: 20-2
BALANCER,WHEEL (30G)
5541211000
€ 8.00
