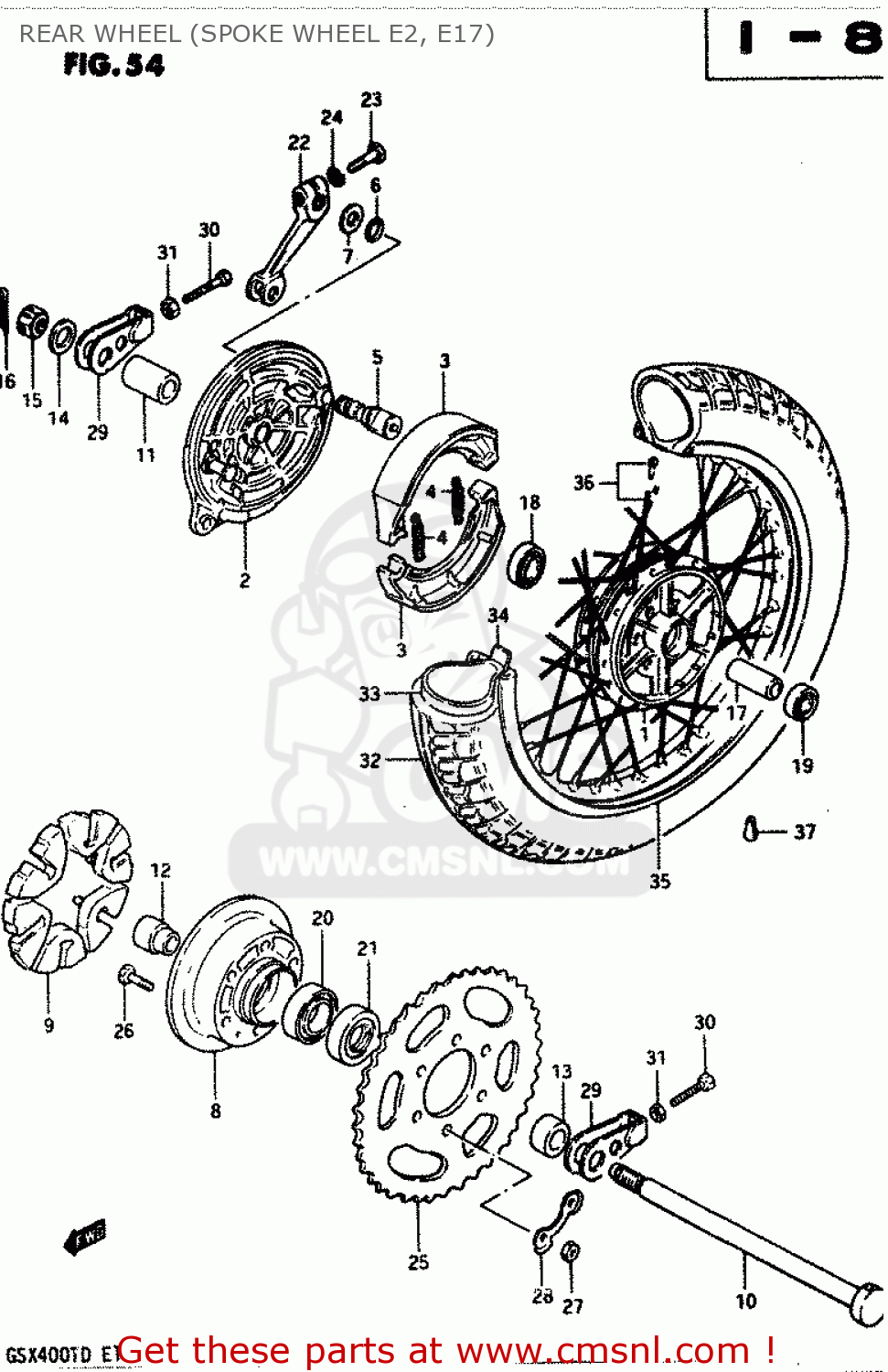

REAR WHEEL (SPOKE WHEEL E2, E17)

ref

part #

description

quantity

1

6411037301
ref: 1

DRUM,REAR HUB

€ 266.50

2

6421044060
ref: 2

PANEL,REAR HUB

€ 111.50

3

6441011301
ref: 3

SHOE,BRAKE

€ 29.50

4

5542030000
ref: 4

SPRING,BRAKE SHOE

€ 3.50

5

5444008003
ref: 5

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7

WASHER (15X24X1.6)

€ 2.50

8

6461144001
ref: 8

DRUM,REAR SPROCKET MOUNT

€ 84.00

9

6465111300
ref: 9

ABSORBER,RR HUB SHOCK

€ 12.50

10

6471133000
ref: 10

AXLE,REAR

€ 33.50

11

0918017043
ref: 11

SPACER(17.5X28X44.8)

€ 7.00

12

6473333000
ref: 12

SPACER,REAR HUB BEARING

€ 20.00

13

0918017042
ref: 13

SPACER(17X30.5X22.3)

€ 8.50

14

0916017013
ref: 14

WASHER (17X30X3.2)

€ 2.00

15

0914116001
ref: 15

NUT

€ 6.50

16

0411140308
ref: 16

PIN,COTTER

€ 1.50

17

0918017056
ref: 17

SPACER (17.6X24X57)

€ 19.00

18

0814363037
ref: 18

BEARING

€ 23.00

19

0814362037
ref: 19

BEARING

€ 18.50

20

0811362057
ref: 20

BEARING

€ 18.00

21

0928530001
ref: 21

SEAL,OIL(30.5X52X8)

€ 20.00

22

6445144400
ref: 22

LEVER,RR BRAKE CAM

€ 42.00

23

0110706258
ref: 23

BOLT

€ 2.00

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

6451144210
ref: 25

SPROCKET,REAR (NT:43)

€ 80.50

26

0911910002
ref: 26

BOLT

€ 3.50

27

0914010026
ref: 27

NUT

€ 2.00

28

0916910006
ref: 28

WASHER

€ 4.50

29

6141044200
ref: 29

ADJUSTER,CHAIN

€ 31.00

30

0910408018
ref: 30

BOLT 8X50

€ 3.00

31

0831012088
ref: 31

NUT

€ 2.00

32

6510044310
ref: 32
IRC

TIRE

€ 0.00

33

6520044300
ref: 33
IRC

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

34

6526144300
ref: 34

PROTECTOR,WHEEL,INNER

€ 3.50

35

6531144300
ref: 35

RIM,REAR WHEEL

€ 0.00

36

6532011405
ref: 36

SPOKE ASSY,RR

€ 52.00

37-1

5541111000
ref: 37-1

BALANCER,WHEEL (B)

€ 4.50

37-2

5541211000
ref: 37-2

BALANCER,WHEEL (30G)

€ 8.00
