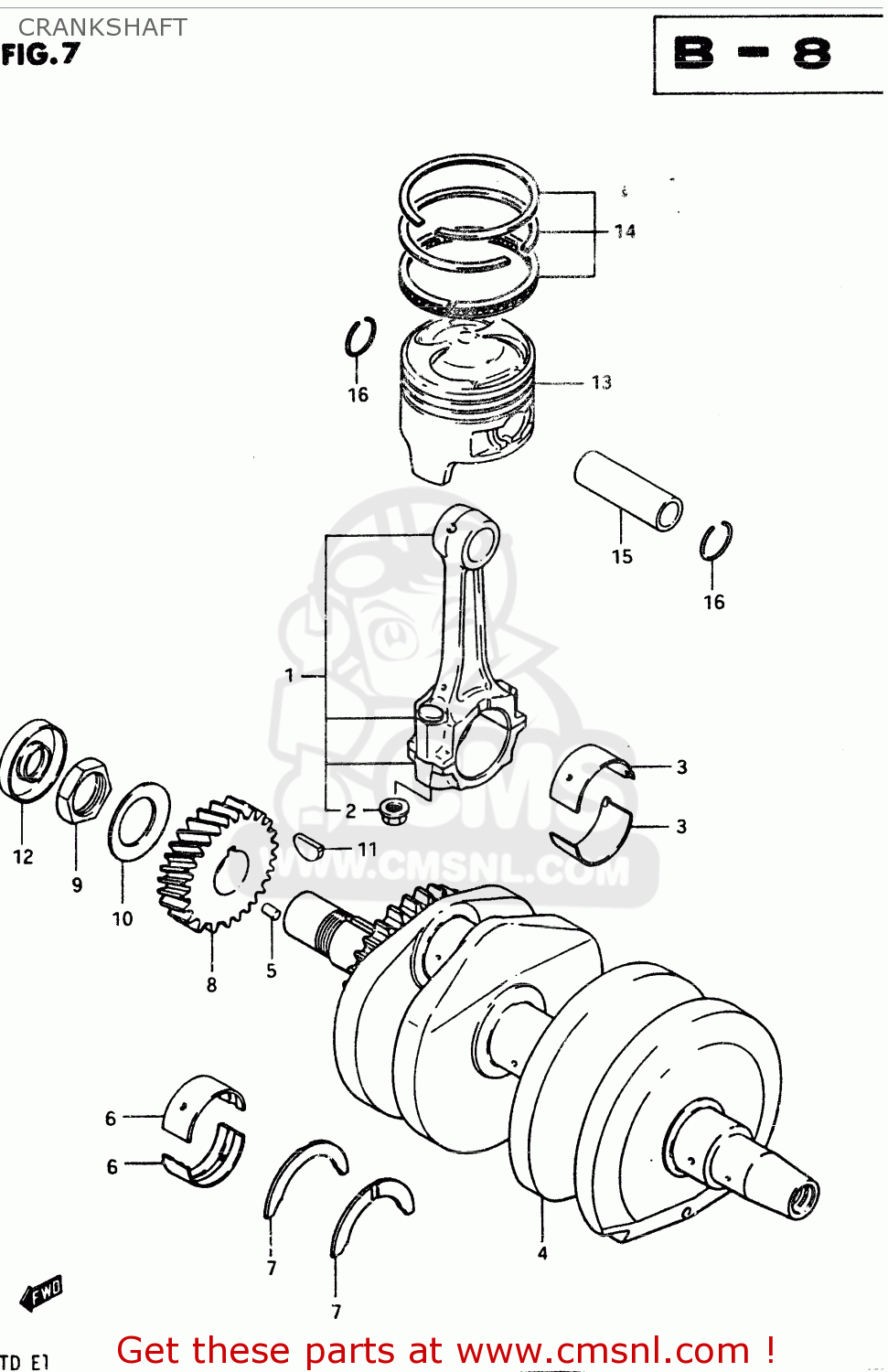

CRANKSHAFT

ref

part #

description

quantity

1

1216044100
ref: 1

ROD ASSEMBLY,CONNECTING

€ 135.50

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216444110010
ref: 3-1

BEARING,CRANK PIN

€ 13.50

3-2

1216444110020
ref: 3-2

BEARING,CRANK PIN

€ 14.50

3-3

1216444110030
ref: 3-3

BEARING,CRANK PIN

€ 14.50

3-4

1216444110040
ref: 3-4

METAL CRANK PIN

€ 15.00

3-5

1216444100025
ref: 3-5
OPT

BEARING,CRANK PIN(US:0.25)

€ 15.50

3-6

1216444100050
ref: 3-6
OPT

BEARING,CRANK PIN(US:0.5)

€ 14.50

4

1222044101
ref: 4

CRANKSHAFT

€ 1,167.50

5

0621103052
ref: 5

PIN 3X5

€ 1.50

6-1

1222944100010
ref: 6-1

METAL CRANKSHAFT

€ 10.50

6-2

1222944100020
ref: 6-2

METAL CRANKSHAFT

€ 11.00

6-3

1222944100030
ref: 6-3

METAL CRANKSHAFT

€ 11.00

6-4

1222944100040
ref: 6-4

METAL CRANKSHAFT

€ 11.00

6-5

1222944100025
ref: 6-5
OPT

BEARING,CRANKSHAFT(US:0.25)

€ 21.50

6-6

1222944100050
ref: 6-6
OPT

BEARING,CRANKSHAFT(US:0.5)

€ 9.50

7

1222844106
ref: 7

BEARING,CRANK THRUST

€ 8.50

8

2111144100
ref: 8

GEAR,PRIMARY DRIVE NO.28

€ 57.50

9

0914024007
ref: 9

NUT

€ 4.50

10

0916425001
ref: 10

WASHER

€ 4.50

11

0834131059
ref: 11

KEY

€ 3.00

12

0928322013
ref: 12

OIL SEAL

€ 10.50

13-1

1211144202
ref: 13-1

PISTON (STD)

€ 49.50

13-2

1211144202050
ref: 13-2
OPT

PISTON (67.50M

€ 93.00

13-3

1211144202100
ref: 13-3
OPT

PISTON (OS:1.0)

€ 88.00

14-1

1214045410
ref: 14-1

RING SET,PISTON

€ 62.50

14-2

1214045410050
ref: 14-2
OPT

RING SET,PISTON (OS:0.5)

€ 99.50

14-3

1214045410100
ref: 14-3
OPT

RING SET,PISTON (OS:1.0)

€ 89.00

15

1215144201
ref: 15

PIN,PISTON

€ 11.00

16

0938118002A
ref: 16

CIRCLIP,PISTON PIN

€ 1.50

all assemblies
