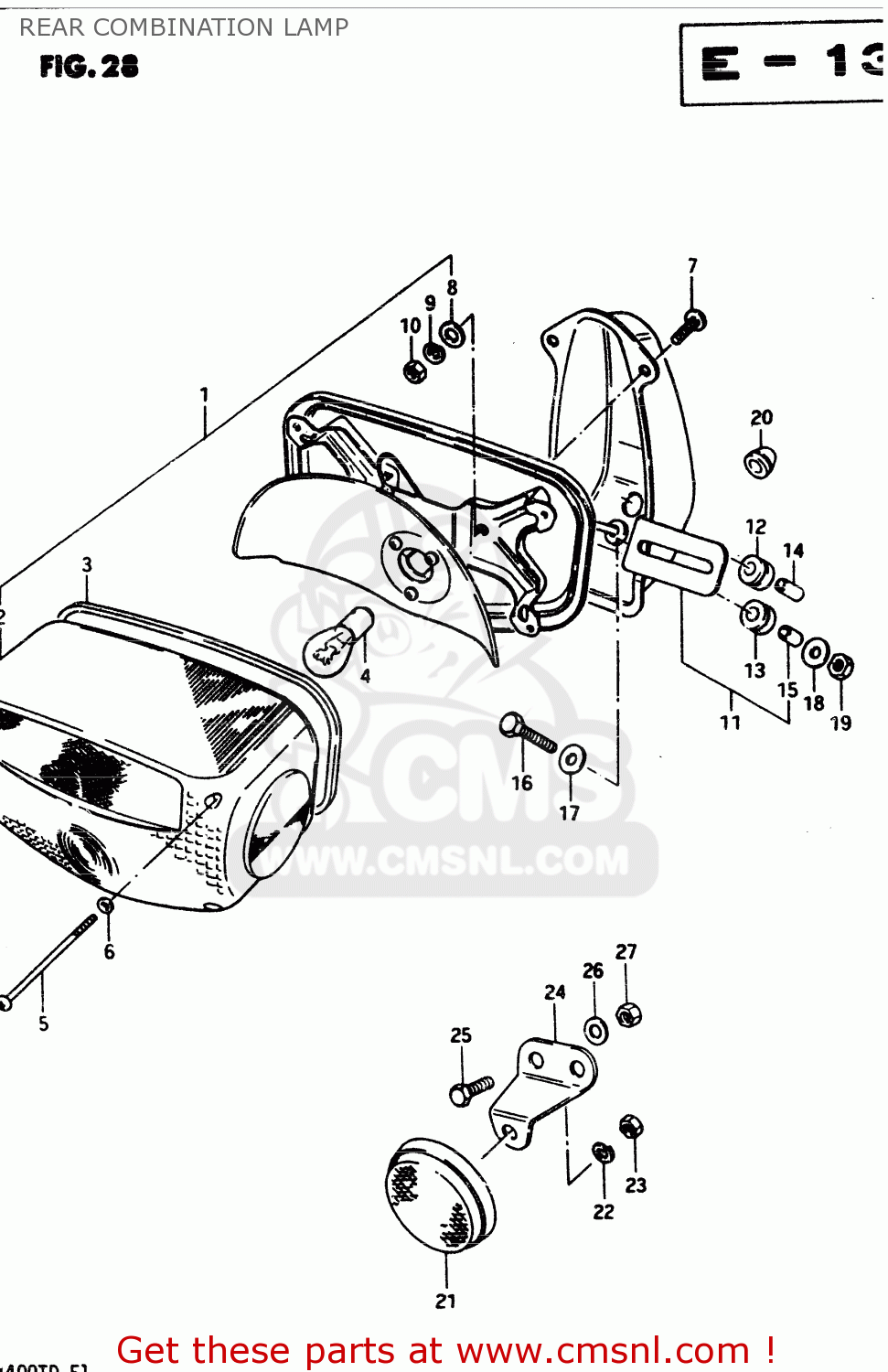

REAR COMBINATION LAMP

ref

part #

description

quantity

1-1

3572045210
ref: 1-1
E1

LAMP UNIT,REAR COMBINATION

€ 0.00

1-2

3572045221
ref: 1-2
E2,E21

LAMP UNIT, TAIL

€ 128.00

1-3

3572045271
ref: 1-3
E17

LAMP UNIT, REAR COMBINATION

€ 0.00

2-1

3571245013
ref: 2-1
E1

LENS

€ 63.00

2-2

3571245613
ref: 2-2
E2,E21

LENS

€ 68.00

2-3

3571245070
ref: 2-3
E17

LENS

€ 0.00

3

3571345010
ref: 3

GASKET (NAS)

€ 9.00

4-1

0947112038
ref: 4-1
E1

BULB (12V,23/8W)

€ 5.50

4-2

0947112046
ref: 4-2
E2,E17,E21 EXECUTED

BULB(12V21/5W)

€ 1.50

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0211206128
ref: 7

SCREW 6X12

€ 2.00

8

0832221068
ref: 8

WASHER

€ 2.00

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

0831011068
ref: 10

NUT

€ 2.50

11-1

3573044740
ref: 11-1
E1

BRACKET ASSY

€ 0.00

11-2

3573044720
ref: 11-2
E2,E17,E21

BRACKET ASSY

€ 42.00

12

3576522210
ref: 12

CUSHION

€ 4.00

13

3576511900
ref: 13

CUSHION,REAR COMBINATION LAMP

€ 0.00

14

3576637120
ref: 14

SPACER

€ 2.50

15

3576611900
ref: 15

SPACER,REAR COMBINATION LAMP

€ 0.00

16

0110706258
ref: 16

BOLT

€ 2.00

17

0916006027
ref: 17

WASHER (6.5X20X1.2)

€ 2.00

18

0832221068
ref: 18

WASHER

€ 2.00

19

0831011068
ref: 19

NUT

€ 2.50

20

0930807004
ref: 20

GROMMET

€ 2.50

21

3597049030
ref: 21
E17

REFLEX REFLECTOR,RR

€ 27.00

22

0832121058
ref: 22

LOCK WASHER

€ 2.00

23

0831011058
ref: 23

NUT

€ 2.50

24

3597444290
ref: 24
E17

BRACKET

€ 0.00

25

0110405108
ref: 25

BOLT

€ 1.50

26

0832221058
ref: 26

WASHER

€ 2.50

27

0831011058
ref: 27

NUT

€ 2.50
