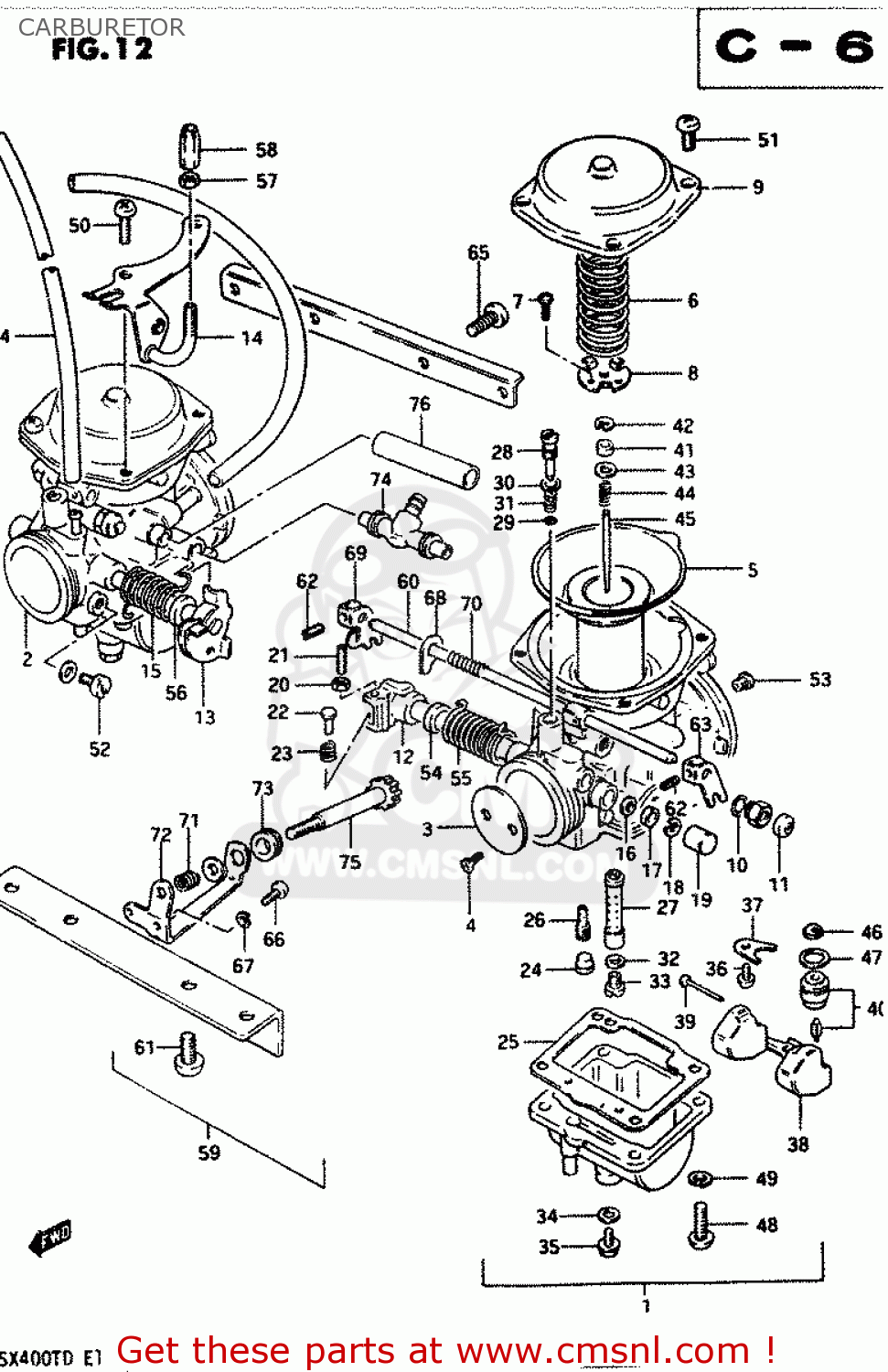

CARBURETOR

ref

part #

description

quantity

1-1

1320144250
ref: 1-1

CARBURETOR, LH

€ 0.00

1-2

1320144260
ref: 1-2
E22

CARBURETOR, LH

€ 0.00

2-1

1320244250
ref: 2-1

CARBURETOR, RH

€ 0.00

2-2

1320244260
ref: 2-2
E22

CARBURETOR, RH

€ 0.00

3

1355144010
ref: 3

VALVE,THROTTLE

€ 0.00

4

1360444080
ref: 4

SCREW

€ 3.50

5

1350044200
ref: 5

DIAPHRAGM,CARBURETOR

€ 196.50

6

1350344200
ref: 6

SPRING

€ 5.50

7

1360103078
ref: 7

SCREW

€ 2.00

8

1358144200
ref: 8

PLATE

€ 0.00

9

1350244230
ref: 9

COVER, DIAPHRAGM

€ 0.00

10

1327847090
ref: 10

O RING

€ 2.00

11

1368231210
ref: 11

CAP,STARTER VALVE

€ 5.00

12

1355044210
ref: 12
LH

SHAFT ASSEMBLY

€ 0.00

13

1355044220
ref: 13
RH

SHAFT,THROTTLE

€ 0.00

14

1362144500
ref: 14
RH

BRACKET

€ 11.50

15

1357344210
ref: 15
RH

SPRING

€ 0.00

16

1365151010
ref: 16

SEAL

€ 4.00

17

1355747070
ref: 17

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

18

1361744080
ref: 18

E RING

€ 3.50

19

1357847070
ref: 19

CAP

€ 5.50

20

1360747070
ref: 20
LH

NUT

€ 4.00

21

1360547080
ref: 21
LH

SCREW

€ 7.00

22

1356344110
ref: 22
LH

PIN,THROTTLE LEVER

€ 0.00

23

1326844110
ref: 23
LH

SPRING,THROTTLE SCREW

€ 0.00

24

1335744080
ref: 24

PLUG,NEEDLE JET

€ 4.50

25

1325144080
ref: 25

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

26

0949242010
ref: 26

JET,PILOT(42.5)

€ 8.50

27-1

0949400312
ref: 27-1

JET,NEEDLE(P-1)

€ 24.00

27-2

0949400304
ref: 27-2
E22

JET, NEEDLE (P-2)

€ 35.50

28

1327947080
ref: 28

SCREW,PILOT AIR

€ 11.50

29

1327844080
ref: 29

O-RING

€ 4.00

30

1327744080
ref: 30

GASKET

€ 2.00

31

1326847070
ref: 31

SPRING

€ 5.00

32

1333244080
ref: 32

WASHER,NEEDLE NOZZLE

€ 2.50

33

0949123004
ref: 33

JET

€ 11.00

34

1324644080
ref: 34

GASKET (NAS)

€ 3.50

35

1324744080
ref: 35

PLUG,DRAIN

€ 9.50

36

0211204068
ref: 36

SCREW 4X6

€ 2.00

37

1337311400
ref: 37

PLATE,NEEDLE VALVE FITING

€ 7.00

38

1325044080
ref: 38

FLOAT

€ 31.00

39

1325492311
ref: 39

PIN,FLOAT

€ 2.00

40

1337011400
ref: 40

VALVE ASSEMBLY,NEEDLE

€ 40.50

41

1338747010
ref: 41

RING

€ 7.50

42

1339410010
ref: 42

CLIP

€ 4.50

43

1325420010
ref: 43

PIN,FLOAT

€ 3.00

44

1338847010
ref: 44

SPRING

€ 7.00

45

1338344200
ref: 45

NEEDLE,JET

€ 16.00

46

1337665010
ref: 46

FILTER

€ 6.50

47

1337444080
ref: 47

O-RING,NEEDLE VALVE

€ 6.00

48

0211205168
ref: 48

SCREW

€ 2.50

49

0832121058
ref: 49

LOCK WASHER

€ 2.00

50

0211205108
ref: 50
RH

SCREW

€ 2.00

51

0211205088
ref: 51
LH:4,RH:2

SCREW

€ 2.00

52

1360545410
ref: 52
RH

SCREW

€ 8.00

53-1

0949325001
ref: 53-1

JET,AIR(125)

€ 11.50

53-2

0949326005
ref: 53-2
E22

JET

€ 11.50

54

1338744200
ref: 54
LH

SPACER,THROTTLE SHAFT

€ 0.00

55

1357344200
ref: 55
LH

SPRING

€ 0.00

56

1338744210
ref: 56
RH

SPACER,THROTTLE SHAFT

€ 0.00

57

1366103010
ref: 57

NUT

€ 3.50

58

1357798010
ref: 58

ADJUSTER

€ 0.00

59

1321044250
ref: 59

FLANCE ASSY

€ 0.00

60

1341044500
ref: 60

SHAFT,STARTER

€ 0.00

61

0211206128
ref: 61

SCREW 6X12

€ 2.00

62

1360547070
ref: 62

SCREW

€ 5.50

63

1342244080
ref: 63

LEVER

€ 10.00

64

1368702500
ref: 64

HOSE

€ 14.00

65

0211205128
ref: 65

SCREW

€ 2.50

66

0211205088
ref: 66

SCREW

€ 2.00

67

0832121058
ref: 67

LOCK WASHER

€ 2.00

68

1342144460
ref: 68

PLATE

€ 0.00

69

1342244500
ref: 69

LEVER,STARTER

€ 16.00

70

1343744500
ref: 70

SPRING,STARTER

€ 0.00

71

1327144220
ref: 71

SPRING,THROTTLE ADJUST

€ 3.50

72

1362144210
ref: 72

BRACKET,THROTTLE ADJUST

€ 0.00

73

1368116600
ref: 73

CAP,RUBBER

€ 7.00

74

1368511400
ref: 74

NIPPLE,CARBURETOR

€ 19.50

75

1326747070
ref: 75

SCREW

€ 21.00

76

1368744500
ref: 76

HOSE

€ 13.00
