REAR COMBINATION LAMP (E22, E25)

GSX400T 1983 (D) GENERAL EXPORT (E01)

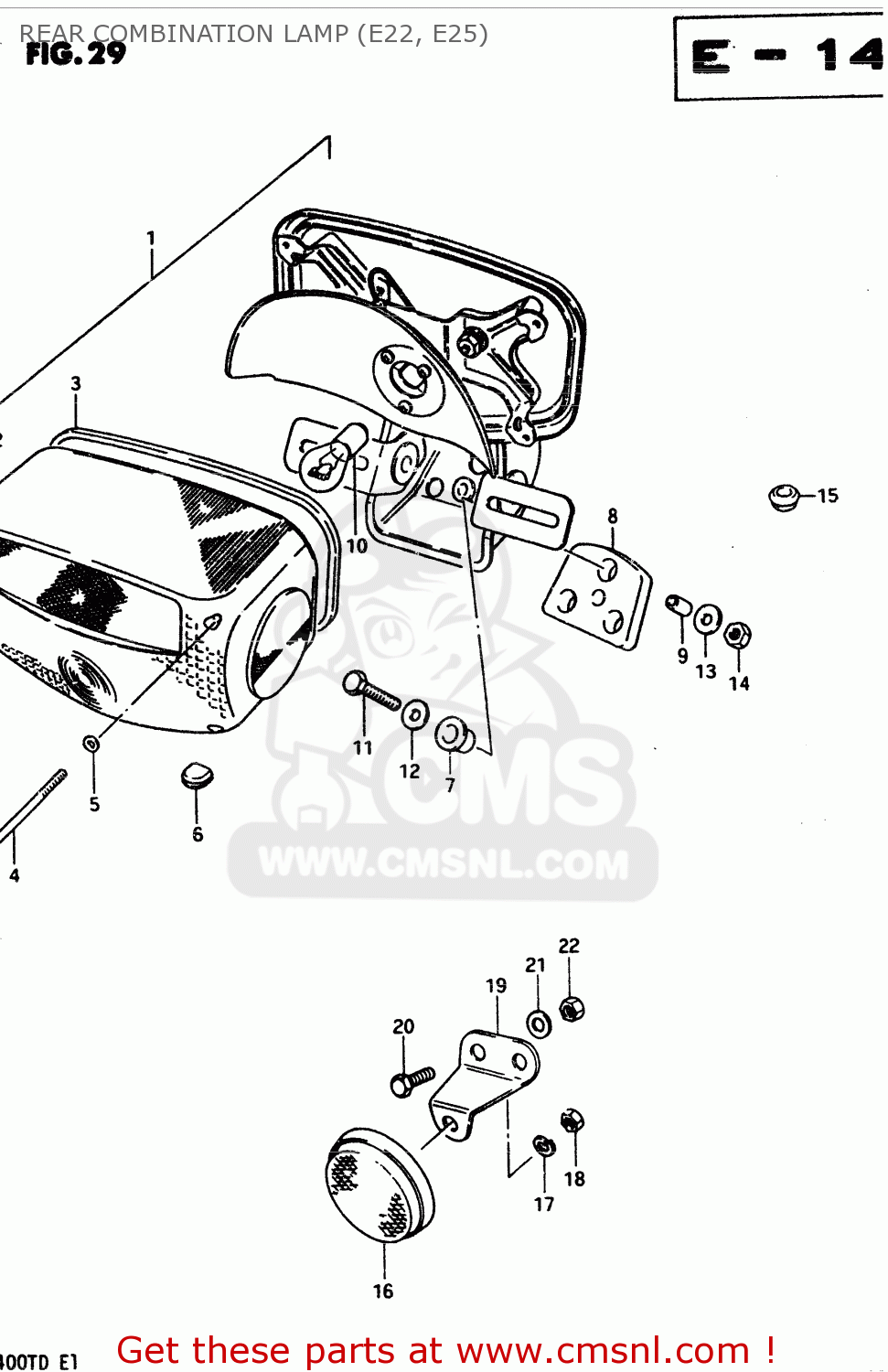

Rear combination lamp (e22, e25) diagram GSX400T 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

3571047291999
ref: 1

LAMP ASSY,RR C

€ 223.50

3571245631
ref: 2

LENS,RR COMBIN

€ 41.00

3571345010
ref: 3

GASKET (NAS)

€ 9.00

0912504002
ref: 4

SCREW (4X55)

€ 1.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

3572845630
ref: 6

GROMMET

€ 0.00

3576447290
ref: 7

CUSHION

€ 2.00

3576547290
ref: 8

CUSHION

€ 0.00

3576637120
ref: 9

SPACER

€ 2.50

0947112046
ref: 10
EXECUTED LOCALLY

BULB(12V21/5W)

€ 1.50

0110706258
ref: 11

BOLT

€ 2.00

0916006027
ref: 12

WASHER (6.5X20X1.2)

€ 2.00

0832221068
ref: 13

WASHER

€ 2.00

0831011068
ref: 14

NUT

€ 2.50

0930807004
ref: 15

GROMMET

€ 2.50

3597049030
ref: 16

REFLEX REFLECTOR,RR

€ 27.00

0832121058
ref: 17

LOCK WASHER

€ 2.00

0831011058
ref: 18

NUT

€ 2.50

3597444290
ref: 19

BRACKET

€ 0.00

0110405108
ref: 20

BOLT

€ 1.50

0832221058
ref: 21

WASHER

€ 2.50

0831011058
ref: 22

NUT

€ 2.50
