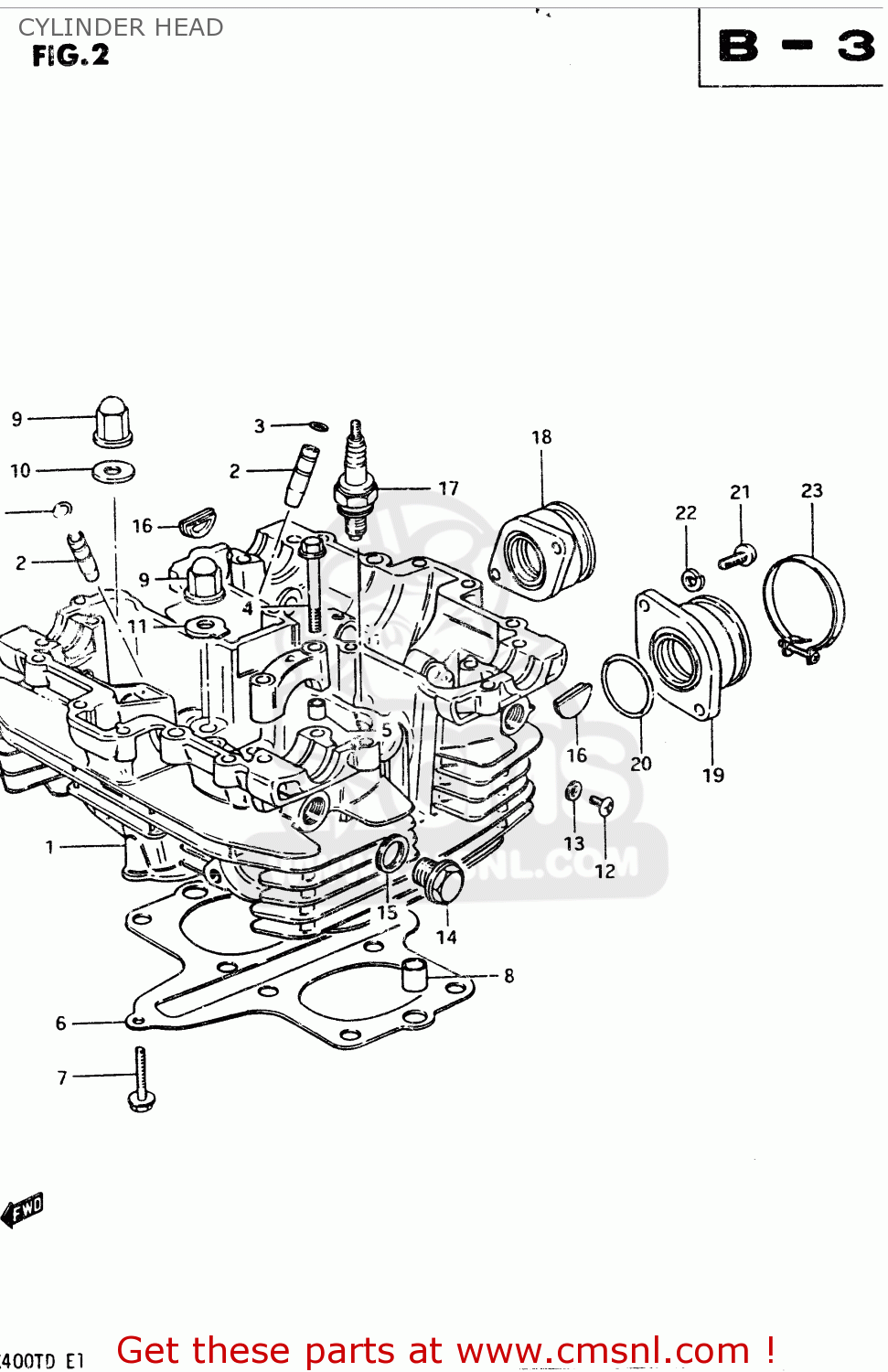

CYLINDER HEAD

ref

part #

description

quantity

1

1110044210
ref: 1

CYLINDER HEAD SET

€ 762.50

2

1111549290
ref: 2

GUIDE,INTAKE VALVE

€ 19.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0910306026
ref: 4

BOLT(6X39)

€ 2.00

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

1114144200
ref: 6

GASKET (MCA)

€ 117.00

7

0151706308
ref: 7

BOLT

€ 2.00

8

0421111189
ref: 8

PIN

€ 2.00

9

0915910026
ref: 9

NUT

€ 6.00

10

0916810017
ref: 10

GASKET(10.5X22X2) (NAS)

€ 3.50

11

0916810018
ref: 11

GASKET(10X22X2.3) (NAS)

€ 3.00

12

0211205088
ref: 12

SCREW

€ 2.00

13

0916805010
ref: 13

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

14

0924714012
ref: 14

PLUG (14X12)

€ 3.50

15

0916814004
ref: 15

GASKET(14X19.2X2) (NAS)

€ 2.50

16

0924123002
ref: 16

PLUG

€ 8.50

17-1

0948200144
ref: 17-1

SPARK PLUG D8EA

€ 3.50

17-2

0948200145
ref: 17-2

SPARK PLUG X24ES-U

€ 3.50

17-3

0948200149
ref: 17-3
E2,E17,E21,E22

SPARK PLUG DR8ES-L

€ 3.50

17-4

0948200223
ref: 17-4
E2,E17,E21,E22

PLUG,SPARK(X24ESR-U)

€ 3.50

18

1311044200
ref: 18

PIPE,INTAKE,R

€ 30.50

19

1312044200
ref: 19

PIPE,INTAKE,L

€ 29.00

20

0928034002
ref: 20

O-RING

€ 3.50

21

0211206208
ref: 21

SCREW

€ 2.00

22

0832121068
ref: 22

LOCK WASHER

€ 2.50

23

0940254303
ref: 23

CLAMP

€ 4.00

all assemblies
