Buy Suzuki GSX Parts Online


BATTERY

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

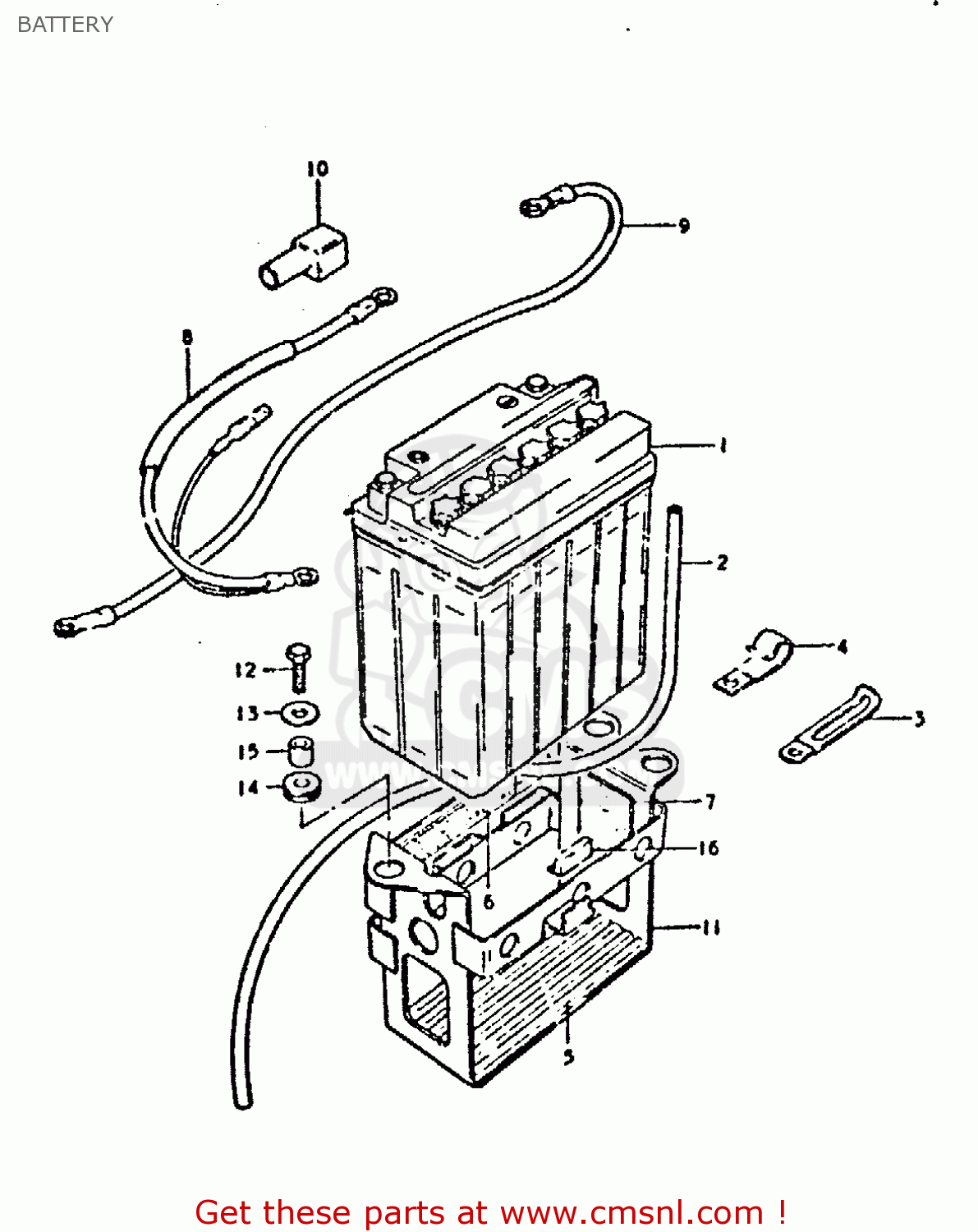

Battery diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

BATTERY GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
BATTERY GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
BATTERY GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
3361049210
ref: 1
BATTERY ASSY (12V)
€ 110.00
2
3368049000
ref: 2
HOSE,BATTERY EXHAUST
3368049000
€ 7.00
3
0940406401
ref: 3
CLAMP L:35
0940406401
€ 2.50
4
0940309303
ref: 4
CLAMP
€ 5.50
5
3365131000
ref: 5
PROTECTOR,BATTERY
3365131000
€ 29.00
6
3365249000
ref: 6
PROTECTOR(20X90)X4
3365249000
€ 2.00
7
3365208410
ref: 7
TO 33651-37000 CUT A
PROTECTOR,BATTERY
€ 5.00
8
3382049000
ref: 8
WIRE,BATTERY PLUS
3382049000
€ 16.00
9
3385003201
ref: 9
LEAD WIRE,BATTERY(-)
3385003201
€ 8.50
10
3362445000
ref: 10
CAP,TERMINAL
3362445000
€ 5.50
11
4154049200
ref: 11
HOLDER,BATTERY
€ 49.00
12
0110706168
ref: 12
BOLT, UPPER
€ 3.00
13
0916006020
ref: 13
WASHER
0916006020
€ 2.00
14
0932008007
ref: 14
CUSHION
0932008007
€ 4.00
15
0918006038
ref: 15
SPACER(6.1X9X7.5)
0918006038
€ 2.00
16
4711702400
ref: 16
CUSHION,FRAME COVER
4711702400
€ 2.00
