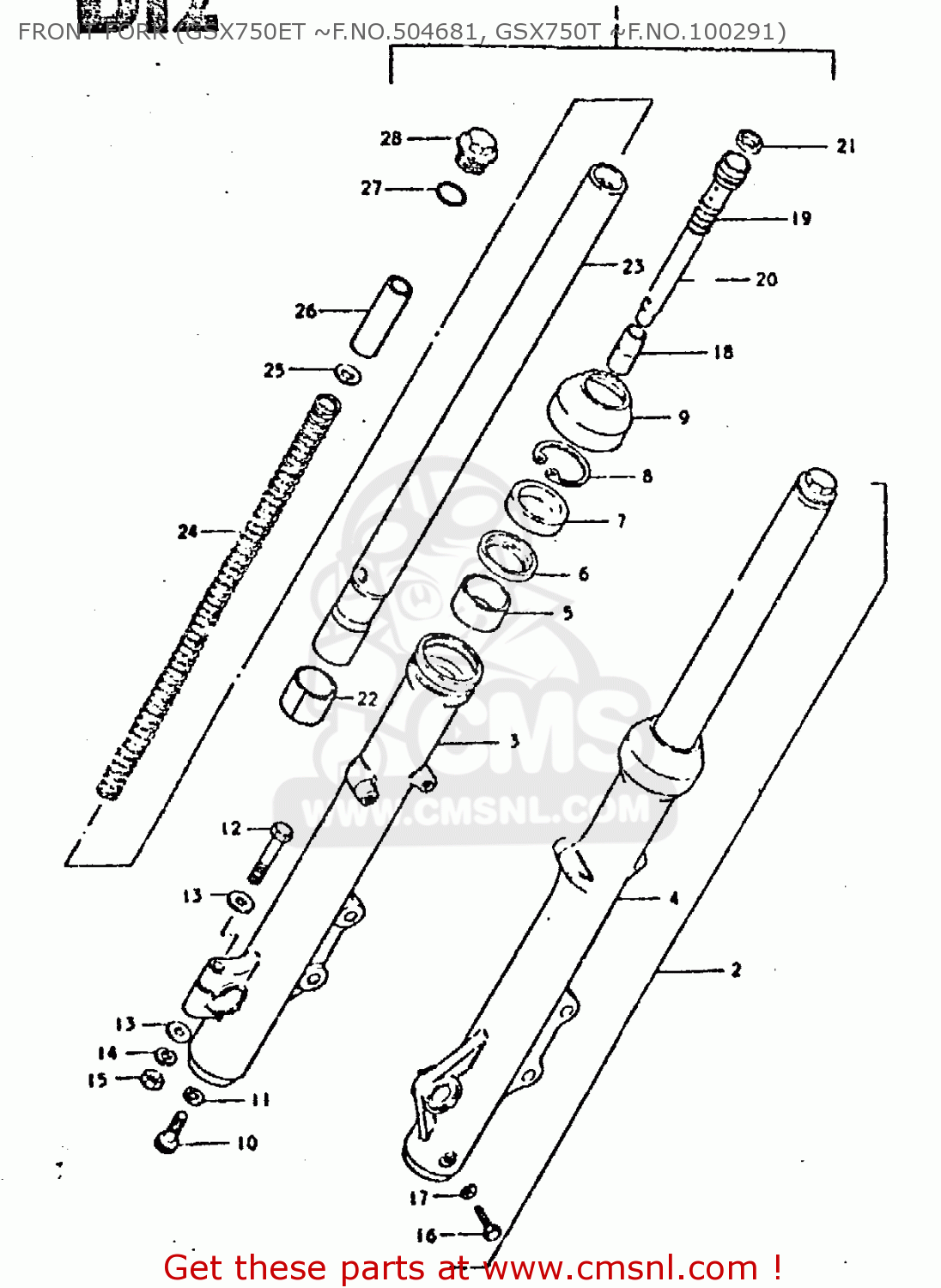

FRONT FORK (GSX750ET ~F.NO.504681, GSX750T ~F.NO.100291)

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

Front fork (gsx750et ~f.no.504681, gsx750t ~f.no.100291) diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

5110345410
ref: 1

DAMPER ASSY, RH

€ 0.00

5110445410
ref: 2

DAMPER ASSY, LH

€ 0.00

5113045400
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 0.00

5114045400
ref: 4

TUBE,FORK,LEFT,OUTER

€ 122.00

5115245400
ref: 5

BUSH,GUIDE

€ 14.00

5116845031
ref: 6

SPACER,SEAL

€ 5.00

5115345030
ref: 7

OIL SEAL,FRONT FORK

€ 14.00

5115631231
ref: 8

CIRCLIP,FORK OIL SEAL

€ 3.50

5157131232
ref: 9

BOOT

€ 19.50

5114748130
ref: 10

BOLT(8X27)

€ 3.50

5114831030
ref: 11

GASKET (NAS)

€ 4.00

0110708508
ref: 12

BOLT 8X50

€ 3.00

0832221088
ref: 13

WASHER

€ 2.00

0832121088
ref: 14

LOCK WASHER

€ 2.00

0831012088
ref: 15

NUT

€ 2.00

0910006011
ref: 16

BOLT(6X8)

€ 2.50

5118331030
ref: 17

GASKET,DRAIN,PLUG (NAS)

€ 4.00

5119545030
ref: 18

PIECE,OIL LOCK

€ 16.00

5117745030
ref: 19

SPRING,FORK REBOUND

€ 4.00

5114645410
ref: 20

CYLINDER

€ 0.00

5119621230
ref: 21

RING, PISTON

€ 0.00

5112145400
ref: 22

PISTON

€ 22.00

5111045400
ref: 23

TUBE,FORK,INNER

€ 196.00

24-1

5117145410
ref: 24-1

SPRING (L:557.8)

€ 40.00

24-2

5117145730
ref: 24-2

SPRING

€ 40.00

5119247200
ref: 25

WASHER,SPRING

€ 2.50

26-1

5117645410
ref: 26-1

SPACER (L:50)

€ 3.50

26-2

5117645411
ref: 26-2

SPACER (L:74.4)

€ 3.50

5111731030
ref: 27

O-RING

€ 3.50

5135131030
ref: 28

CAP,INNER TUBE

€ 34.50
