CHAIN CASE - SHOCK ABSORBER

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

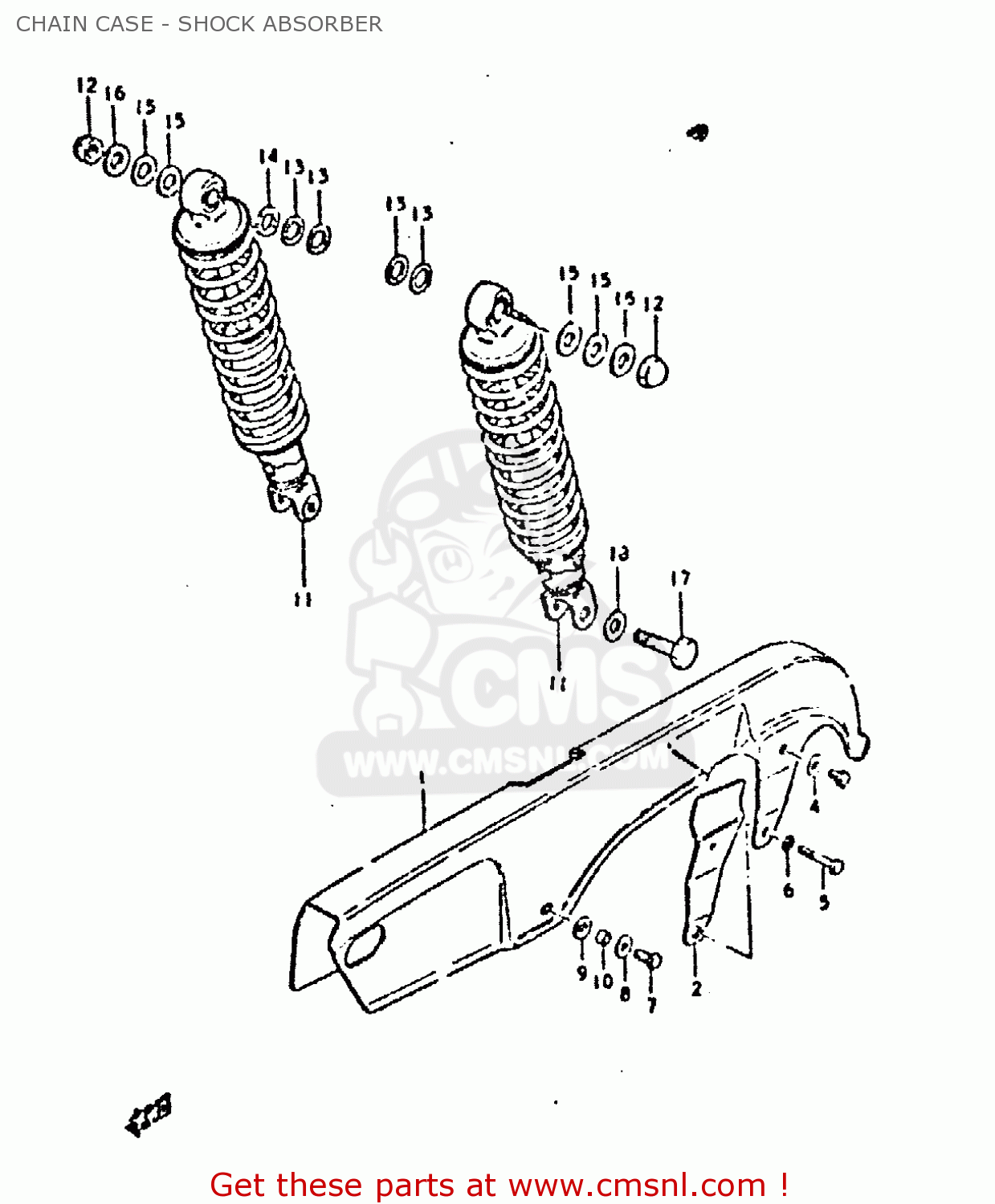

Chain case - shock absorber diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1-1

6131149001019
ref: 1-1
TO 61311-49002-019 M

CASE,CHAIN

€ 121.00

1-2

6131149002019
ref: 1-2
MODEL T, F.NO.102456

CASE,CHAIN

€ 121.00

6138145000
ref: 2

REINFORCEMENT,CHAIN CASE

€ 42.00

0910006011
ref: 3

BOLT(6X8)

€ 2.50

0916906010
ref: 4

WASHER

€ 3.00

0110706258
ref: 5

BOLT

€ 2.00

0832121068
ref: 6

LOCK WASHER

€ 2.50

0110706108
ref: 7

BOLT

€ 2.00

0916006028
ref: 8

WASHER(6.5X18X1)

€ 1.50

0932008005
ref: 9

CUSHION

€ 2.00

0918006032
ref: 10

SPACER (6.1X8X5.2)

€ 2.50

11-1

NOTUSED
ref: 11-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11-2

6210045430
ref: 11-2
MODEL X

SHOCK ABSORBER, REAR

€ 226.50

11-3

6210045732
ref: 11-3
* 1 MODEL T

ABSORBER ASSEMBLY,REAR SHOCK

€ 233.50

11-4

6210045410
ref: 11-4
* 2 MODEL T

ABSORBER ASSY,RR SHOCK

€ 233.50

0831311108
ref: 12

NUT, LOWER LH

€ 2.50

0832211128
ref: 13

WASHER

€ 2.00

0916012012
ref: 14

WASHER (12.5X24X3.2)

€ 2.50

0916010001
ref: 15

WASHER

€ 2.00

0916010033
ref: 16

WASHER(10.5X24X3.2)

€ 2.00

0910410002
ref: 17

BOLT(10X36)

€ 4.50

0832211108
ref: 18

WASHER

€ 2.50
