FRONT FORK (GSX750EX, GSX750X)

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

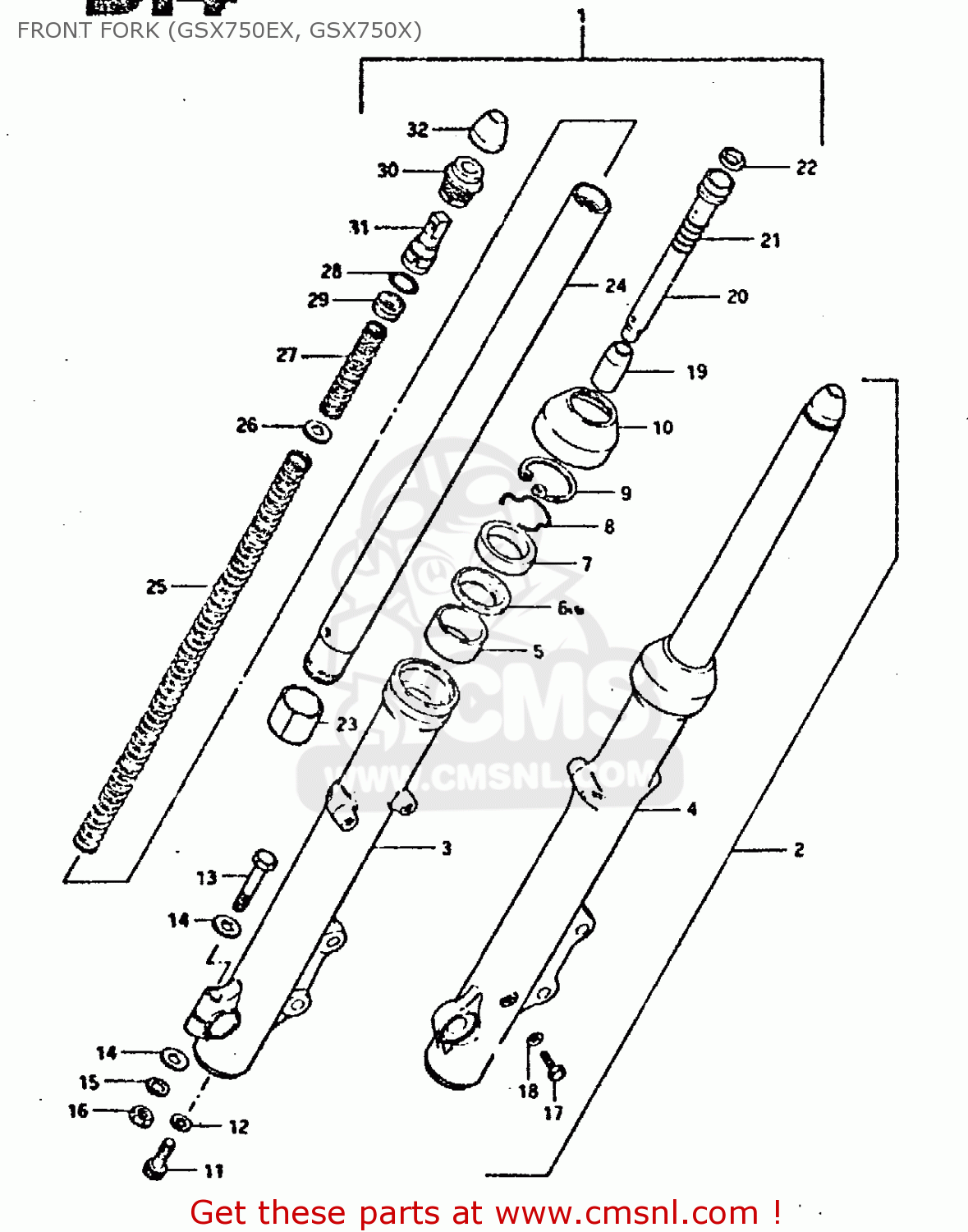

Front fork (gsx750ex, gsx750x) diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

FRONT FORK (GSX750EX, GSX750X) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
FRONT FORK (GSX750EX, GSX750X) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
FRONT FORK (GSX750EX, GSX750X) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
5110345450
ref: 1
DAMPER ASSY, RH
€ 0.00
2
5110445450
ref: 2
DAMPER ASSY, LH
€ 0.00
3
5113045440
ref: 3
TUBE,FORK,OUTER,RIGHT
5113045440
€ 188.50
4
5114045440
ref: 4
TUBE,FORK,LEFT,OUTER
€ 0.00
5
5115245400
ref: 5
BUSH,GUIDE
5115245400
€ 14.00
6
5116845031
ref: 6
SPACER,SEAL
5116845031
€ 5.00
7
5115334200
ref: 7
OIL SEAL,FRONT FORK
5115334200
€ 14.00
8
5115845440
ref: 8
RING,FR FORK
5115845440
€ 3.00
9
5115645440
ref: 9
CIRCLIP,FORK OIL SEAL
€ 3.50
10
5157134200
ref: 10
BOOT
5157134200
€ 19.50
11
5114748130
ref: 11
BOLT(8X27)
5114748130
€ 3.50
12
5114831030
ref: 12
GASKET (NAS)
5114831030
€ 4.00
13
0110708508
ref: 13
BOLT 8X50
€ 3.00
14
0832221088
ref: 14
WASHER
0832221088
€ 2.00
15
0832121088
ref: 15
LOCK WASHER
0832121088
€ 2.00
16
0831012088
ref: 16
NUT
0831012088
€ 2.00
17
0910006011
ref: 17
BOLT(6X8)
0910006011
€ 2.50
18
5118331030
ref: 18
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
19
5119545030
ref: 19
PIECE,OIL LOCK
5119545030
€ 16.00
20
5114645450
ref: 20
CYLINDER
€ 0.00
21
5117745030
ref: 21
SPRING,FORK REBOUND
5117745030
€ 4.00
22
5119631230
ref: 22
RING
5119631230
€ 7.50
23
5112145400
ref: 23
PISTON
5112145400
€ 22.00
24
5111045450
ref: 24
INNER, TUBE
5111045450
€ 184.00
25
5118445450
ref: 25
SPRING B
€ 0.00
26
5119247200
ref: 26
WASHER,SPRING
5119247200
€ 2.50
27
5117145450
ref: 27
SPRING A
€ 0.00
28
5111731030
ref: 28
O-RING
€ 3.50
29
5117245450
ref: 29
SEAT, SPRING
€ 6.00
30
5135145450
ref: 30
BOLT
€ 24.50
31
5118545450
ref: 31
ADJUSTER, SPRING
5118545450
€ 22.00
32
5118945450
ref: 32
CAP
5118945450
€ 7.00
