SEAT TAIL COVER (MODEL T)

GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

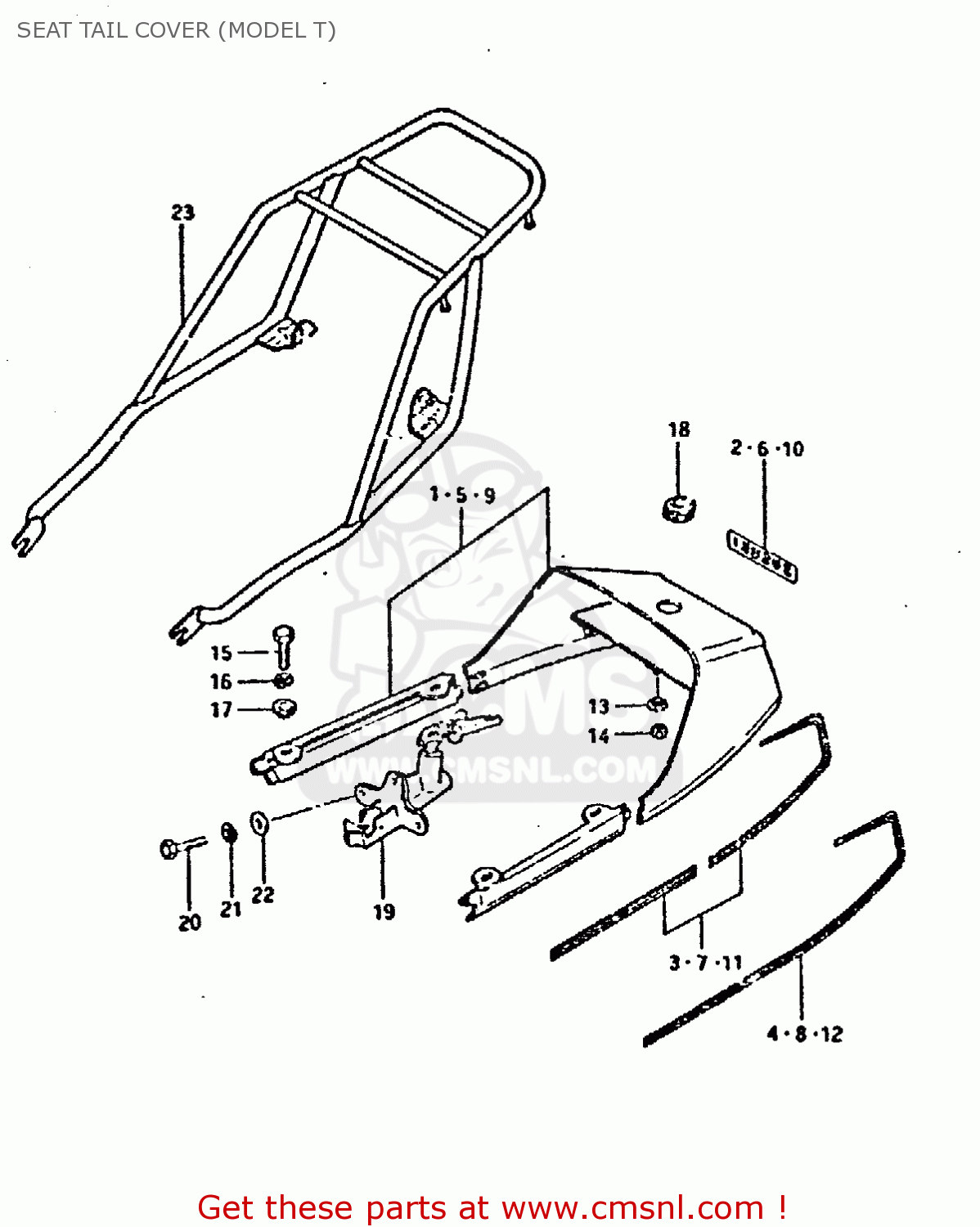

Seat tail cover (model t) diagram GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39

SEAT TAIL COVER (MODEL T) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
SEAT TAIL COVER (MODEL T) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
SEAT TAIL COVER (MODEL T) GSX750E 1980 (T) (01 02 04 6 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
455014983108E
ref: 1
FROM 45500-49610-08E
COVER SET, SEAT TAIL (BLACK)
€ 149.50
2
6816649200998
ref: 2
EMBLEM (GOLD/BLACK)
6816649200998
€ 3.00
3
681024985171P
ref: 3
TAPE SET
€ 37.50
4
681604920071P
ref: 4
FOR 45500-49810-03F
TAPE SET
€ 37.50
5
455014984107P
ref: 5
FROM 45500-49810-07P
COVER SET, SEAT TAIL (RED)
€ 149.50
6
6816649200998
ref: 6
EMBLEM (GOLD/BLACK)
6816649200998
€ 3.00
7
681024985160T
ref: 7
TAPE SET
€ 0.00
8
681604920060T
ref: 8
FOR 45500-49840-07P
TAPE SET
€ 0.00
9
455014981104Y
ref: 9
FROM 45500-49200-04Y
COVER SET, SEAT TAIL (BLUE)
€ 149.50
10
6816649200998
ref: 10
EMBLEM (GOLD/BLACK)
6816649200998
€ 3.00
11
681024985165Y
ref: 11
TAPE SET
€ 0.00
12
681604920065Y
ref: 12
FOR 45500-49200-04Y
TAPE SET
€ 0.00
13
0916906016
ref: 13
WASHER
0916906016
€ 1.50
14
0831921068
ref: 14
NUT 6MM
0831921068
€ 2.00
15
0110706128
ref: 15
BOLT
0110706128
€ 2.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
0916906016
ref: 17
WASHER
0916906016
€ 1.50
18
4552249200
ref: 18
GROMMET,SEAT LOCK HOLE
4552249200
€ 5.50
19
9570049820
ref: 19
LOCK SET
€ 81.50
20
0110706128
ref: 20
BOLT
0110706128
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
22
0832211068
ref: 22
WASHER 6MM
€ 2.00
23
4631045400
ref: 23
OPT
CARRIER
€ 67.00
